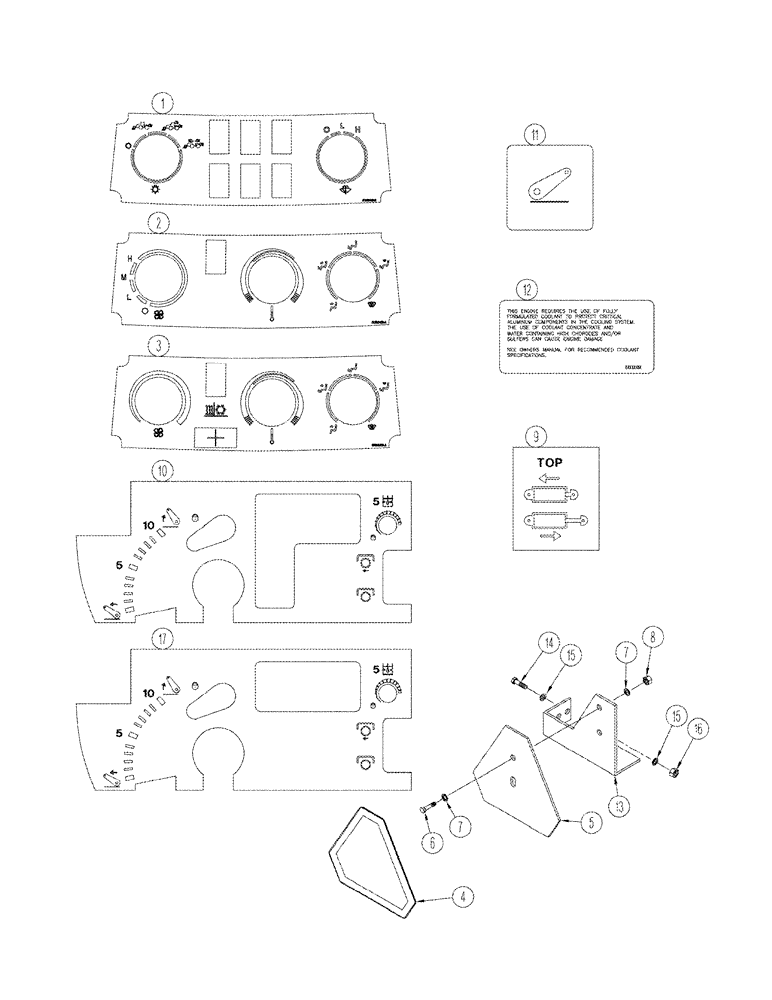

Запчасти Case IH STX440 (09-59) - DECALS (09) - CHASSIS/ATTACHMENTS

1

308645A3

DECAL

light panel

1шт.

2

308646A4

DECAL

climate control, standard cab

1шт.

3

308647A4

DECAL

automatic temperature control, deluxe cab, luxury cab

1шт.

311860A1

EMBLEM

slow moving vehicle, consists of: Ref. 4 and 5

1шт.

4

311858A1

DECAL

SMV emblem

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE

1шт.

6

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

2шт.

7

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

2шт.

8

425-104

NUT,1/4"-20, Cl 5

2шт.

9

389794A1

DECAL

hydraulic coupler

1шт.

10

375194A1

DECAL

right-hand, with three-point hitch

1шт.

11

393821A1

DECAL

three-point hitch

1шт.

12

399083A1

DECAL

coolant

1шт.

13

398763A1

BRACKET

1шт.

14

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

17

348370A1

DECAL

right-hand, without three-point hitch

1шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
