Запчасти Case IH STX440 (09-27) - SEAT SUSPENSION (09) - CHASSIS/ATTACHMENTS

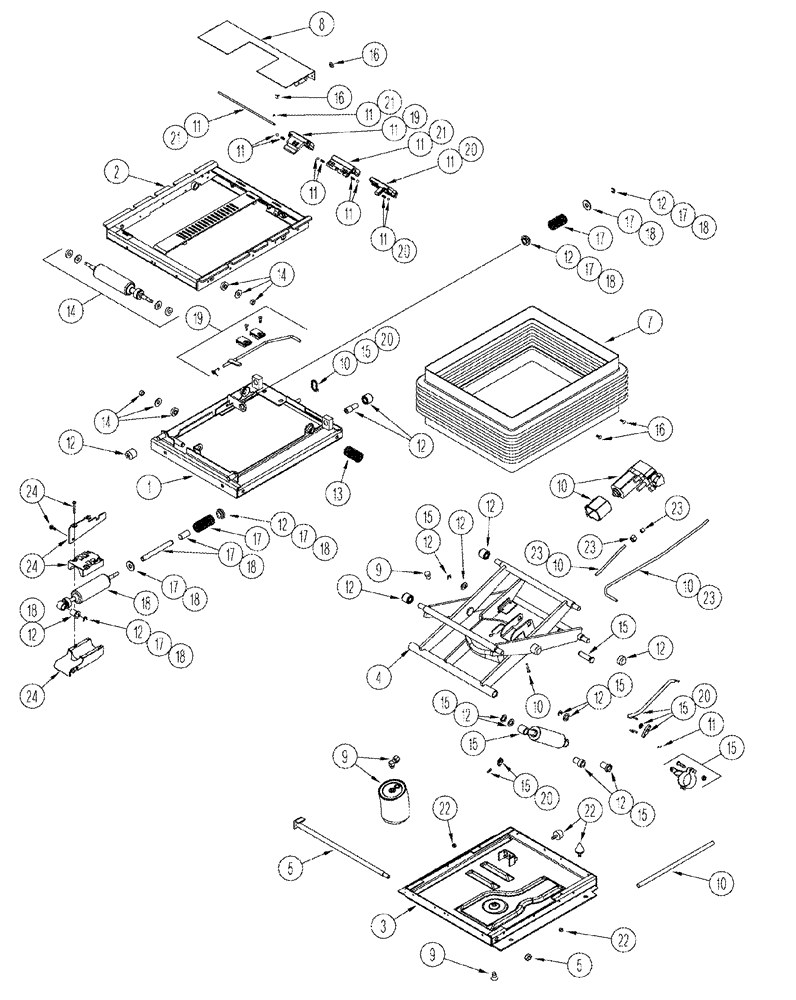

Схема запчастей Case IH STX440 - (09-27) - SEAT SUSPENSION (09) - CHASSIS/ATTACHMENTS
12
12
17
14
5
12
2
21
23
12
9
24
22
12
10
12
11
18
12
11
10
12
18
22
9
21
15
17
18
11
23
11
22
11
8
14
24
12
12
12
23
17
18
20
21
16
15
4
5
15
15
17
20
12
11
10
12
15
15
16
11
11
11
10
24
19
20
17
20
23
16
3
17
12
17
19
18
15
18
15
13
1
10
12
18
18
15
17
18
10
7
11
20
9
15
14
17

Артикул

Название

Примечание

Количество

374353A2

PACKAGE,SERVICE

Includes: Ref. 1 - 24

1шт.

1

333273A1

HOUSING

upper

1шт.

2

333274A1

ISOLATOR

1шт.

3

333275A1

HOUSING

lower

1шт.

4

333276A1

ARM

1шт.

5

302033A1

SHAFT

1шт.

6

373491A1

KIT

1шт.

7

333278A1

BOOT

1шт.

8

302029A2

PLATE

1шт.

9

333279A1

PACKAGE,SERVICE

SPRING air

1шт.

10

333280A1

PACKAGE,SERVICE

COMPRESSOR air

1шт.

11

373469A1

PACKAGE,SERVICE

KNOB suspension

1шт.

12

333283A2

KIT

BEARING AND ROLLERS suspension

1шт.

13

333284A1

PACKAGE,SERVICE

SPRING lateral isolator

1шт.

14

333285A1

PACKAGE,SERVICE

SHOCK ABSORBER lateral isolator

1шт.

15

333286A1

PACKAGE,SERVICE

SHOCK ABSORBER suspension

1шт.

16

333659A1

PACKAGE,SERVICE

PIN boot

1шт.

17

333287A2

SPRING KIT

SPRING fore and aft isolator

1шт.

18

333288A2

PACKAGE,SERVICE

SHOCK ABSORBER fore and aft

1шт.

19

373470A2

KIT

CONTROL fore and aft isolator

1шт.

20

373472A1

PACKAGE,SERVICE

CONTROL suspension shock absorber

1шт.

21

373473A1

PACKAGE,SERVICE

CONTROL lateral isolator

1шт.

22

333295A1

BUMPER

BUMPER suspension

1шт.

23

333660A1

PACKAGE,SERVICE

TUBE AND FITTING

1шт.

24

333296A1

SERVICE KIT

BLOCK fore and aft isolator shock

1шт.

Выбрано товаров: 25
