Запчасти Case IH STX440 (09-26) - SEAT CUSHION ASSEMBLY (09) - CHASSIS/ATTACHMENTS

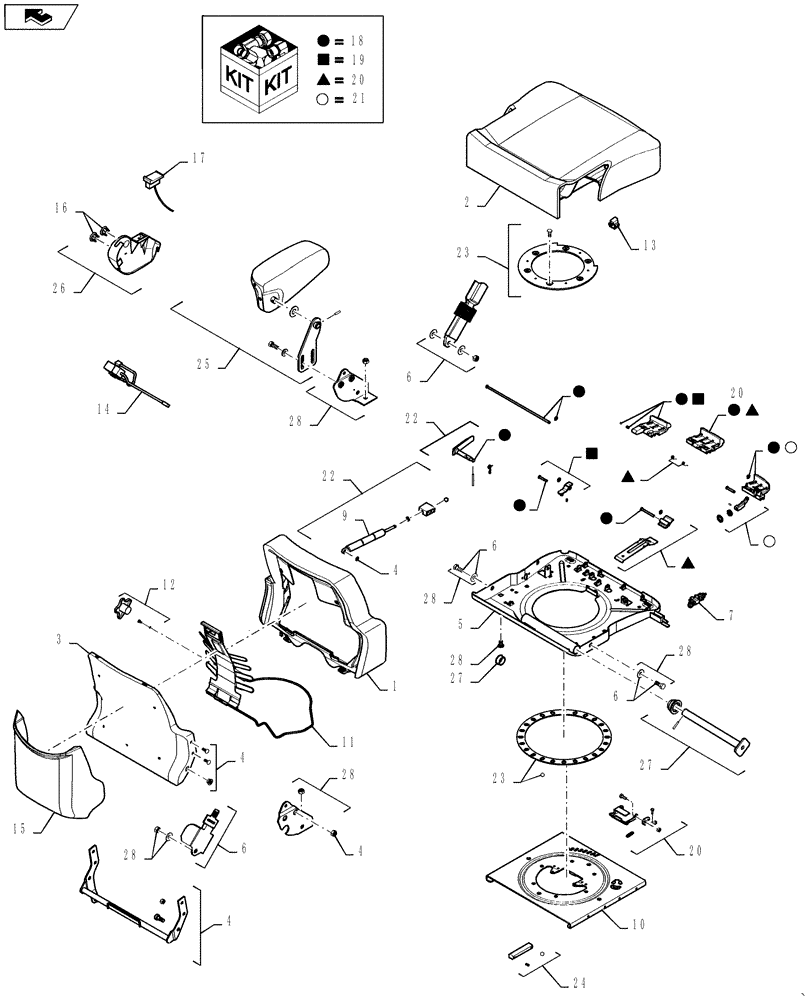

Схема запчастей Case IH STX440 - (09-26) - SEAT CUSHION ASSEMBLY (09) - CHASSIS/ATTACHMENTS
21
24
2
28
19
18
18
25
20
28
10
17
4
4
20
23
15
6
7
27
28
6
4
5
19
6
21
28
3
4
home
12
18
18
20
23
18
19
14
21
20
21
18
9
26
19
1
22
20
18
11
18
27
16
28
13
20
6
22
18
20
28

Артикул

Название

Примечание

Количество

360319A1

CUSHION ASSY.

cloth, without heat, standard cab, consists of: Ref. 1 - 28

1шт.

397525A1

CUSHION ASSY.

cloth, heated, deluxe cab, Includes: Ref. 1 - 28

1шт.

360321A2

CUSHION ASSY.

leather, heated, luxury cab, Includes: Ref. 1 - 15, 17 - 28

1шт.

1

360329A1

BACKREST

standard cab

1шт.

1

397528A1

BACKREST

deluxe cab

1шт.

1

360327A1

BACKREST

luxury cab

1шт.

2

360328A2

CUSHION ASSY.

cloth, without heat, standard cab

1шт.

2

397527A1

CUSHION ASSY.

cloth, heated, deluxe cab

1шт.

2

360326A1

CUSHION ASSY.

leather, heated, luxury cab

1шт.

3

302005A1

PANEL

backrest, standard cab, deluxe cab

1шт.

3

375198A1

BACKREST

luxury cab

1шт.

4

359959A1

TUBE

torque

1шт.

5

375224A1

PAN

1шт.

6

333657A2

KIT

seat

1шт.

7

1981852C3

SWITCH

air control

1шт.

9

302004A2

GAS STRUT

gas strut

1шт.

10

302001A1

PLATE

swivel

1шт.

11

333104A2

KIT

lumbar, Includes: Ref. 12

1шт.

12

374387A1

KNOB

LUMBAR

1шт.

13

333107A1

SWITCH

operators presence

1шт.

14

302011A1

HARNESS

temperature

1шт.

15

333108A1

PACKAGE,SERVICE

BACKREST standard cab, deluxe cab

1шт.

15

374388A1

PACKAGE,SERVICE

BACKREST luxury cab

1шт.

16

375200A1

PLUG

switch opening

1шт.

17

304652A1

SWITCH

heater control

1шт.

18

373463A1

PACKAGE,SERVICE

KNOB seat, standard cab, deluxe cab

1шт.

19

373464A1

PACKAGE,SERVICE

CONTROL swivel

1шт.

20

373465A1

PACKAGE,SERVICE

CONTROL slide

1шт.

21

373466A1

KIT

CONTROL height

1шт.

22

373467A2

PACKAGE,SERVICE

CONTROL recliner

1шт.

23

391414A1

PACKAGE,SERVICE

SWIVEL

1шт.

24

302016A1

PACKAGE,SERVICE

PUCKS slide

1шт.

25

361044A1

ARMREST

ARMREST cloth, left-hand, standard cab, deluxe cab

1шт.

25

373468A1

PACKAGE,SERVICE

ARMREST leather, left-hand, luxury cab

1шт.

26

374386A1

PACKAGE,SERVICE

COVER heater switch

1шт.

27

359951A1

KIT

MOUNT console

1шт.

28

359950A1

PACKAGE,SERVICE

BRACKETS side

1шт.

Выбрано товаров: 37
