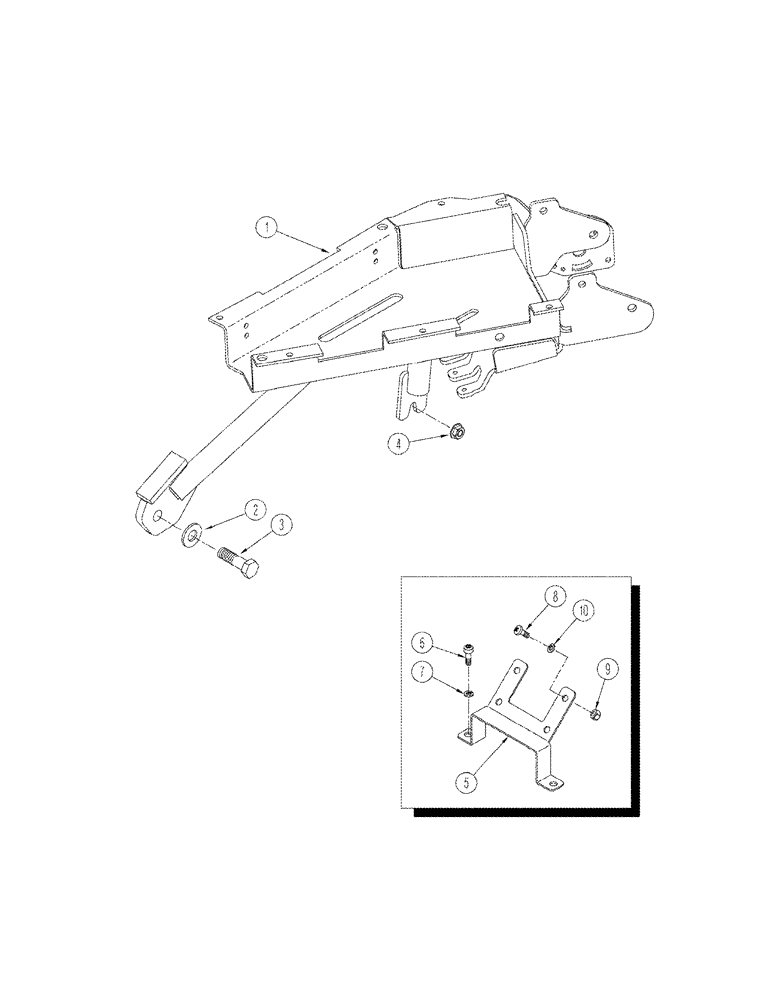

Запчасти Case IH STX440 (09-21) - CONSOLE, RIGHT-HAND ARMREST STANDARD CAB (09) - CHASSIS/ATTACHMENTS

1

319915A4

SUPPORT

console, manual

1шт.

2

895-15012

WASHER,M12 x 28 x 2.5

13.5 x 28 x 2.5 mm

1шт.

3

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

5

349563A1

BRACKET

no armrest unit

1шт.

6

864-4012

HEX SOC SCREW,M4 x 12mm, Cl 8.8

2шт.

7

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

2шт.

8

840-1316

SCREW,Pan, M3 x 16mm, Cl 4.8

4шт.

9

824-1403

NUT,M3, Cl 5

4шт.

10

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

(3.2 x 7 x 0.5 mm)

4шт.
