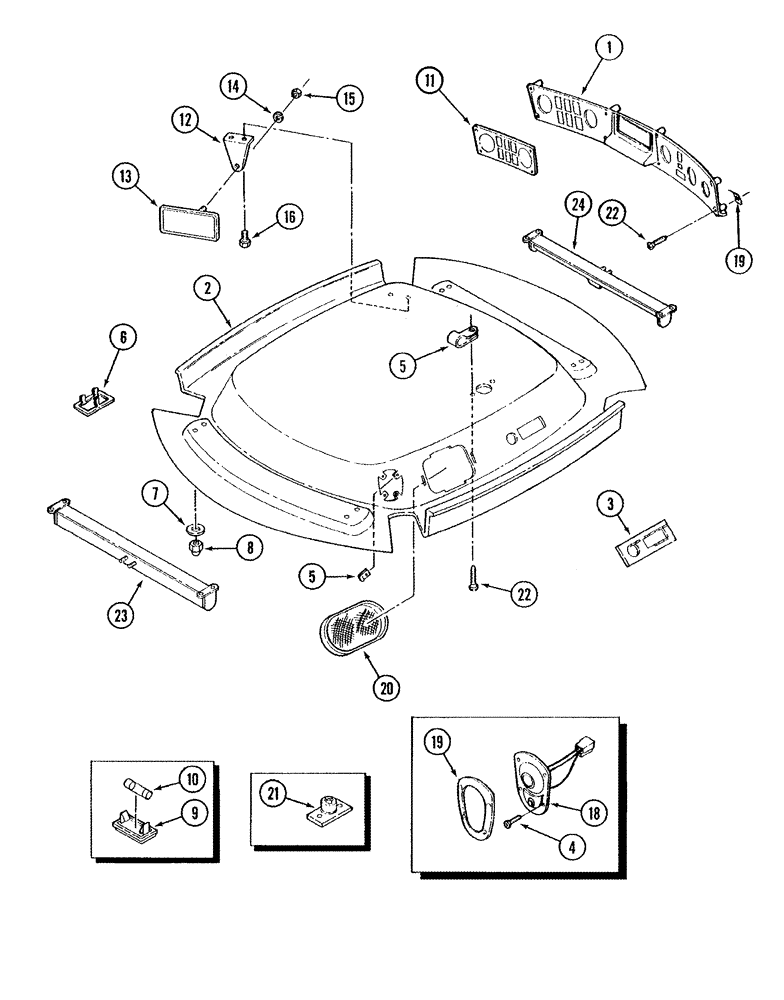

Запчасти Case IH STX440 (09-19) - CAB HEADLINER AND CONTROL PANEL DELUXE AND LUXURY CAB (09) - CHASSIS/ATTACHMENTS

1

358332A1

PANEL

control

1шт.

359616A3

ROOF LINING

Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

HEADLINER

1шт.

3

305485A2

RETAINER

domelight

1шт.

4

260-54310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

4шт.

5

302862A1

SPRING NUT,4.2 Thread

6шт.

6

305484A2

RETAINER

domelight

2шт.

7

895-30104

WASHER,M6 x 12 x 1.6

9 x 20 x 1.6 mm

8шт.

8

834-502

CROWN NUT,Crown, M6, Cl8

8шт.

9

1983391C1

LAMP,12V, 10W

dome, Inc. 10

3шт.

9a

279265A2

SWITCH

Dome Light (not shown)

1шт.

10

E35556

BULB,12V, 10W

1шт.

11

308645A3

DECAL

light panel, see Figure 09-59

1шт.

12

64-086T3

BRACKET

1шт.

13

A177462

MIRROR

rearview, Inc. 14 and 15

1шт.

14

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1шт.

15

19-5565

LOCK NUT,1/4"-28, GB

1шт.

16

555-12

BOLT,Hvy Hex, M6 x 30mm, Cl 10.9

2шт.

17

177269A1

SPRING NUT,M4.2

8шт.

18

372892A1

LAMP

map

1шт.

19

280569A2

BEZEL

1шт.

20

358683A1

GRILLE

2шт.

21

83882C91

LAMP

1шт.

22

1270741C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

10шт.

23

389093A1

VISOR, SUN

rear

1шт.

24

246324A1

VISOR, SUN

front

1шт.
