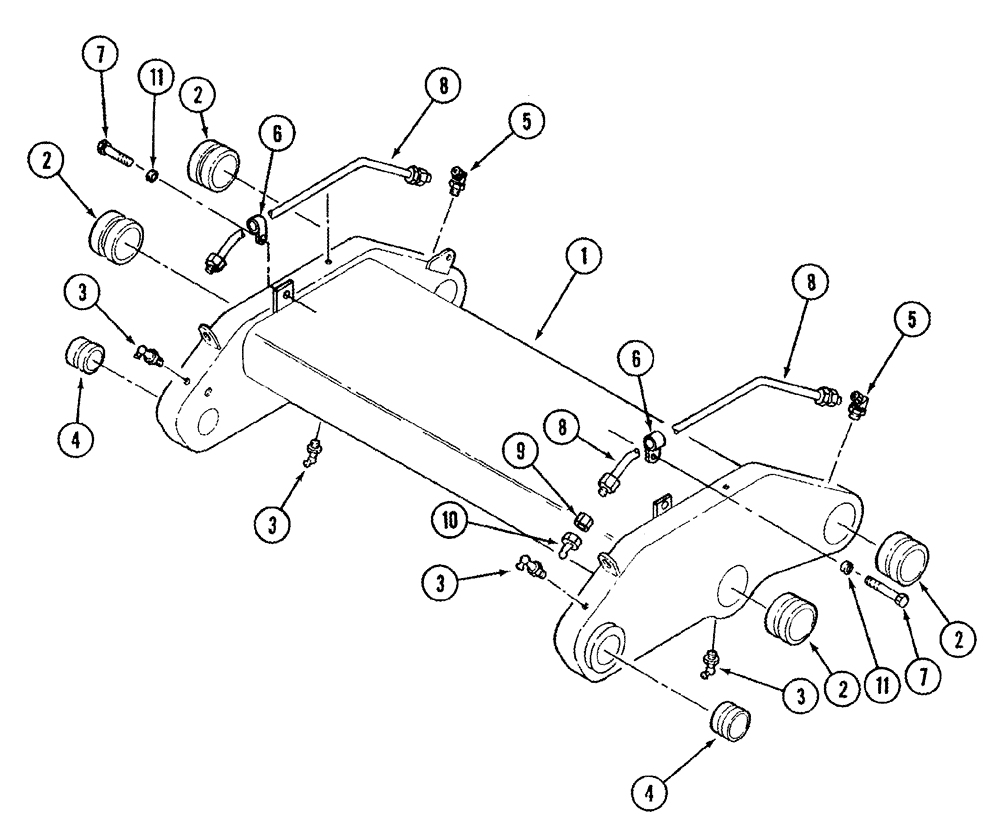

Запчасти Case IH STX440 (09-02) - ROCKSHAFT (09) - CHASSIS/ATTACHMENTS

347193A1

ROCKSHAFT

consists of: Ref. 1 - 5

1шт.

1

347194A4

ROCKSHAFT

1шт.

2

70-5966T2

BUSHING,nasp

4шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

4шт.

4

328586A2

BUSHING,44.57mm ID x 57.12mm OD x 56.69mm L

2шт.

5

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

2шт.

6

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

(M7.9)

2шт.

7

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

8

1339231C1

TUBE,737 mm Length

grease, 737 mm (29 in.)

2шт.

9

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

2шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
