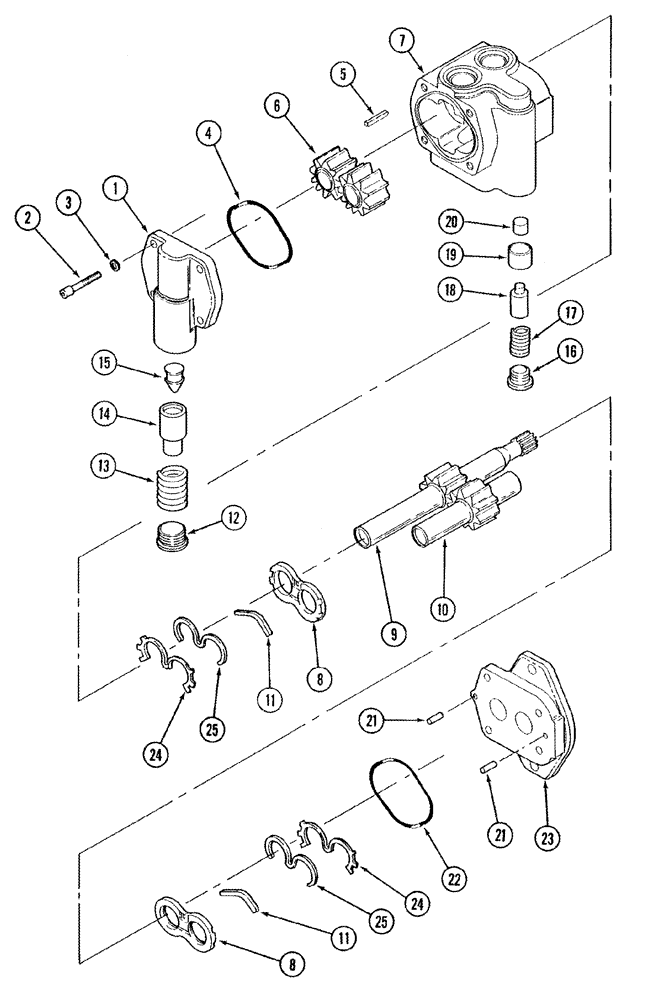

Запчасти Case IH STX440 (08-35) - GEAR PUMP ASSY (08) - HYDRAULICS

227748A3

PUMP, HYDRAULIC

gear, consists of: Ref. 1 - 25

1шт.

432244A3R

REMAN-HYD PUMP

STX375 (BSN JEE0099501), STX440 all Reman for New P/N 227748A3

1шт.

432244A3C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING rear

1шт.

2

NSS

NOT SOLD SEPARAT

SCREW

8шт.

3

NSS

NOT SOLD SEPARAT

WASHER

8шт.

4

NSS

NOT SOLD SEPARAT

SEAL

1шт.

5

NSS

NOT SOLD SEPARAT

PIN dowel

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING gear

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE thrust

2шт.

9

NSS

NOT SOLD SEPARAT

SHAFT gear

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT gear

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL

2шт.

231061A1

VALVE, PRESSURE RELI

EF consists of: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

PLUG

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING

1шт.

14

NSS

NOT SOLD SEPARAT

POPPET valve

1шт.

15

NSS

NOT SOLD SEPARAT

SEAT

1шт.

245847A1

PACKAGE

consists of: Ref. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

PLUG

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING

1шт.

18

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

19

NSS

NOT SOLD SEPARAT

POPPET valve

1шт.

20

NSS

NOT SOLD SEPARAT

SEAT

1шт.

21

NSS

NOT SOLD SEPARAT

PIN dowel

2шт.

22

NSS

NOT SOLD SEPARAT

SEAL

1шт.

23

NSS

NOT SOLD SEPARAT

HOUSING front

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL channel

2шт.

25

NSS

NOT SOLD SEPARAT

SEAL backup

2шт.

334450A1

SEAL KIT

repair

1шт.
