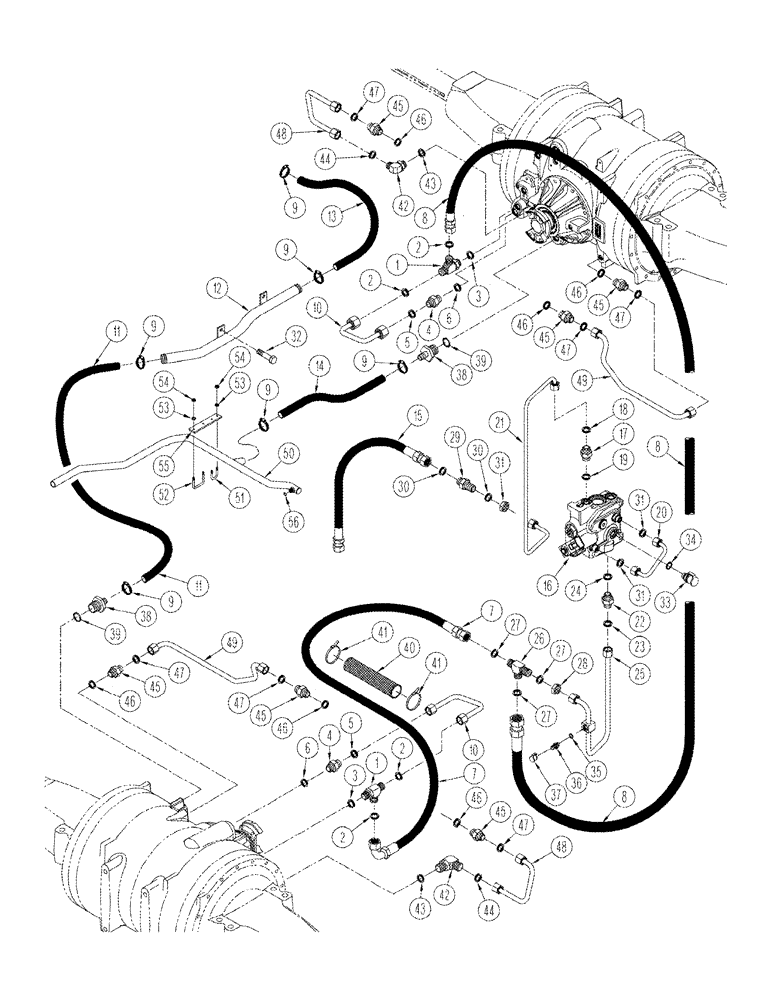

Запчасти Case IH STX440 (08-13) - AXLE HYDRAULICS LUBRICATION CIRCUIT STX 375 Heavy Duty, STX 440 (08) - HYDRAULICS

1

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. Ref. 2 and 3

2шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

4

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 5 and 6

2шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

6

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

7

353607A3

HOSE ASSY.

2165 mm (85 in.)

1шт.

8

381680A2

HOSE ASSY.

2419 mm (95 in.)

1шт.

9

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

6шт.

10

401386A1

TUBE

2шт.

11

353649A1

HOSE,1.00" ID x 56.00"

1346 mm (53 in.), cut from 31-2755

1шт.

12

365519A1

TUBE,25.4 mm OD, 525 mm Length

1шт.

13

340972A1

HOSE

787 mm (31 in.), cut from 31-2756

1шт.

14

395933A1

HOSE,1.00" ID x 15.00"

Cut from S118383

1шт.

15

388475A1

HOSE

1067 mm (42 in.)

1шт.

16

339014A2

VALVE

see Figure 08-22

1шт.

17

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. Ref. 18 and 19

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

19

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

20

341290A1

TUBE,9.5 mm OD, 101, 46 mm Length

1шт.

21

391409A1

TUBE

1шт.

22

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 23 and 24

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

24

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

25

341282A2

TUBE

1шт.

26

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Includes: Ref. 27

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

28

701-903

NUT,13/16" - 16

2шт.

29

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. Ref. 30

1шт.

30

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

31

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

33

358968A1

FITTING

diagnostic, M18 or x 1.5, Includes: Ref. 34

1шт.

34

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

35

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

36

392690A1

COUPLING

1шт.

37

399032A1

CAP

1шт.

38

390348A1

STEM

axle drain, M33 orb x barb, Includes: Ref. 39

2шт.

39

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

40

S120426

TUBE

1шт.

41

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

2шт.

42

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 43 and 44

2шт.

43

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

44

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

45

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 46 and 47

6шт.

46

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

6шт.

47

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

48

370753A1

TUBE

final drive

2шт.

49

370754A2

TUBE

final drive, long

2шт.

50

394304A1

TUBE,25.4 mm OD

return

1шт.

51

253105A1

U-BOLT,Coined, M8 x 1.25 x 33.8 x 50mm

BOLT "U"

2шт.

52

396490A1

U-BOLT

BOLT "U"

2шт.

53

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

54

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

55

394302A1

PLATE

2шт.

56

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

32

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.
