Запчасти Case IH STX440 (08-04) - OIL FILTER - MAIN HYDRAULICS (BELOW BATTERY) (08) - HYDRAULICS

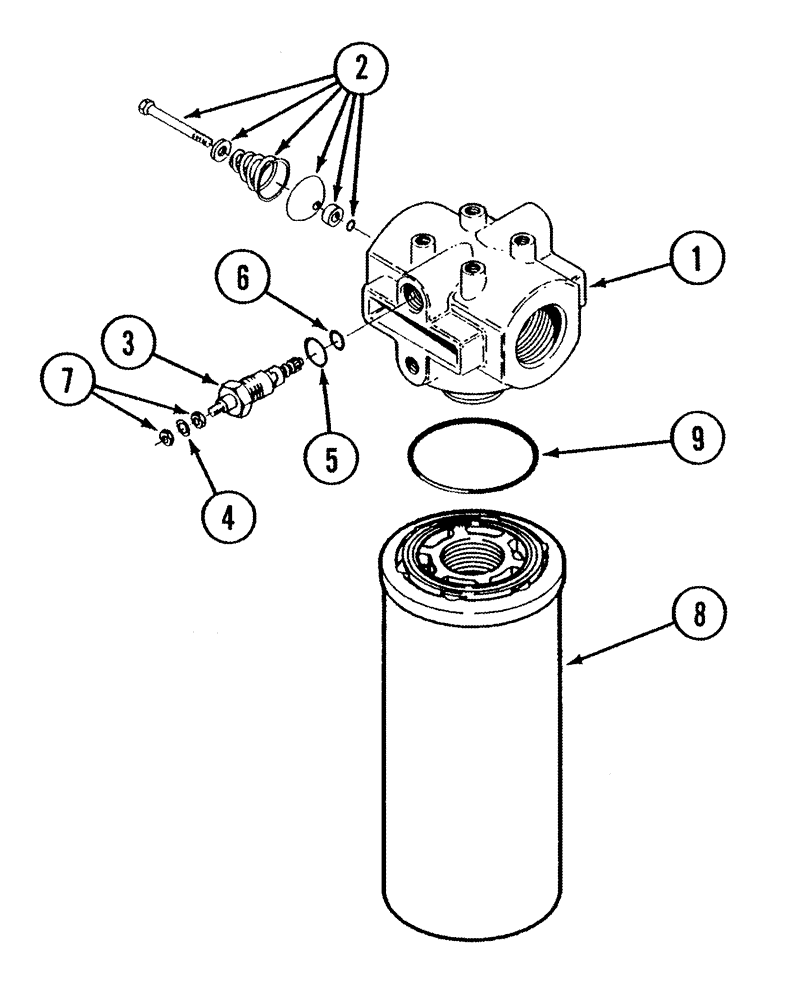

Схема запчастей Case IH STX440 - (08-04) - OIL FILTER - MAIN HYDRAULICS (BELOW BATTERY) (08) - HYDRAULICS
8
6
9
4
5
1
3
2
7

Артикул

Название

Примечание

Количество

296309A1

FILTER

consists of: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE bypass

1шт.

N6755

PRESSURE SWITCH

restriction, consists of: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

INDICATOR

1шт.

4

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

6

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

7

129-667

NUT,#10-32, LH

2шт.

8

254353A1

HYDRAULIC OIL FILTER

Element, Includes item #9

1шт.

9

N9026

O-RING

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 11
