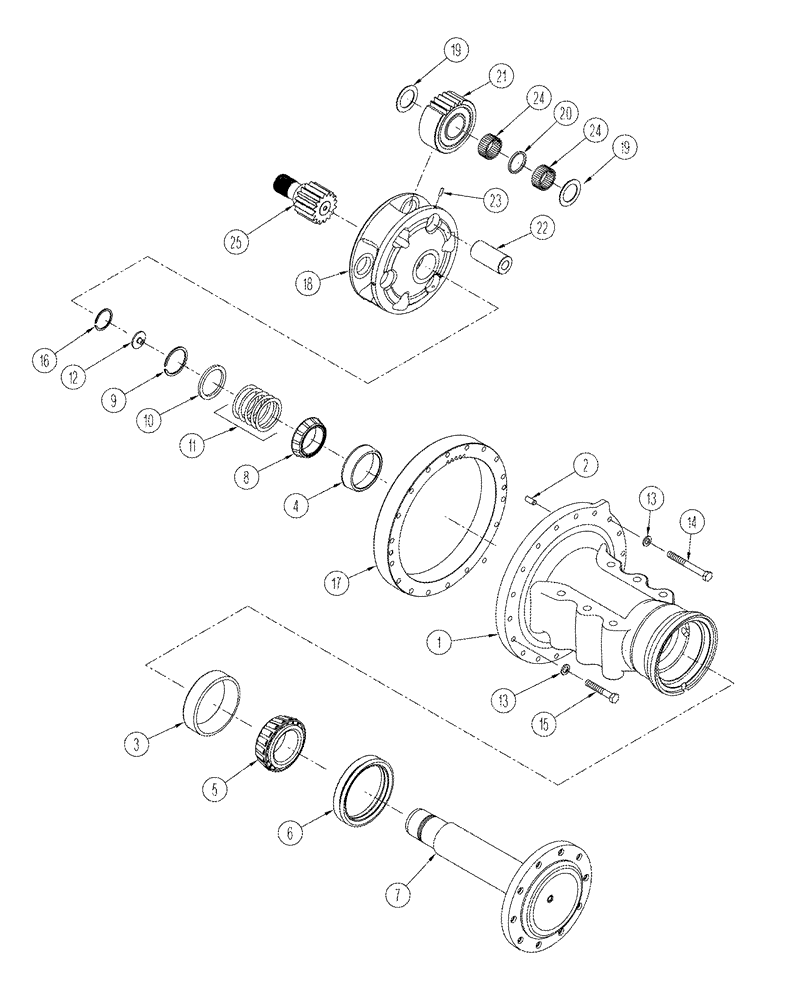

Запчасти Case IH STX440 (06-61) - AXLE ASSY FINAL DRIVE (QUADTRAC TRACTOR) (06) - POWER TRAIN

87423305

FRONT AXLE

QT W/Diff

1шт.

87423305R

REMAN-AXLE

QT Front Axle W/ Diff - REMANUFACTURED

1шт.

87423305C

CORE-FRT AXLE w/DL

CORE-PRESSURE SWITCH QT Front Axle W/Diff - Return Number

1шт.

87423306

REAR AXLE

QT W/Diff

1шт.

87423306R

REMAN-REAR AXLE 4WD

REMAN-REAR AXLE w/DIFF LOCK QT Rear Axle W/ Diff, REMANUFACTURED

1шт.

87423306C

CORE-REAR AXLE W/DI

QT Rear Axle W/Diff, Return Number

1шт.

336360A4

AXLE CARRIER

Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

837-16040

DOWEL,M16 x 40

2шт.

3

237698A1

BEARING CUP,212.74mm OD x 53.87mm W

1шт.

4

619697C1

BEARING CUP,149.98mm OD x 26.90mm W

1шт.

5

237700A1

TAPERED BEARING,114.3127 mm ID x 66.7766 mm

1шт.

6

369532A2

SEAL,194mm ID x 238.76mm OD x 47mm Thk

1шт.

7

359642A1

AXLE SHAFT

1шт.

8

1963841C1

ROLLER BEARING,95.26mm ID x 36.22mm W

1шт.

9

243856A1

RING, SNAP

RING SNAP

1шт.

10

124744C1

WASHER,95.63mm ID x 120mm OD x 8mm Thk

1шт.

11

143921C1

SHIM,95mm ID x 120mm OD x 0.76mm Thk

1шт.

11

143922C1

SHIM,95mm ID x 120mm OD x 0.3mm Thk

1шт.

11

143923C1

SHIM,95mm ID x 120mm OD x 0.13mm Thk

1шт.

11

143924C1

SHIM,95mm ID x 120mm OD x 0.1mm Thk

1шт.

11

143925C1

SHIM,95mm ID x 120mm OD x 0.08mm Thk

1шт.

12

1981270C1

INSERT

1шт.

13

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

18шт.

14

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

16шт.

15

828-16220

BOLT,Hex, M16 x 2 x 220mm, Cl 10.9

2шт.

16

101-11350

SNAP RING,#350, Ext

2шт.

17

310695A1

RING GEAR,77T

77 T

2шт.

18

388366A1

PINION CARRIER

GEAR CARRIER planetary

1шт.

19

385900A1

THRUST WASHER

6шт.

20

310728A2

RING

3шт.

21

310694A2

PLANETARY GEAR,29T

29 T

3шт.

22

310697A3

SHAFT,31.75mm ID x 63.4mm OD x 130mm L

gear

3шт.

23

838-3826

PIN,M8 x 26, Coiled

3шт.

24

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

198шт.

25

360335A1

SHAFT

sun gear, 16 T

2шт.
