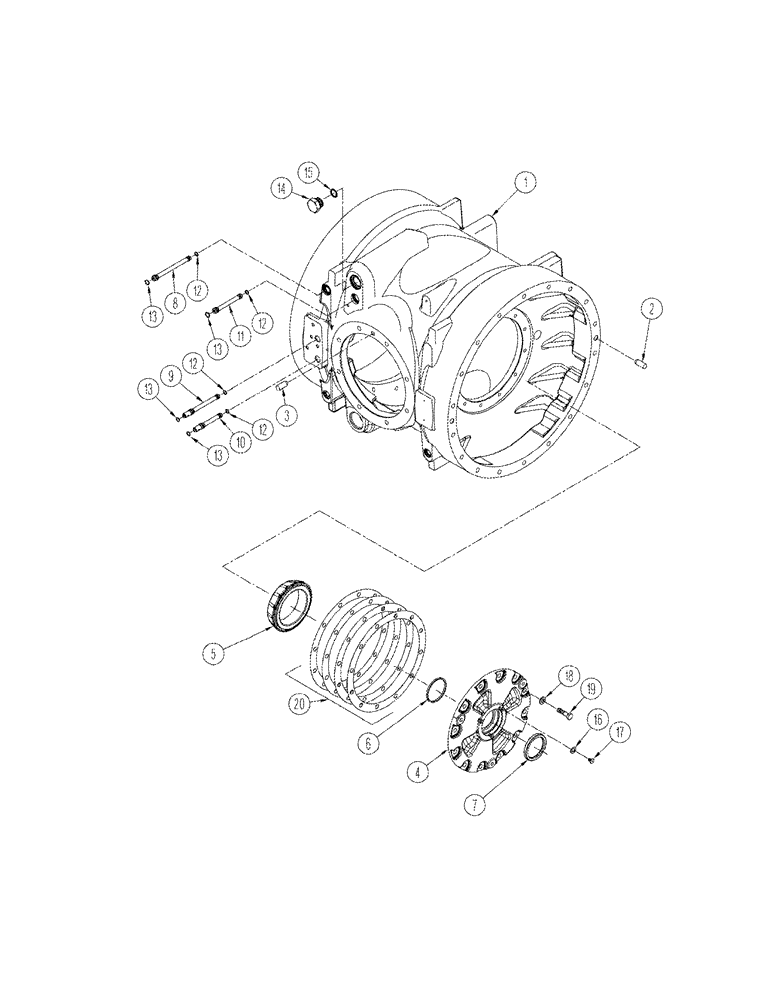

Запчасти Case IH STX440 (06-54) - AXLE ASSY CENTER AND LEFT-HAND CARRIER, STX 375 HEAVY DUTY, STX 440 WHEEL TRACTOR (06) - POWER TRAIN

86985668

FRONT AXLE

HD W/Diff Lock

1шт.

86985668R

REMAN-FRONT AXLE w/D

HD W/Diff Lock

1шт.

86985668C

CORE-FRT AXLE W/DIFF

Return Number

1шт.

86985669

REAR AXLE

HD W/Diff Lock

1шт.

86985669R

REMAN-RR AXLE W/DI

HD W/Diff Lock

1шт.

86985669C

CORE-REAR AXLE W/DI

Return Number

1шт.

333402A1

AXLE HOUSING

center, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

837-16040

DOWEL,M16 x 40

6шт.

3

837-12025

DOWEL,M12 x 25

1шт.

4

369765A1

COVER

1шт.

5

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.

6

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

1шт.

7

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

1шт.

8

284188A1

TUBE,7.47 mm ID, 11.85 mm OD, 120 mm Length

jumper, service brake

1шт.

9

329808A1

TUBE,7.5 mm ID, 11.85 - 15 mm OD, 117 mm Length

jumper, lubrication

1шт.

10

370783A2

TUBE,7.5 mm ID, 11.85 mm OD, 159 mm Length

jumper, lubrication

1шт.

11

298567A1

TUBE,11.85 mm OD, 156 mm Length

jumper, park brake

1шт.

12

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 ID x 1/16

4шт.

13

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

4шт.

14

220069A1

PLUG,M33 x 2, ORB

Incl. Ref. 15

1шт.

15

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

16

95-81100

WASHER,33/64" x 7/8" x .049"

3шт.

17

843-1812

SCREW,Flat, M8 x 12mm, Class 4.8

3шт.

18

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

19

828-12035

M12 x 35; 10.9

12шт.

20

255121A1

SHIM,290mm ID x 345mm OD x 0.076mm Thk

1шт.

20

255122A1

SHIM,290mm ID x 345mm OD x 0.102mm Thk

1шт.

20

255123A1

SHIM,290mm ID x 345mm OD x 0.13mm Thk

1шт.

20

255124A1

SHIM,290mm ID x 345mm OD x 0.5mm Thk

1шт.
