Запчасти Case IH STX430 (03-03) - FUEL LINES, STX & STEIGER 380 / 430 (03) - FUEL SYSTEM

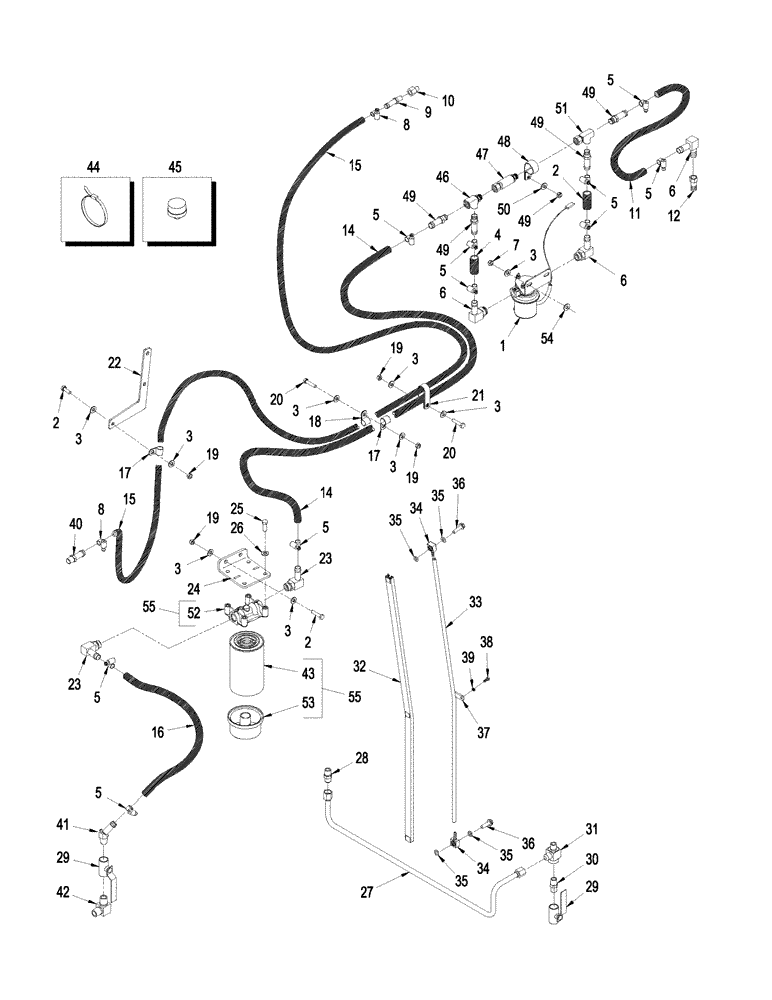

Схема запчастей Case IH STX430 - (03-03) - FUEL LINES, STX & STEIGER 380 / 430 (03) - FUEL SYSTEM
5
5
36
15
31
20
35
3
6
35
21
25
6
32
17
14
54
41
49
5
23
34
28
22
4
3
34
2
18
3
5
19
49
53
39
3
3
6
40
35
44
5
1
48
8
29
29
42
55
14
3
49
7
19
16
46
27
35
5
2
37
47
3
11
17
33
43
45
49
38
26
3
9
19
23
51
49
24
30
5
10
8
2
36
20
3
19
5
12
15
50
52
55

Артикул

Название

Примечание

Количество

1

87282080

FUEL PUMP,12V, 12A

1шт.

2

87362717

HOSE,15.9mm ID x 152.4mm L

Fuel Pump Supply, Out

1шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

13шт.

4

87362717

HOSE,15.9mm ID x 152.4mm L

Fuel Pump Supply, In

1шт.

5

214-1408

HOSE CLAMP,11.2mm - 19.8mm

10шт.

6

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

3шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

8

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

9

217-229

FITTING,1/2" Hose X 1/4" NPTF Beaded

1шт.

10

86990397

FITTING

Male Metric / Female NPTF

1шт.

11

87362697

FUEL HOSE

Fuel Supply

1шт.

12

86990398

FITTING

1шт.

13

217-207

FITTING,45 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

Elbow, 45, 5/8" ID x 3/8" nptf

1шт.

14

296077A1

HOSE

Fuel Supply, Serial Range: Filter-Pump

1шт.

15

31-3083

HOSE,12.70 mm ID x 3733.8 mm

Fuel Return

1шт.

16

87308466

FUEL HOSE,15.9mm ID x 584mm L

Fuel Supply, Serial Range: Tank-Filter

1шт.

17

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

3шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

7шт.

20

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

2шт.

21

R54363

CLAMP

Double

5шт.

22

87536383

BRACKET

Hose

1шт.

23

217-349

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

2шт.

24

87417445

BRACKET

Fuel Filter Mounting

1шт.

25

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

27

84142315

FUEL TUBE,15.88mm OD

Cross Over

1шт.

28

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

1шт.

29

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

2шт.

30

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

Adaptor, Pipe, 1/2" nptf

1шт.

31

31-1000

TEE

1/2" x 1/2" x .63"

1шт.

32

349868A1

CHANNEL

Sight Guage

1шт.

33

337240A1

FUEL HOSE,6.35 mm ID x 1206.00 mm

Sight Guage

1шт.

34

352767A1

FITTING

Sight Guage

2шт.

35

337248A1

O-RING,0.139" Thk x 0.484" ID, -206, Cl 5, 75 Duro

4шт.

36

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

37

402800A1

BRACKET

Mounting

1шт.

38

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

1шт.

39

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

40

217-186

FITTING,45 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

1шт.

41

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

42

217-1226

ELBOW,90 Degree, 1/2"-14 Male

1шт.

43

87410186

FUEL FILTER

1шт.

44

327144A1

STRAP,328mm L

Dual Tie

1шт.

44

19-135

CABLE TIE

CABLE STRAP

1шт.

45

435545A1

BREATHER

1шт.

46

217-52

TEE,3/8"-18 NPTF Fem x 3/8"-18 NPTF Male Run

1шт.

47

87365506

CHECK VALVE

1шт.

48

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

49

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

4шт.

50

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

51

217-12

TEE,3/8"-18 NPTF Fem

1шт.

52

87417455

FILTER HEAD

1шт.

53

87410185

FILTER BOWL

1шт.

54

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

55

87417454

FILTER ASSY

Fuel (ArticluationArea), Inc. 43, 52 & 53

1шт.

Выбрано товаров: 56
