Запчасти Case IH STX430 (02-33) - CONNECTING ROD, STX & STEIGER 380 / 430 (02) - ENGINE

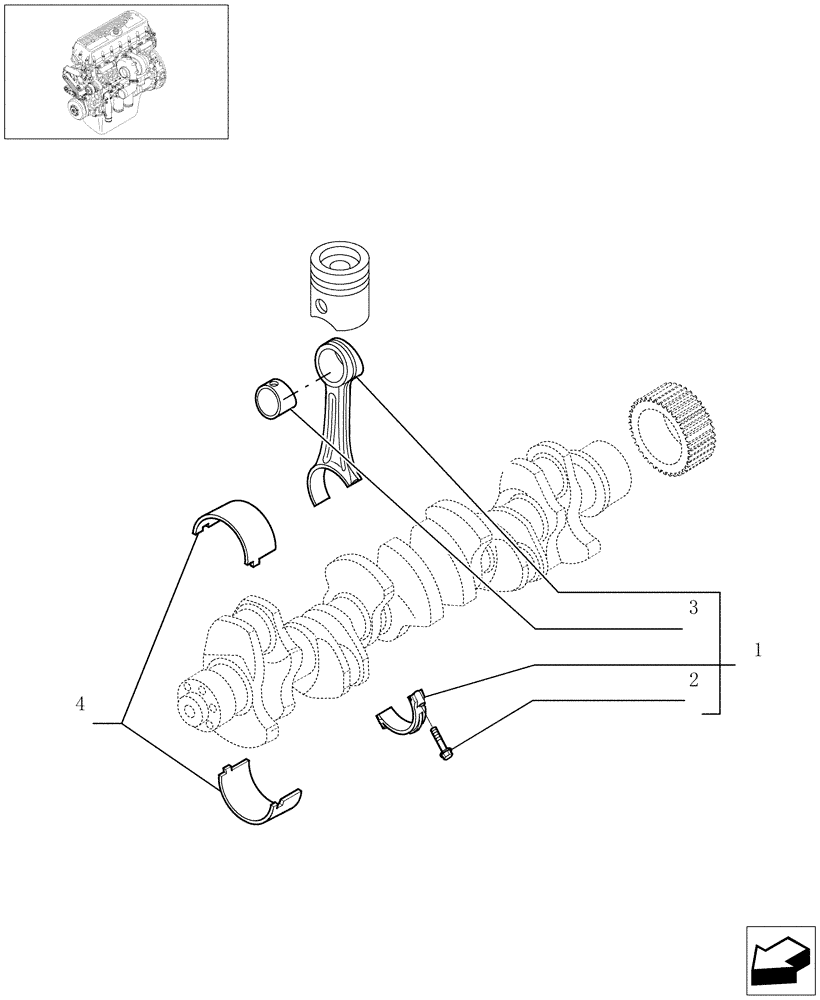

Схема запчастей Case IH STX430 - (02-33) - CONNECTING ROD, STX & STEIGER 380 / 430 (02) - ENGINE
4
1
3
2

Артикул

Название

Примечание

Количество

1

504028545

CONNECTING ROD

6шт.

504028545R

REMAN-CONNECTING ROD

STX380, STX430, BOTH BTW Z6F100023-Z6F105001

6шт.

504028545C

CORE-ROD CONNECTING

Return Number

1шт.

2

99431774

BOLT

12шт.

3

99460197

BUSHING

6шт.

4

2992158

SET OF CONN ROD BRGS STD,Red

6шт.

4

2992159

SET OF CONN ROD BRGS STD,Green

6шт.

4

2992160

SET OF CONN ROD BRGS U/S,0.127, Red/Black

6шт.

4

2992161

SET OF CONN ROD BRGS U/S,0.127, Green/Black

6шт.

4

2992162

SET OF CONN ROD BRGS U/S,0.254, Red

6шт.

4

2992163

SET OF CONN ROD BRGS U/S,0.254, Green

6шт.

4

2992164

SET OF CONN ROD BRGS U/S,0.508, Red

6шт.

4

2992165

SET OF CONN ROD BRGS U/S,0.508, Green

6шт.

4

2992165

SET OF CONN ROD BRGS U/S,0.508, Green

-GREEN, 0.508 mm

6шт.

4

2992164

SET OF CONN ROD BRGS U/S,0.508, Red

-RED, 0.508 mm

6шт.

4

2992163

SET OF CONN ROD BRGS U/S,0.254, Green

-GREEN, 0.254 mm

6шт.

4

2992162

SET OF CONN ROD BRGS U/S,0.254, Red

-RED, 0.254 mm

6шт.

Выбрано товаров: 17
