Запчасти Case IH STX430 (09-54) - COMPRESSOR, AIRCOND., STX & STEIGER 380 / 430 (09) - CHASSIS

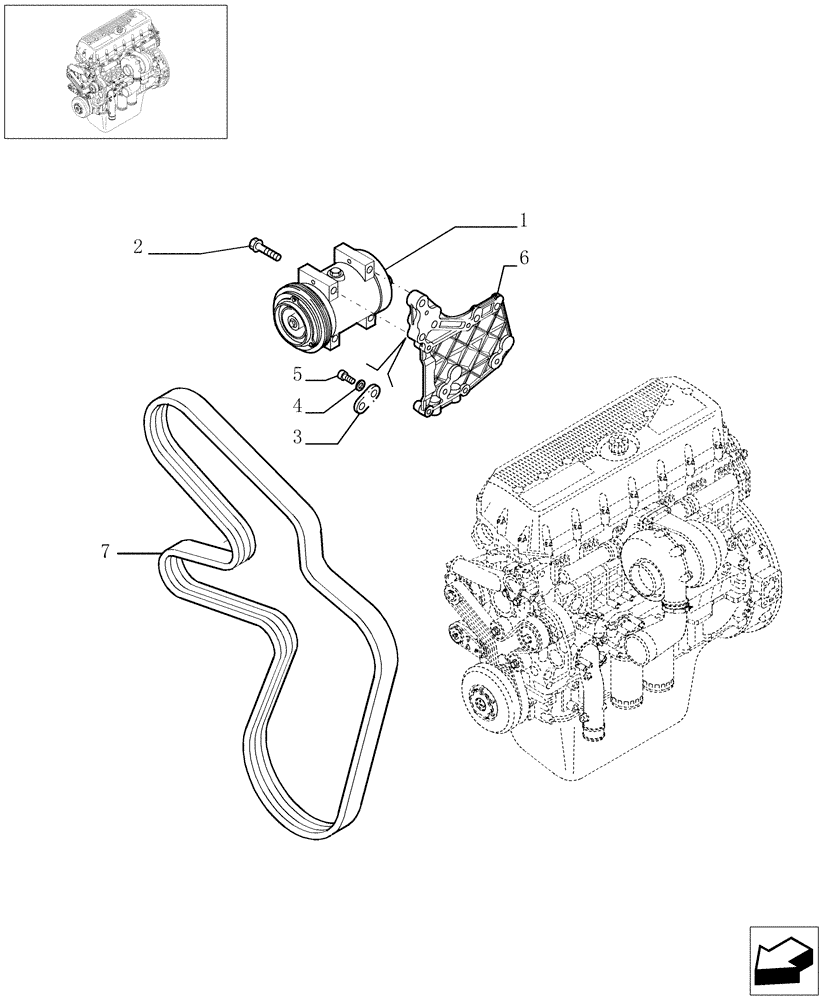

Схема запчастей Case IH STX430 - (09-54) - COMPRESSOR, AIRCOND., STX & STEIGER 380 / 430 (09) - CHASSIS
4
3
1
2
7
6
5

Артикул

Название

Примечание

Количество

1

86993463

AIRCOND. COMPRESSOR

ASSY, With 4 Rib Clutch, See Figure: 09-55

1шт.

1

86993463

AIRCOND. COMPRESSOR

ASSY, With 8 Rib Clutch, See Figure: 09-55

1шт.

1

86993463GV

AIRCOND. COMPRESSOR

Value

1шт.

1

86993463R

REMAN-A/C COMPRESSOR

Inc.- 4 Cross Bolt Mounting Lugs, w/6 In. OD Pulley For 8 Rib Poly-V Belt

1шт.

1

86993463C

CORE-A/C COMPRESSOR

Return Number

1шт.

2

16598325

BOLT,Hex, M8 x 100mm

M8X100 mm

4шт.

3

504093239

SPACER

1шт.

4

17097024

WASHER

1шт.

5

16692324

BOLT

M10X35 mm

2шт.

5

504080093

BOLT

2шт.

6

504078624

BRACKET, SUPPORTING

Air Compressor

1шт.

7

87282333

V-BELT,28.28 mm W x 2515.00 mm L

Accessory Drive, Alternate, A/C & Water Pump

1шт.

Выбрано товаров: 12
