Запчасти Case IH STX430 (09-45) - REAR FRAME, WHEEL TRACTOR (09) - CHASSIS

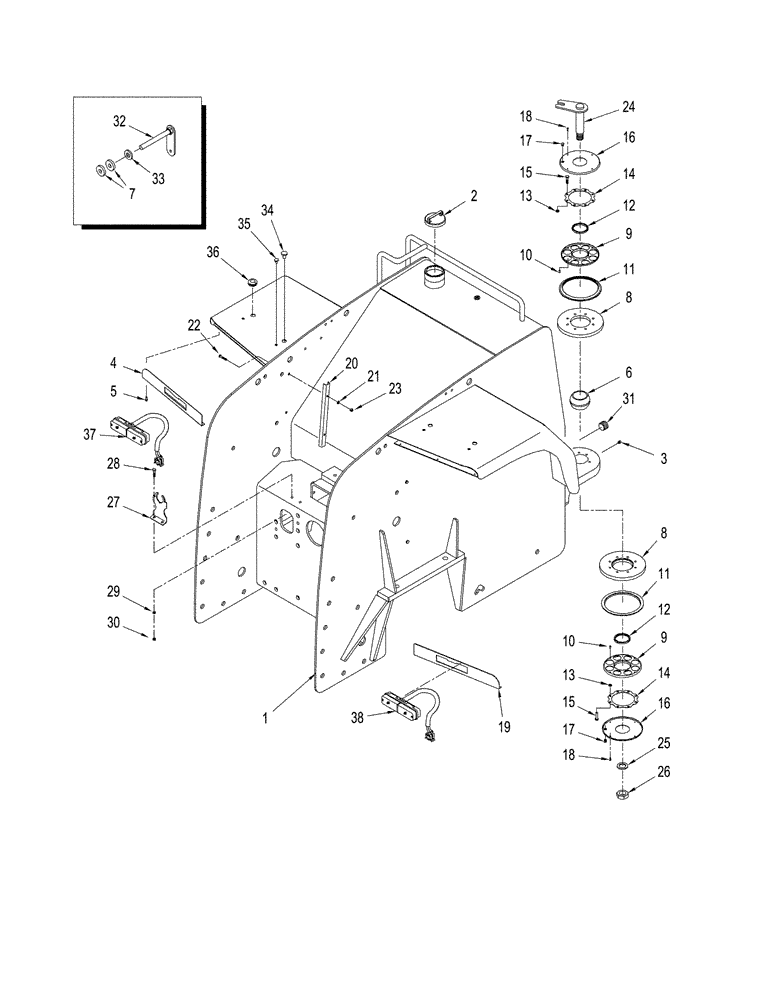

Схема запчастей Case IH STX430 - (09-45) - REAR FRAME, WHEEL TRACTOR (09) - CHASSIS
8
31
11
17
15
13
18
27
36
25
15
17
19
12
9
3
7
5
10
32
34
24
6
26
14
18
1
22
2
38
12
29
20
10
8
23
21
13
35
33
30
16
37
11
28
14
9
4
16

Артикул

Название

Примечание

Количество

1

426737A1

FRAME

Rear

1шт.

2

433479A1

CAP

Fuel, Serial Range: -Z7F105333

1шт.

2

87555106

LOCKABLE FUEL CAP

, Start Serial: Z7F105333

1шт.

3

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

4

417862A1

COVER

Tail Light, Left-Hand

2шт.

5

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

6шт.

6

87311338

SPHERICAL BEARING,50.98mm ID x 120.64mm OD x 145.2mm W

1шт.

7

321232A1

BUSHING,11mm ID x 31mm OD x 6mm L

2шт.

8

330032A1

COVER

2шт.

433481A1

BEARING ASSY

Inc. 9, 10

2шт.

9

NSS

NOT SOLD SEPARAT

Housing

1шт.

10

NSS

NOT SOLD SEPARAT

Spacer

8шт.

11

433478A1

SEAL

2шт.

12

D95148

WIPER SEAL

2шт.

13

432444A1

SPACER

16шт.

14

430250A1

RETAINER

2шт.

15

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

16шт.

16

433480A2

COVER

2шт.

17

163-47

SCREW,Hex, #10 - 32 x 1/2", Gr 5

8шт.

18

86643151

PLUG,Hex Hd, 1/8"-27 NPTF

4шт.

19

417863A1

COVER

Tail Light, Right-Hand

1шт.

20

330164A2

GUARD

2шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

22

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

4шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

24

87590638

PIN,50.8mm OD x 340mm L

1шт.

25

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

1-3/4" x 2-3/4" x 1/4"

1шт.

26

425-1528

JAM NUT,Jam, 1 3/4"-12, G5, Hvy

1шт.

27

349568A3

PLATE

Mounting

1шт.

28

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

30

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

31

384163A1

PLASTIC PLUG

1шт.

32

406390A1

HANDLE

Mounting, Articulation Lock

1шт.

33

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

34

353-422

PLUG,Dome, 1.250" hole, Nylon

2шт.

35

353-404

PLUG,Dome, .500" hole, Nylon

2шт.

36

87030421

GROMMET,3/8" ID x 1 1/4" Groove Dia, Str Cut

2шт.

37

429385A1

LAMP, WORK

LIGHT, WORK LH, See Figure: 04-25

1шт.

38

417788A1

LAMP, WORK

LIGHT, WORK RH, See Figure: 04-25

1шт.

Выбрано товаров: 40
