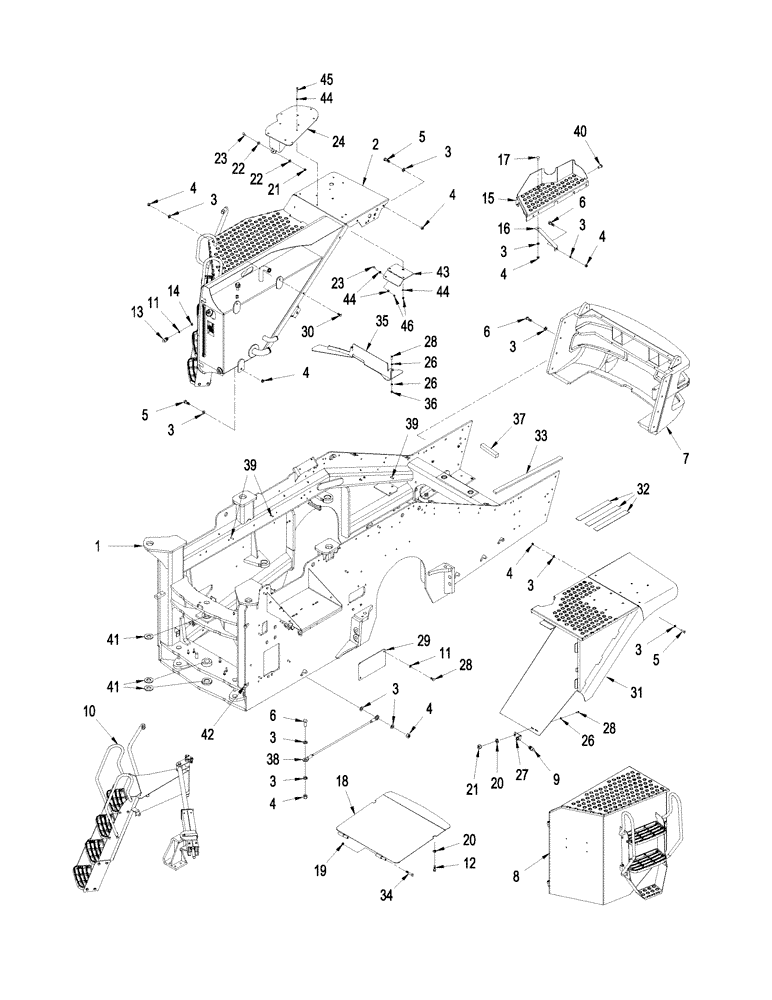

Запчасти Case IH STX430 (09-32) - FRONT FRAME, QUADTRAC TRACTOR, STEIGER 380 / 430 (09) - CHASSIS

1

87427355

FRAME

Front Frame

1шт.

2

NSS

NOT SOLD SEPARAT

Tank Assy, See Figure: 08-19

1шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

54шт.

4

829-1412

NUT,M12, Cl 10.9

26шт.

5

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

8шт.

6

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

17шт.

7

323608A3

BUMPER

Front Frame, See Figure: 09-38

1шт.

8

NSS

NOT SOLD SEPARAT

Door Assy, Battery, See Figure: 09-34

1шт.

9

363226A1

BUMPER

Rubber

1шт.

10

336017A1

STEP

Pivot, Left-Hand, See Figure: 09-35

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

13

N7673

BUMPER

1шт.

14

425-105

NUT,5/16"-18, G5

1шт.

15

87528060

STEP

Front Frame

1шт.

16

86991368

GUSSET

Step

1шт.

17

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

1шт.

18

87309871

DOOR COVER

Access

1шт.

19

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

22

140219

WASHER,11mm ID x 40mm OD x 4mm Thk

1шт.

23

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

24

87443625

MOUNTING PLATE

Muffler/ Air Intake

1шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

26

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

27

86992264

BRACKET

Door Stop

1шт.

28

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

29

87443717

COVER

Access

1шт.

30

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

31

87360518

REAR FENDER

Right-Hand

1шт.

32

1-6835

ADHESIVE STRIP

406 mm (16 in), Anti-Skid

4шт.

33

328197A1

SEAL

3шт.

34

827-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 10.9

1шт.

35

87386271

SHIELD

Trash

1шт.

36

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

37

396412A1

RUBBER STRIP

2шт.

38

87372424

CABLE RETAINER

Retaining

1шт.

39

426285A1

STUD

Threaded

42шт.

40

384163A1

PLASTIC PLUG

1шт.

41

87591684

WASHER

Front Frame Articulation Hinge, Start Serial: Z6F105291

3шт.

42

448719A1

HINGE

Battery Door

2шт.

43

84155412

GUSSET

Support, Fender

1шт.

44

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

45

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.

46

832-46410

NUT,M10 x 1.5, Cl 8

3шт.
