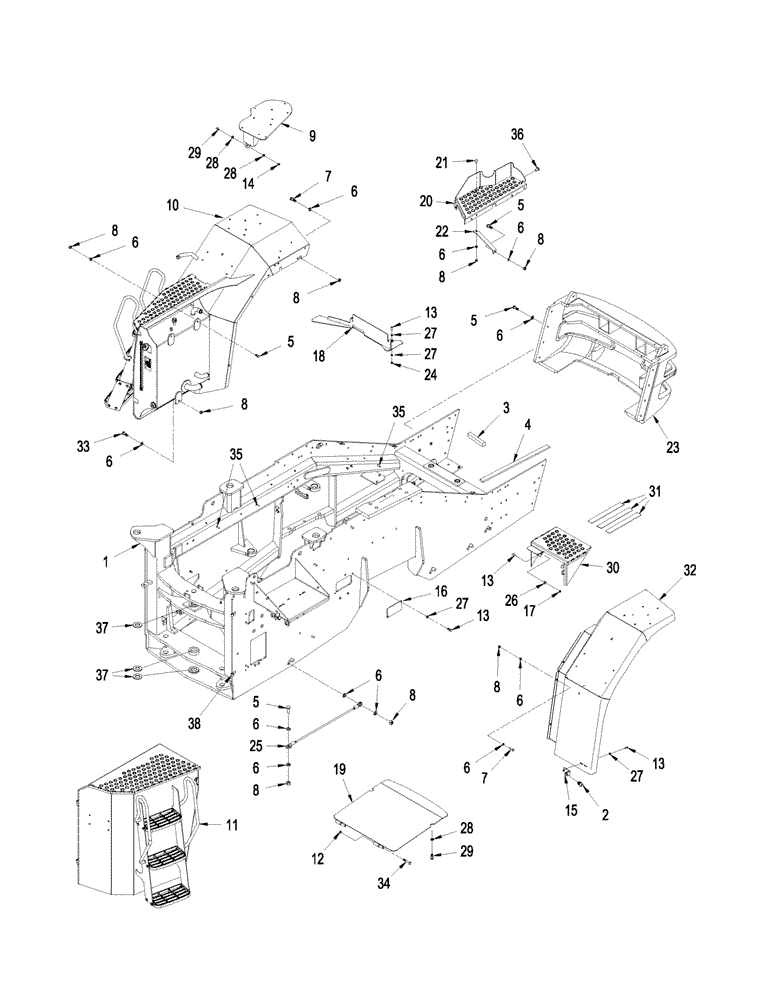

Запчасти Case IH STX430 (09-29) - FRONT FRAME, WHEEL TRACTOR, STX & STEIGER 380 / 430 (09) - CHASSIS

1

87407119

FRAME ASSY

Front

1шт.

2

363226A1

BUMPER

Rubber

2шт.

3

396412A1

RUBBER STRIP

2шт.

4

328197A1

SEAL

3шт.

5

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

12шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

51шт.

7

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

11шт.

8

829-1412

NUT,M12, Cl 10.9

25шт.

9

87444725

SUPPORT

Air Intake

1шт.

10

NSS

NOT SOLD SEPARAT

Tank Assy, See Figure: 08-18

1шт.

11

NSS

NOT SOLD SEPARAT

Battery Door Assy, Right-Hand, See Figure: 09-31

1шт.

12

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

13

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

14

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

15

443357A1

BRACKET

Door Step

1шт.

16

87443717

COVER

Access

1шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

18

87386271

SHIELD

Trash

1шт.

19

87309871

DOOR COVER

Access

1шт.

20

87528060

STEP

Front Frame

1шт.

21

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

1шт.

22

87522173

GUSSET

1шт.

23

430739A1

BUMPER

Front Frame, See Figure: 09-37

1шт.

24

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

25

87372424

CABLE RETAINER

1шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

14шт.

27

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

29

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

30

87316540

STEP

With Fender

1шт.

31

1-6835

ADHESIVE STRIP

2" x 9", Anti-Skid

3шт.

32

87318289

4WD FRONT FENDER

Right-Hand

1шт.

33

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

34

827-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 10.9

1шт.

35

426285A1

STUD

Threaded

42шт.

36

384163A1

PLASTIC PLUG

1шт.

37

87591684

WASHER

Front Frame Articulation

3шт.

38

448719A1

HINGE

Battery Door

2шт.
