Запчасти Case IH STX430 (09-25) - SEAT - OPERATORS (09) - CHASSIS

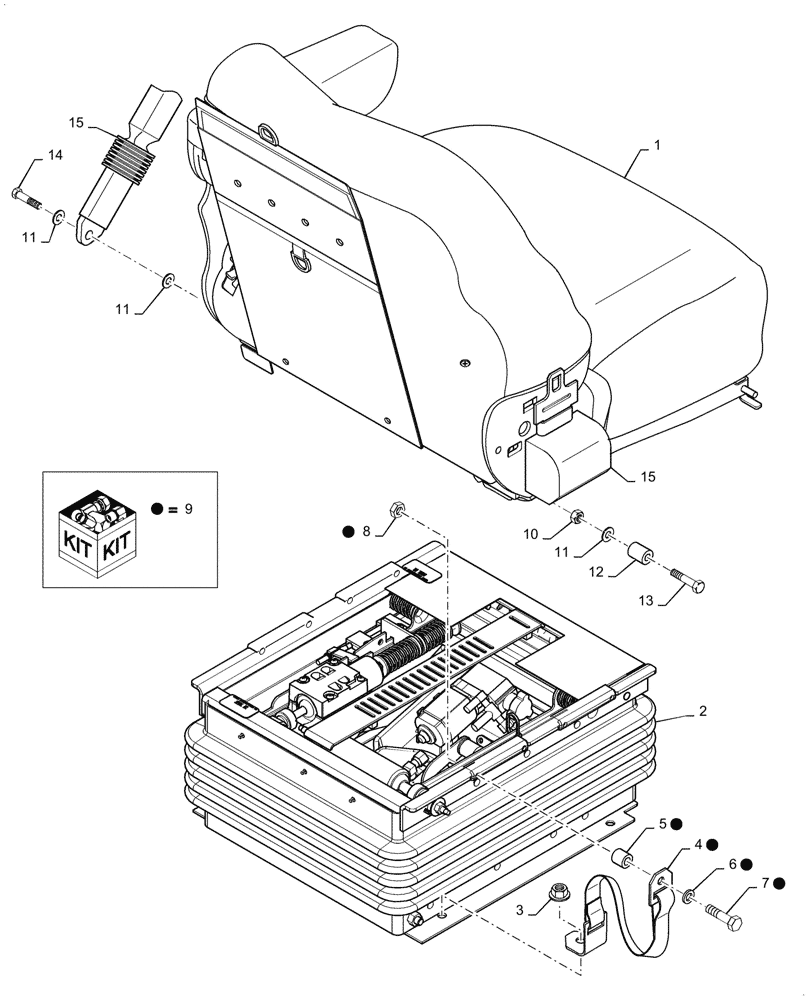

Схема запчастей Case IH STX430 - (09-25) - SEAT - OPERATORS (09) - CHASSIS
9
15
12
9
11
8
10
11
9
11
6
3
14
5
9
9
7
15
4
9
1
2
13
9

Артикул

Название

Примечание

Количество

1

87553808

SEAT ASSY.

Cloth, without Heat, See Figure: 09-26

1шт.

1

87553810

SEAT ASSY.

Cloth, Heated, See Figure: 09-26

1шт.

1

87553440

SEAT ASSY.

Cloth, Heated, Semi-Active, See Figure: 09-26

1шт.

1

87553442

SEAT ASSY.

Leather, Heated, Semi-Active, See Figure: 09-26

1шт.

2

87395380

SUSPENSION

See Figure: 09-27

1шт.

2

87395381

SUSPENSION

Semi-Active, See Figure: 09-28

1шт.

3

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

4

389277A1

SAFETY BELT ,48mm W x 283mm L

2шт.

Scraper Application

1шт.

5

NSS

NOT SOLD SEPARAT

Spacer

2шт.

Scraper Application

1шт.

6

496-31041

WASHER,13/32" x 13/16" x .134", HDN

2шт.

7

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

2шт.

8

231-4246

LOCK NUT,3/8"-16, GB

2шт.

9

87431487

FIP KIT

Tether Belt

1шт.

Scraper Application

1шт.

10

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

12

87313413

TUBE SPACER

Steel, .875" x .50"

1шт.

13

806-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9

1шт.

14

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

1шт.

15

444877A1

SAFETY BELT ,50.8mm W x 1737.86mm L

1шт.

Выбрано товаров: 22
