Запчасти Case IH STX430 (09-24) - SEAT - INSTRUCTIONAL (09) - CHASSIS

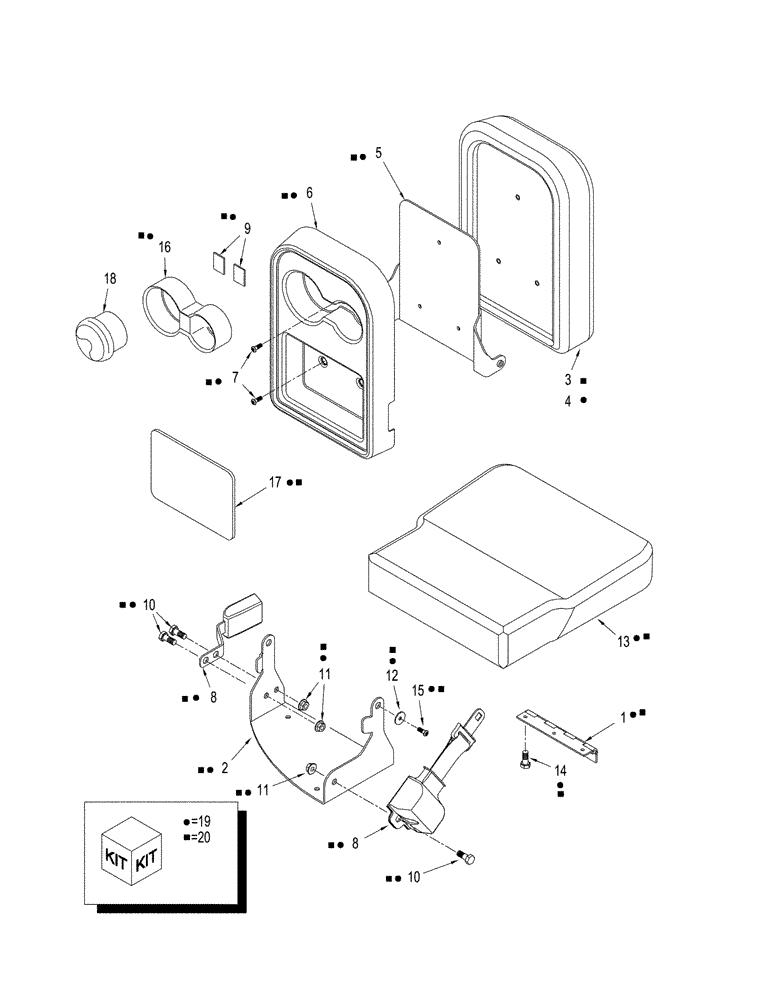

Схема запчастей Case IH STX430 - (09-24) - SEAT - INSTRUCTIONAL (09) - CHASSIS
21
19
19
20
19
20
19
11
20
9
18
19
20
20
7
12
20
19
20
19
20
15
19
8
5
19
20
19
11
20
20
19
19
16
21
20
20
8
19
19
1
13
20
20
2
20
19
4
20
19
3
19
10
20
19
14
19
17
20
6
19
20
10
20
19

Артикул

Название

Примечание

Количество

1

365674A1

HINGE

Instructional Seat

1шт.

2

249707A2

BRACKET

Mounting, Instructional Seat

1шт.

359383A1

SEAT ASSY.

Cloth, Inc. 3, 5 - 7

1шт.

359845A1

SEAT ASSY.

Leather, Inc. 4 - 7

1шт.

3

358341A1

CUSHION

Seat Back, Cloth

1шт.

4

359177A1

CUSHION

Seat Back, Leather

1шт.

5

252928A2

BRACKET

Mounting, Seat Back

1шт.

6

358330A1

TRAY

Storage

1шт.

7

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

3шт.

8

281926A2

SAFETY BELT

SAFETY BELT

1шт.

9

406682A1

FASTENER

Velcro

2шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

11

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

3шт.

12

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

13

358340A1

CUSHION

Seat, Cloth

1шт.

13

359176A1

CUSHION

Seat, Leather

1шт.

14

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

3шт.

15

906051R1

HEX SOC SCREW,Btn Hd, M6 x 10mm, Cl 12.9

2шт.

16

369635A2

HOLDER

Cup Holder

1шт.

17

394828A1

INSERT

Tray Liner

1шт.

18

302456A1

ASH TRAY

If Used

1шт.

19

365946A1

KIT

Instructional Seat, Leather, Inc. 1, 2 & 4 - 17

1шт.

20

334238A1

KIT

Instructional Seat, Cloth, Inc. 1 - 3, 5 - 13 & 14 - 17

1шт.

Выбрано товаров: 23
