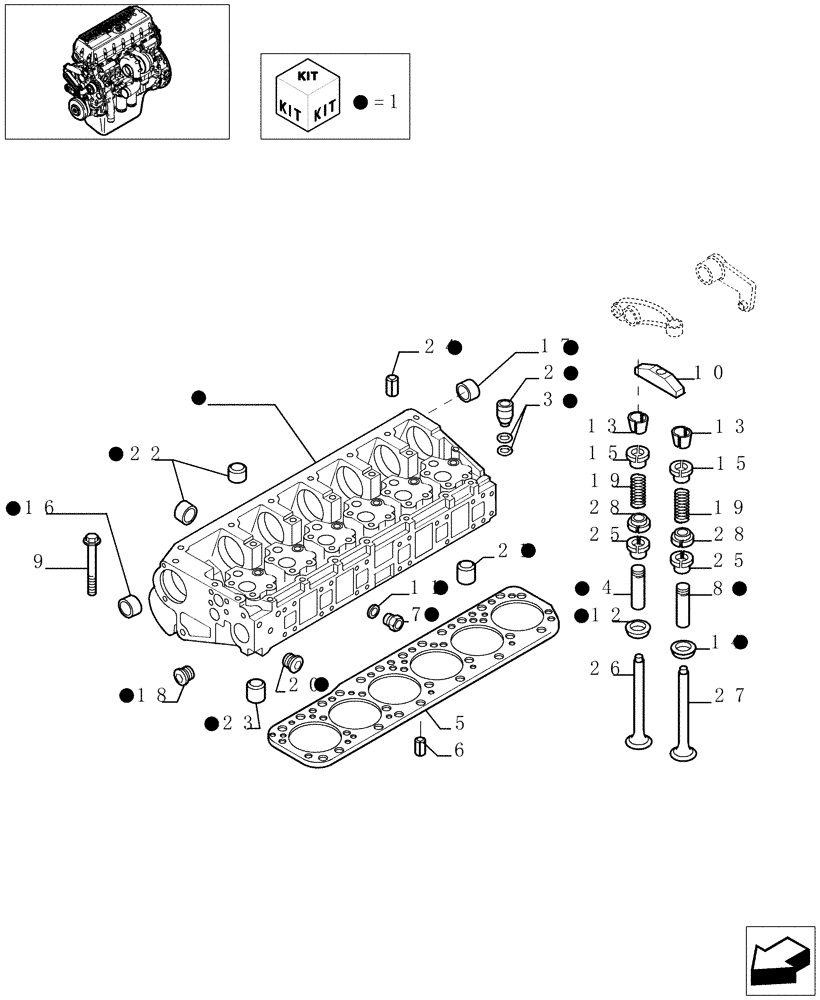

Запчасти Case IH STX430 (02-28) - CYLINDER HEAD & RELATED PARTS, STX & STEIGER 380 / 430 (02) - ENGINE

1

504021866

CYLINDER HEAD

1шт.

1

504021866R

REMAN-CYLINDER HEAD

STEIGER 380, STEIGER 430, Both (ASN Z6F105001) (NA), STX380, STX430, Both (BTW Z6F100023 - Z6F105001) Bare Head

1шт.

1

504021866C

CORE-CYLINDER HEAD

Return Number

1шт.

1

47507107R

REMAN-CYLINDER HEAD

STEIGER 380, STEIGER 430, Both (ASN Z6F105001) (NA), STX380, STX430, Both (BTW Z6F100023 - Z6F105001) Complete Head For Bare Head P/N's504021866 and 504021866R

1шт.

1

47507107C

CORE-CYLINDER HEAD

Return Number

1шт.

2

99476929

CASE

6шт.

3

14454081

O-RING,1.051" ID x 0.07" Width

D=26.7X1.7 mm

12шт.

4

500390993

INTAKE VALVE GUIDE

STD

12шт.

4

500390864

OVERSIZE INLET VALVE

+ 0,2

12шт.

4

500390866

OVERSIZE INLET VALVE

+ 0,4

12шт.

5

504007514

GASKET

1шт.

6

10839710

DOWEL,M10 x 15.00mm

D=10 mm

2шт.

7

16992411

PLUG

M16X1.5

2шт.

8

500390994

EXHAUST VALVE GUIDE

STD

12шт.

8

500390860

VALVE, EXHAUST, OVER

+ 0,2

12шт.

8

500390861

VALVE, EXHAUST, OVER

+ 0,4

12шт.

9

98495527

BOLT

20шт.

9

98495528

SCREW,Shldr, Hex Flg, M18 x 2 x 175mm

6шт.

10

504002605

CROSSRAIL

12шт.

11

99489019

SEALING WASHER

D=9.2X1.7mm

2шт.

12

99450511

VALVE SEAT

STD

12шт.

12

504020517

VALVE SEAT

+ 0,20

12шт.

13

14196370

ROCKER ARM COTTER

48шт.

14

99450512

VALVE SEAT

STD

12шт.

14

504020515

VALVE SEAT

+ 0,20

12шт.

15

98473050

COTTERS PLATE

24шт.

16

504003914

BUSHING

6шт.

17

504003915

BUSHING

1шт.

18

98472271

PLUG

6шт.

18

500310146

PLUG

1шт.

19

504100000

SPRING

24шт.

20

99430692

PLUG

1шт.

21

16991370

PLUG

D=45 mm

2шт.

22

16990870

PLUG

D=28 mm

13шт.

23

16990570

PLUG

D=20 mm

12шт.

24

17257074

ROLL PIN

1шт.

25

40101874

SEALING RING

12шт.

26

500355778

STD INLET VALVE

STD ENGINE INLET VALVE

12шт.

27

500355780

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

12шт.

28

504107641

CUP

24шт.
