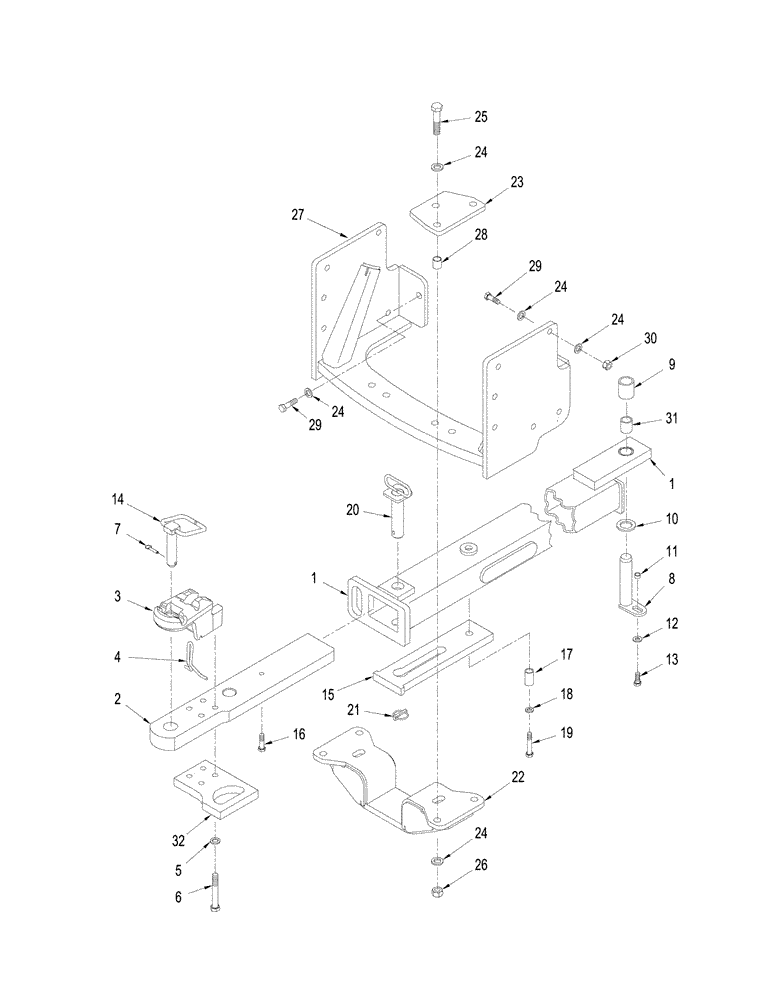

Запчасти Case IH STX430 (09-09) - DRAWBAR - HEAVY DUTY, WITHOUT THREE POINT HITCH (09) - CHASSIS

1

402654A1

DRAWBAR,2686.5mm L x 300mm W x 38.1mm Thk

Receiver

1шт.

2

360219A3

DRAWBAR

1шт.

2

430621A1

DRAWBAR

1шт.

For Decelerator Switch, See Figure 09-21

1шт.

3

375719A1

STRAP

Hammer, Drop Pin

1шт.

4

375721A1

PIN

Drop Pin

1шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

6

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

4шт.

7

393878A1

PIN

1шт.

8

195941A1

PIN,44.37mm OD x 205mm L

1шт.

9

361696A2

SPACER

1шт.

10

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

1-3/4" x 2-3/4" x 1/4"

1шт.

11

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

1шт.

12

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

1шт.

13

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

14

87615032

PIN,50.93mm OD x 243.3mm L

1шт.

15

430620A1

PLATE, SPACER

PLATE,SPACER

1шт.

16

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

17

363131A2

SPACER

1шт.

18

495-21069

WASHER,5/8"

1шт.

19

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

1шт.

20

403209A1

PIN,44.45mm OD x 223mm L

1шт.

21

19-1041

LOCK PIN,7/16" x 2"

1шт.

22

403220A1

HANGER

Drawbar, Lower

1шт.

23

403221A1

PLATE

Support, Drawbar, Upper

2шт.

24

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

12шт.

25

827-24110

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

6шт.

26

829-1424

NUT,M24, Cl 10

6шт.

27

87441225

HANGER

Drawbar, Without TPH

1шт.

28

363130A1

SPACER

4шт.

29

627-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

14шт.

30

829-1424

NUT,M24, Cl 10

12шт.

31

70-4620T2

BUSHING,44.6mm ID x 57.12mm OD x 37.34mm L

Drawbar Receiver

1шт.

32

441651A1

PLATE

Safety Chain

1шт.

For Decelerator Switch, See Figure 09-21

1шт.
