Запчасти Case IH STX430 (08-41) - HYDRAULICS - TWIN FLOW CIRCUITRY (08) - HYDRAULICS

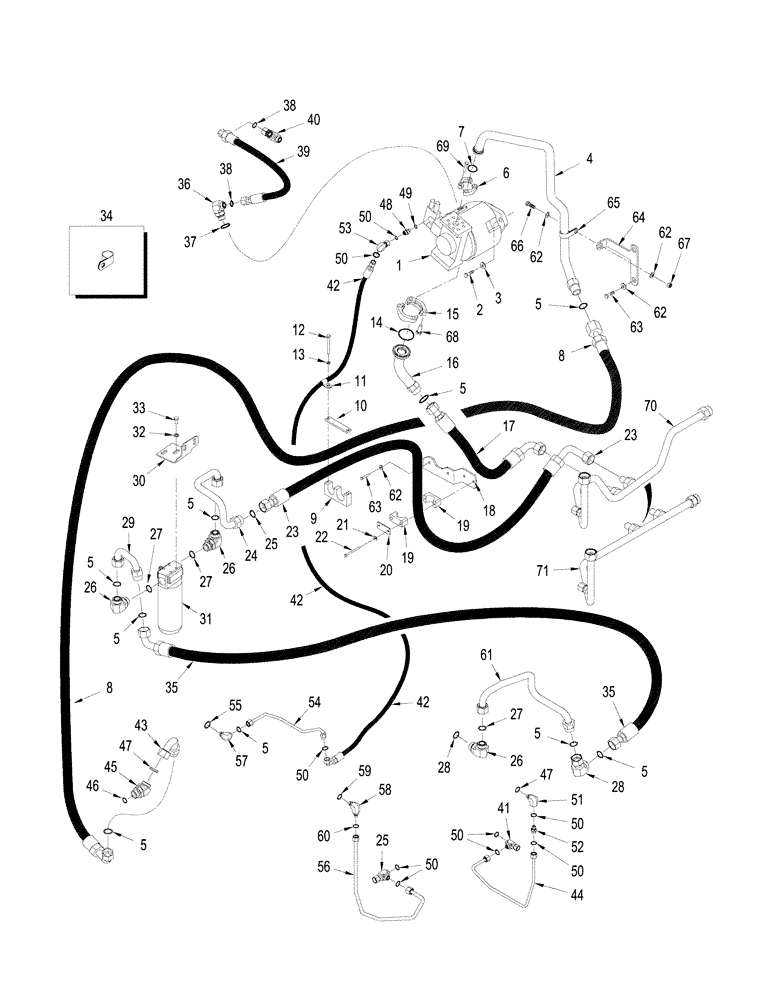

Схема запчастей Case IH STX430 - (08-41) - HYDRAULICS - TWIN FLOW CIRCUITRY (08) - HYDRAULICS
47
38
69
12
28
42
71
26
16
44
40
46
31
19
5
50
36
57
26
17
50
50
27
54
5
32
23
15
3
6
5
5
5
51
64
10
1
58
2
25
52
50
30
65
26
50
8
5
62
68
37
47
20
5
34
50
48
5
28
14
21
25
62
45
27
35
33
63
67
42
24
9
19
62
41
13
29
50
42
35
59
11
23
7
66
38
70
53
63
4
8
49
18
61
56
39
55
22
27
43
60
62
5

Артикул

Название

Примечание

Количество

1

407476A1

HYDRAULIC PUMP

Twin Flow, See Figure: 08-44

1шт.

1

407476A1C

CORE-HYDRAULIC PUMP

1шт.

1

407476A1R

REMAN-HYD PUMP

1шт.

2

86900235

BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

2шт.

With Manual Shift Transmission

1шт.

2

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

2шт.

With Power Shift Transmission

1шт.

3

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

4

87576188

TUBE,24.5 mm OD

Pressure Pump

1шт.

6

A12306

FLANGE

Split, 1

2шт.

7

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

8

87615313

HOSE ASSY.

2942 mm (116")

1шт.

9

87578492

HOSE CLAMP

1шт.

10

414856A1

PLATE

1шт.

11

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

12

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

2шт.

14

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

15

A14141

FLANGE

Split, 2

2шт.

16

414077A1

TUBE

1шт.

17

414196A1

HOSE,25.4mm ID x 825mm L

825 mm (32")

1шт.

18

433047A2

BRACKET

1шт.

19

429384A1

CLAMP,40mm ID x 30mm W x 71mm L

2шт.

20

429414A1

COVER PLATE,70mm L x 30mm W x 3mm Thk

1шт.

21

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

22

827-6080

BOLT,Hex, M6 x 80mm, Cl 10.9

2шт.

23

414464A1

HOSE

1626 mm (64")

1шт.

24

419661A1

TUBE

1шт.

25

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Inc. 50

1шт.

26

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 5 & 27

3шт.

27

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

28

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Inc. 5

1шт.

29

419655A1

TUBE

1шт.

30

87341623

BRACKET

Mounting, Twin Flow Hydrauic Filter

1шт.

31

414219A1

FILTER

Twin Flow Hydraulic, See Figure: 08-45

1шт.

32

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

33

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

34

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

34

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

35

414854A1

HOSE

1956 mm (77")

1шт.

36

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 37, 38

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

38

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

39

431461A1

HOSE ASSY.

737 mm (29")

1шт.

40

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Inc. 38

1шт.

42

414855A1

HOSE

2870 mm (113")

1шт.

41

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Inc. 50

1шт.

43

429941A2

TUBE

1шт.

44

430536A1

TUBE

1шт.

45

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 5 & 46

1шт.

46

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

47

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

48

1957867C1

FILTER SCREEN

1/4" orb x 3/8" fc sl, Inc. 49, 50

1шт.

50

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

8шт.

51

428078A1

ELBOW

90, M14 orb, Inc. 47

1шт.

52

334923A1

HYD CONNECTOR,M14 x 1.5 ORB x 11/16" - 16 ORFS

1шт.

53

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 50

1шт.

54

429943A2

TUBE

1шт.

55

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

56

445701A1

TUBE

1шт.

57

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 5 & 55

1шт.

58

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Inc. 59, 60

1шт.

59

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

60

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

61

419684A1

TUBE

1шт.

62

418816A2

TUBE

Pump Supply

1шт.

STX Wheel Tractor

1шт.

63

87311041

HYD TUBE

Pump Supply

2шт.

For Decelerator Switch, See Figure 09-21

1шт.

64

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

65

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

5

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

13шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 72
