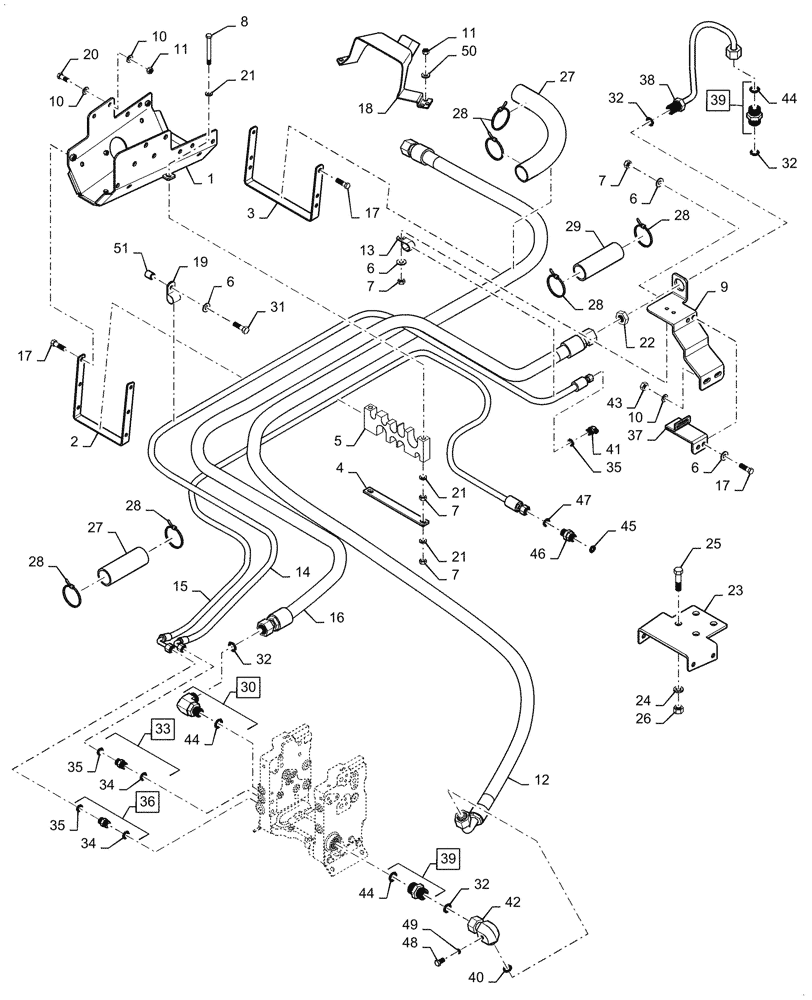

Запчасти Case IH STX430 (08-29) - HYDRAULIC REMOTE HOSES - ELECTRONIC REMOTE (08) - HYDRAULICS

1

87385879

BRACKET

Hoses

1шт.

2

405517A1

BRACKET

Support

1шт.

3

87388511

BRACKET

Support

1шт.

4

405520A1

PLATE

Mounting

1шт.

5

362419A1

CLAMP

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

8

627-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9, Full Thd

2шт.

9

87306262

BRACKET

1шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

12

360134A2

HOSE ASSY.,25.4mm ID x 3238mm L

1шт.

12

437272A1S

HOSE ASSY.

3238mm L

1шт.

Arctic QUADTRAC Tractor Only

1шт.

13

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

14

87394490

HOSE,9.53mm ID x 4384mm L

Priority Valve to Manifold Valve Auxiliary Inlet Load Sense Port

1шт.

14

87610048

HOSE ASSY.

3487mm L, from Priority Valve to Manifold Valve Auxiliary Inlet Load Sense Port

1шт.

Arctic QUADTRAC Tractor Only

1шт.

15

87539204

HOSE,9.53mm ID x 3323mm L

1шт.

15

87610047

HOSE ASSY.

4267mm L

1шт.

Arctic QUADTRAC Tractor Only

1шт.

16

87438667

HOSE,25.4mm ID x 3300mm L

3300mm L

1шт.

16

87610046

HOSE ASSY.,25.4mm ID x 3300mm L

1шт.

Arctic QUADTRAC Tractor Only

1шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

7шт.

18

405521A1

SHIELD

1шт.

19

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

20

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

21

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

5шт.

22

701-908

BHD LOCK NUT,1-7/16" - 12

1шт.

23

404604A1

BRACKET

Mounting, PTO / Remote Hose Bracket

1шт.

24

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

25

614-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8, Full Thd

4шт.

26

829-1416

NUT,M16, Cl 10

4шт.

27

387840A1

SLEEVE

610mm L

2шт.

28

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

6шт.

29

S120426

TUBE

1шт.

30

86580180

90 ELBOW,90 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

Incl 44

1шт.

31

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

1шт.

32

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

33

334923A1

HYD CONNECTOR,M14 x 1.5 ORB x 11/16" - 16 ORFS

Incl 34, 35

1шт.

34

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

35

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

36

339487A2

HYD CONNECTOR

Incl 34, 35

1шт.

37

87540204

BRACKET

1шт.

38

87438486

HYD TUBE,20.58 mm ID x 25.40 mm OD x 880, 219 mm L

EF Outlet

1шт.

39

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Incl 44

2шт.

40

84989413

ELBOW,90 Degree, 1 7/16"-12 ORFS x 1 7/16"-12 Fem Sw

1шт.

41

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

1шт.

42

311834A1

ELBOW

90 Degree, Swivel

1шт.

43

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

44

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

45

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

46

84989629

HYD CONNECTOR,13/16" - 16 ORB x 1" ORFS

1шт.

47

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

48

87030025

PLUG,Hex, M18 x 1.5 ORB

1шт.

49

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

50

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

51

371838A1

SPACER,9.5mm ID x 19.1mm OD x 10mm Thk

1шт.
