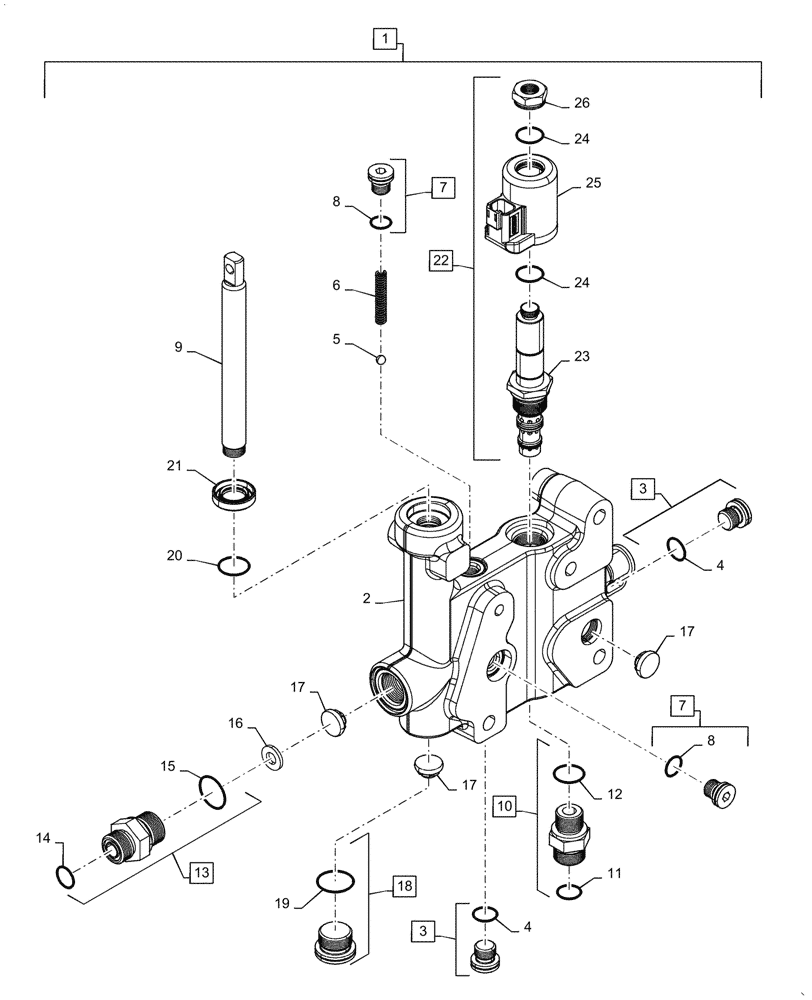

Запчасти Case IH STX430 (08-16) - TOW BLOCK VALVE ASSEMBLY (08) - HYDRAULICS

1

87679712

VALVE

Tow Block, Assy, Incl 1 - 26

1шт.

2

NSS

NOT SOLD SEPARAT

Valve Body, Incl in 1

1шт.

3

86598044

PLUG,Hex, M14 x 1.5 ORB

Incl 3

2шт.

4

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

5

511-1060

BALL,6mm Dia

1шт.

6

352025A1

SPRING

Brake Over Pressure Relief

1шт.

7

86598043

PLUG,M12 x 1.5 ORB

Incl 7

2шт.

8

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

9

326300A1

SPOOL

Manual Pump

1шт.

10

282839A1

PLUG,8mm OD x 8.5mm L

Incl 10, 11

1шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

13

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

Incl 13, 14

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

16

86637953

WASHER,0.34" ID x 0.69" OD x 0.09" Thk

1шт.

17

1994615C2

VALVE, CHECK

3шт.

18

86598047

PLUG,Hex Soc, M22 x 1.5, ORB

Incl 18

1шт.

19

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

20

238-5208

O-RING,0.139" Thk x 0.609" ID, -208, Cl 5, 75 Duro

1шт.

21

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

Oil Sensing

1шт.

22

87675608

SOLENOID

Check, Assy, Incl 23 - 26

1шт.

23

NSS

NOT SOLD SEPARAT

Check Solenoid, Incl in 1, 22

1шт.

24

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

25

NSS

NOT SOLD SEPARAT

Coil, Incl in 1, 22

1шт.

26

252462A2

NUT

1шт.
