Запчасти Case IH STX430 (08-04) - OIL FILTER - AXLE AND TRANSMISSION (08) - HYDRAULICS

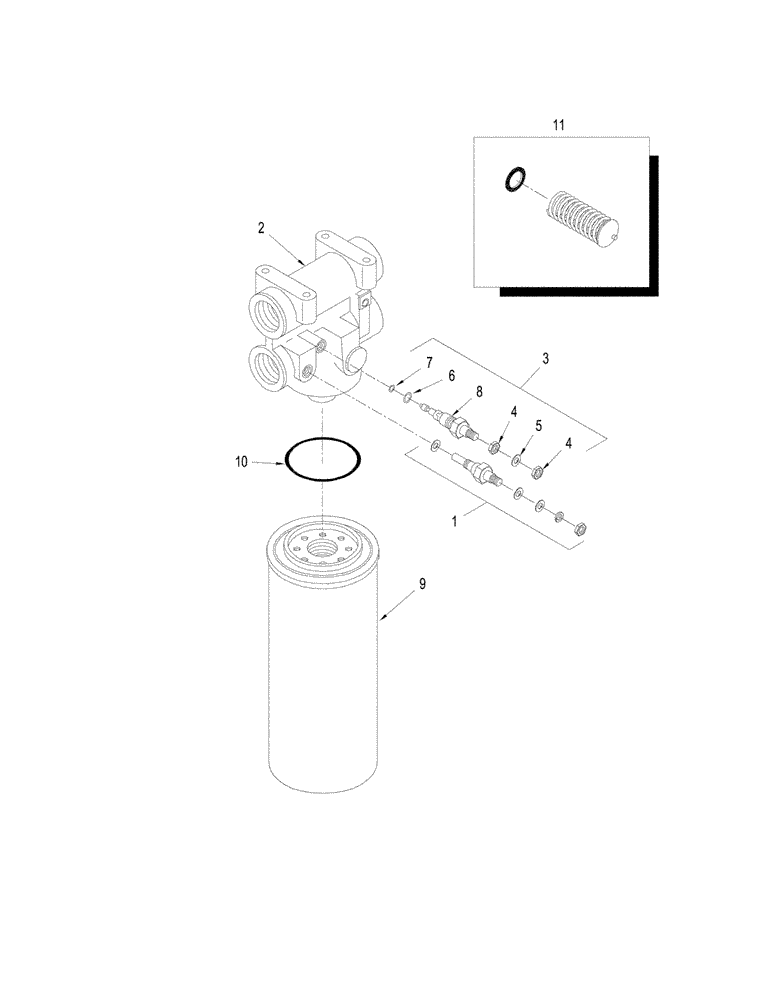

Схема запчастей Case IH STX430 - (08-04) - OIL FILTER - AXLE AND TRANSMISSION (08) - HYDRAULICS
8
5
4
11
6
3
1
2
7
10
9
4

Артикул

Название

Примечание

Количество

1

302557A2

SENDER UNIT

SENDER Temperature

2шт.

2

87524848

FILTER HEAD

Transmission Lubrication, LH

1шт.

2

87524849

FILTER HEAD

Axle Lubrication, RH

1шт.

3

N6755

PRESSURE SWITCH

Restriction, Inc. 4 - 8

1шт.

4

129-667

NUT,#10-32, LH

2шт.

5

493-21020

LOCK WASHER,Int Tooth, #10

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

Switch, Indicator Restriction

1шт.

9

1346028C1

HYDRAULIC OIL FILTER

Inc. 10

1шт.

10

1986552C2

O-RING,2.484mm ID x 1.39mm Width

1шт.

11

50-3590T91

KIT

Check Valve, Outline

1шт.

Выбрано товаров: 12
