Запчасти Case IH STX430 (07-07) - 500 SERIES AXLE - PARK BRAKE CIRCUIT, WITH DIFFERENTIAL LOCK, WHEEL TRACTOR (07) - BRAKES

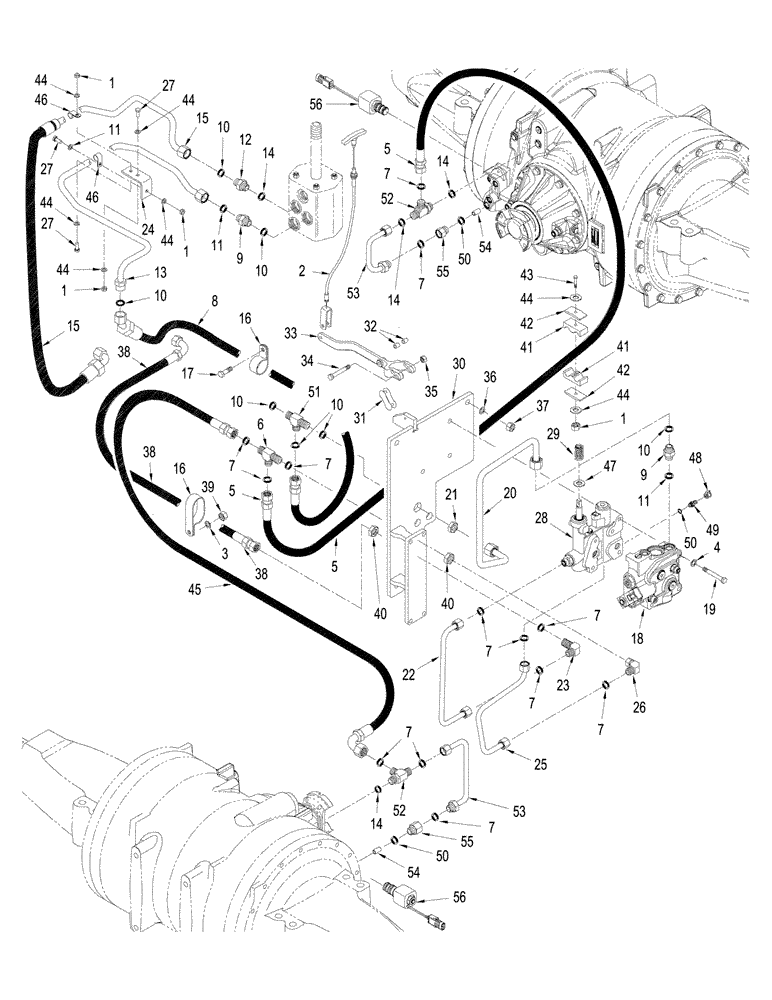

Схема запчастей Case IH STX430 - (07-07) - 500 SERIES AXLE - PARK BRAKE CIRCUIT, WITH DIFFERENTIAL LOCK, WHEEL TRACTOR (07) - BRAKES
3
7
6
55
17
1
10
2
8
41
5
38
7
15
53
31
11
44
15
20
44
34
11
4
7
33
21
26
9
45
28
40
1
37
46
11
9
10
23
1
41
36
38
52
44
44
50
32
10
35
38
7
5
52
54
7
56
30
44
16
7
56
51
44
13
46
27
24
27
7
47
53
29
10
43
42
25
22
49
42
27
50
39
10
14
7
18
40
7
1
50
54
12
44
19
5
7
48
16
10
14
55
14
14

Артикул

Название

Примечание

Количество

1

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

2

349863A2

CABLE

Tow Valve, See Figure: 08-17 for Mounting & Parts

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

5

428171A1

HOSE ASSY.

2235 mm (88 in)

1шт.

6

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

8шт.

8

87309670

HOSE

1170 mm (46")

1шт.

8

87610024

HOSE ASSY.

1170 mm (46")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

9

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Inc. 10, 11

2шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

7шт.

11

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

12

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 10, 14

1шт.

13

87345208

TUBE,15.90 mm OD

Brake Supply

1шт.

14

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

15

87365244

TUBE,15.9 mm OD

Return

1шт.

15

87610054

TUBE,15.9 mm OD

Return

1шт.

Arctic QUADTRAC Tractor Application

1шт.

16

515-24206

CLAMP,13/16", Insul, 7/16" Bolt

P-type

2шт.

17

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

18

87672094

VALVE

Regulator, See Figure: 08-14

1шт.

19

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

3шт.

20

449827A2

TUBE

Regulator Valve to Mounting Plate Tee

1шт.

21

701-919

BHD LOCK NUT,1" - 14

1шт.

22

449796A1

TUBE

Tow Valve to Hydraulic Return

1шт.

23

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 7

1шт.

24

87345210

BRACKET

Mounting, Brake Tube

1шт.

25

449798A1

TUBE

Lower Tow Valve to Mounting Plate Tee

1шт.

26

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 7

1шт.

27

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

28

87679712

VALVE

Control, Tow Block, See Figure: 08-16

1шт.

29

361897A1

SPRING

1шт.

30

449830A1

PLATE ASSY.

Mounting, Tow Valve

1шт.

31

242-4412

CHAIN LINK

Tow Valve Arm

1шт.

32

392748A1

SPACER

2шт.

33

390918A3

ARM

Tow Valve

1шт.

34

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

1шт.

35

832-10406

NUT,M6 x 1, Cl 8

1шт.

36

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

37

829-1412

NUT,M12, Cl 10.9

3шт.

38

87414079

HOSE ASSY.

1298 mm (51 in)

1шт.

39

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

40

701-903

NUT,13/16" - 16

3шт.

41

435470A1

CLAMP

2шт.

42

50-2533T1

PLATE

2шт.

43

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

1шт.

44

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

45

352112A3

HOSE ASSY.

2336 mm (92 in)

1шт.

45

437267A1S

HOSE ASSY.

2336 mm (92")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

46

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

2шт.

47

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 48, 49

1шт.

48

H434163

DUST CAP

1шт.

49

NSS

NOT SOLD SEPARAT

Fitting, Diagnostic, Inc. 50

1шт.

50

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

51

701-429

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

Inc. 10

1шт.

52

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 7, 14

2шт.

53

416697A1

TUBE

Jumper

2шт.

341195A1

ORIFICE

Inc. 7, 50, 54, 55

2шт.

54

878-10812

SET SCREW,Hex Skt, M8 x 12mm, Cup Pt

Screw,Set, Hex Soc. M8 x 12, Cup Pt.

2шт.

55

700-154

HYD CONNECTOR,13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Connector, 13/16" fcsl x M14 orb

2шт.

56

384977A1

VALVE

Solenoid, Differential Lock, See Figure: 07-12

2шт.

Выбрано товаров: 64
