Запчасти Case IH STX430 (07-04) - 450 SERIES AXLE - PARK BRAKE CIRCUIT, WITH DIFFERENTIAL LOCK (07) - BRAKES

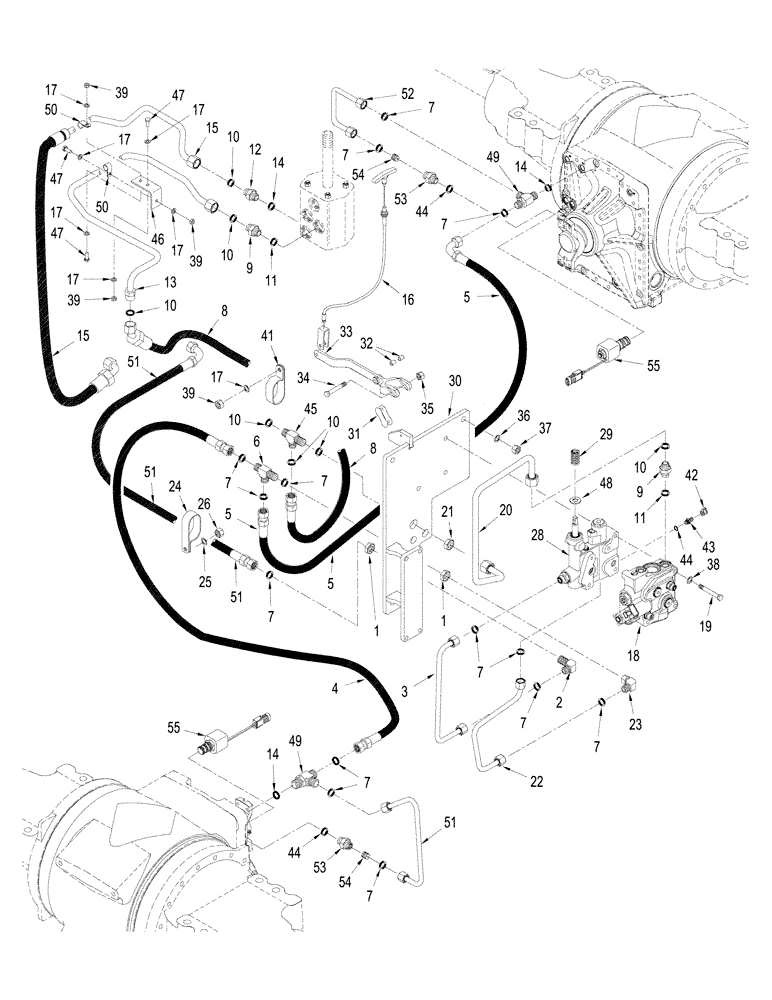

Схема запчастей Case IH STX430 - (07-04) - 450 SERIES AXLE - PARK BRAKE CIRCUIT, WITH DIFFERENTIAL LOCK (07) - BRAKES
21
36
55
17
47
39
19
9
8
17
45
42
16
30
51
14
7
10
7
51
10
5
17
44
4
24
31
3
39
7
17
32
7
50
14
15
54
7
7
33
50
49
2
1
5
20
7
13
7
6
11
39
54
11
49
15
1
14
43
38
8
18
47
48
29
7
35
17
7
34
44
10
17
51
53
41
22
10
47
46
23
55
10
9
25
28
39
5
26
10
12
51
53
7
44
17
52
37

Артикул

Название

Примечание

Количество

1

701-903

NUT,13/16" - 16

1шт.

2

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 7

1шт.

3

449796A1

TUBE

Tow Valve to Mounting Bracket

1шт.

4

361955A1

HOSE ASSY.

2286 mm (90 in)

1шт.

5

418814A1

HOSE

2184 mm (86 in)

1шт.

6

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 7

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

15шт.

8

87309670

HOSE

1170 mm (46")

1шт.

8

87610024

HOSE ASSY.

1170 mm (46")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

9

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Inc. 10, 11

2шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

7шт.

11

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

12

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 10, 14

1шт.

13

87345208

TUBE,15.90 mm OD

Brake Supply

1шт.

14

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

3шт.

15

87365244

TUBE,15.9 mm OD

Return

1шт.

15

87610054

TUBE,15.9 mm OD

Return

1шт.

Arctic QUADTRAC Tractor Application

1шт.

16

349863A2

CABLE

Tow Valve, See Figure 08-17 for Mounting & Parts

1шт.

18

87672094

VALVE

Regulator, See Figure: 08-14

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

19

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

3шт.

20

449827A2

TUBE

Regulator Valve to Mounting Plate

1шт.

21

701-919

BHD LOCK NUT,1" - 14

1шт.

22

449798A1

TUBE

Lower Tow Valve to Mounting Plate

1шт.

23

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 7

1шт.

24

515-24206

CLAMP,13/16", Insul, 7/16" Bolt

2шт.

25

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

27

87424332

HOSE ASSY.

1298mm (51 in)

1шт.

28

87679712

VALVE

Control, Tow Block, See Figure: 08-16

1шт.

29

361897A1

SPRING

1шт.

30

449830A1

PLATE ASSY.

Mounting, Tow Valve

1шт.

31

242-4412

CHAIN LINK

Tow Valve Arm

1шт.

32

392748A1

SPACER

2шт.

33

390918A3

ARM

Tow Valve

1шт.

34

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

1шт.

35

832-10406

NUT,M6 x 1, Cl 8

1шт.

36

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

37

829-1412

NUT,M12, Cl 10.9

3шт.

38

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

39

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

7шт.

41

L111928

CLAMP

Hose

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 42, 43

1шт.

42

H434163

DUST CAP

1шт.

43

NSS

NOT SOLD SEPARAT

Fitting, Diagnostic, Inc. 44

1шт.

44

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

45

701-429

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

Inc. 53

1шт.

46

87345210

BRACKET

Mounting

1шт.

47

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

48

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

49

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 7, 14

2шт.

50

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

2шт.

51

416276A1

TUBE

Jumper, Rear Axle

1шт.

52

416282A1

TUBE

Jumper, Front Axle

1шт.

341195A1

ORIFICE

Inc. 7, 44, 53 & 54

2шт.

53

NSS

NOT SOLD SEPARAT

Connector, 13/16" fcsl x M14 orb

2шт.

54

NSS

NOT SOLD SEPARAT

Screw, set, Hex Soc. M8 x 12, Cup Pt.

1шт.

55

384977A1

VALVE

Solenoid, Differential Lock, See Figure: 07-12

2шт.
