Запчасти Case IH STX430 (07-03) - 450 SERIES AXLE - SERVICE BRAKE CIRCUIT (07) - BRAKES

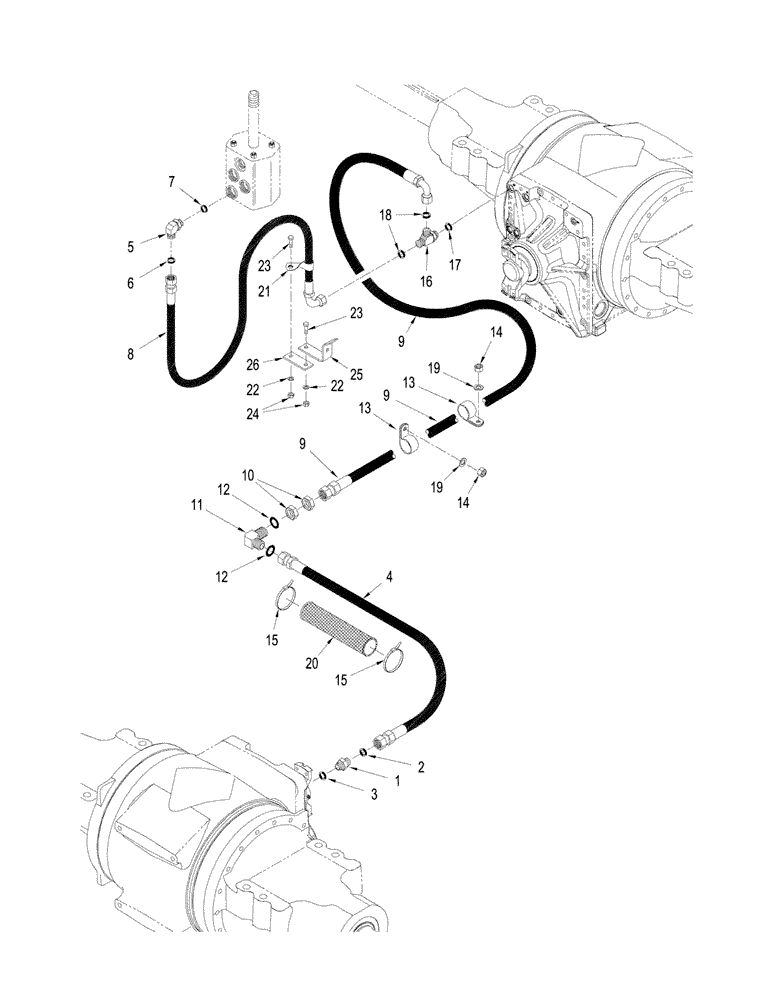

Схема запчастей Case IH STX430 - (07-03) - 450 SERIES AXLE - SERVICE BRAKE CIRCUIT (07) - BRAKES
23
15
12
17
12
25
9
3
8
16
18
10
20
5
14
23
19
2
24
1
4
13
14
9
22
9
7
15
26
22
13
19
6
21
11

Артикул

Название

Примечание

Количество

1

401760A1

VALVE

Check, 13/16" fc sl x 22 or, Inc. 2, 3

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

392132A1

HOSE ASSY.

2125 mm (84")

1шт.

5

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 6, 7

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

8

87364344

HOSE

1105 mm (43-1/2")

1шт.

9

353609A1

HOSE ASSY.

2115 mm (83")

1шт.

10

701-903

NUT,13/16" - 16

2шт.

11

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 12

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

13

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

2шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

16

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 17, 18

1шт.

17

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

20

S120426

TUBE

Protection

1шт.

21

R43926

CLAMP

90 Twist, 3/4"

1шт.

22

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

23

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

24

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

25

394446A1

PLATE

Mounting

1шт.

26

L50641

CONNECTING STRIP

Bracket

1шт.

Выбрано товаров: 26
