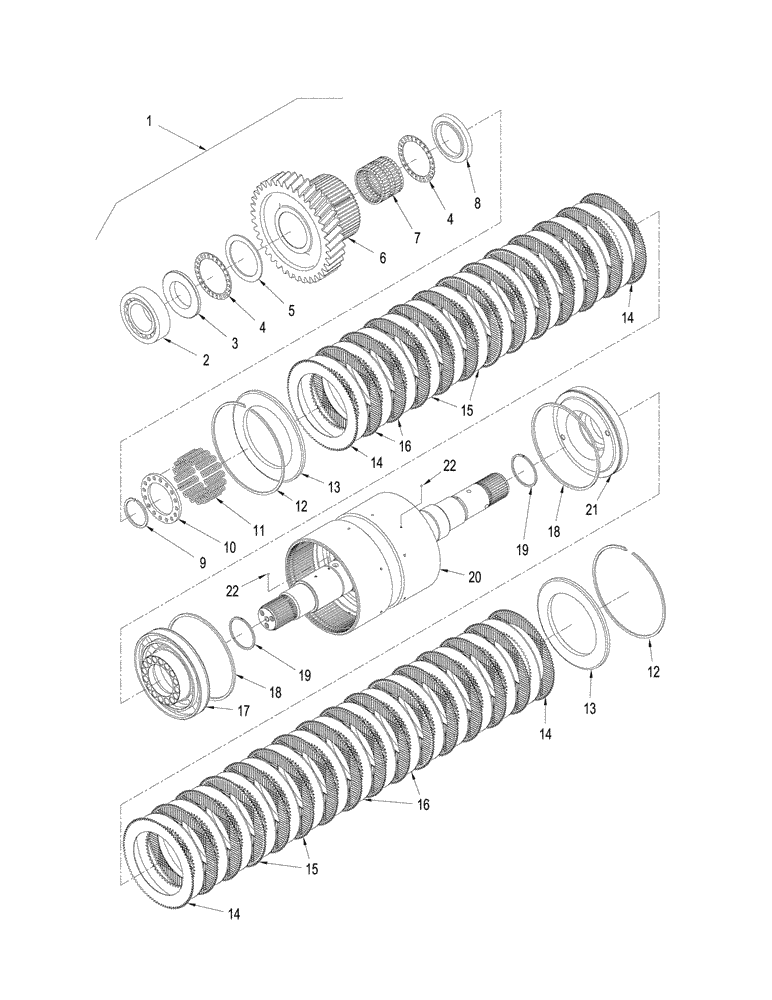

Запчасти Case IH STX430 (06-58) - POWER SHIFT TRANSMISSION - FIFTH SHAFT ASSEMBLY (06) - POWER TRAIN

1

87350349

CLUTCH INPUT SHAFT

Fifth, 8C, Inc. 2 - 22, Also See Figure: 06-59

1шт.

1

87350342

CLUTCH INPUT SHAFT

Fifth, 8,5C, Inc. 2 - 22, Also See Figure: 06-59

1шт.

2

428675A1

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

Taper

2шт.

3

364831A1

THRUST WASHER

2шт.

4

87640391

THRUST BEARING

4шт.

5

358908A1

THRUST WASHER

2шт.

6

87350355

DRIVEN GEAR

5R

1шт.

7

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

4шт.

8

87350321

THRUST WASHER

1шт.

9

S5040S00F

RING

Retaining

4шт.

10

362615A1

PLATE

Spring Retaining

1шт.

11

364833A1

SPRING

Return

16шт.

12

428108A1

RING, SNAP

RING SNAP

2шт.

13

87350360

PLATE

8C

2шт.

13

370554A1

CLUTCH DISC

CLUTCH DISK 8,5C

2шт.

14

370555A1

CLUTCH DISC

CLUTCH DISK Faced

4шт.

15

S4070S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK If Used, 2,4 mm (0.094 in)

1шт.

15

S4110S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK If Used, 2,1 mm (0.083 in)

1шт.

16

370556A1

CLUTCH DISC

CLUTCH DISK Faced

25шт.

17

370558A1

PISTON

8" RR Clutch

1шт.

18

87431400

RING

Seal

2шт.

19

S4410S00F

RING

Seal

2шт.

20

87350368

SHAFT

Drum, 8C

1шт.

20

87350363

SHAFT

Drum, 8,5C

1шт.

21

370562A1

PISTON

8" FR Clutch

1шт.

22

S14701960

BALL,3.968mm OD

2шт.
