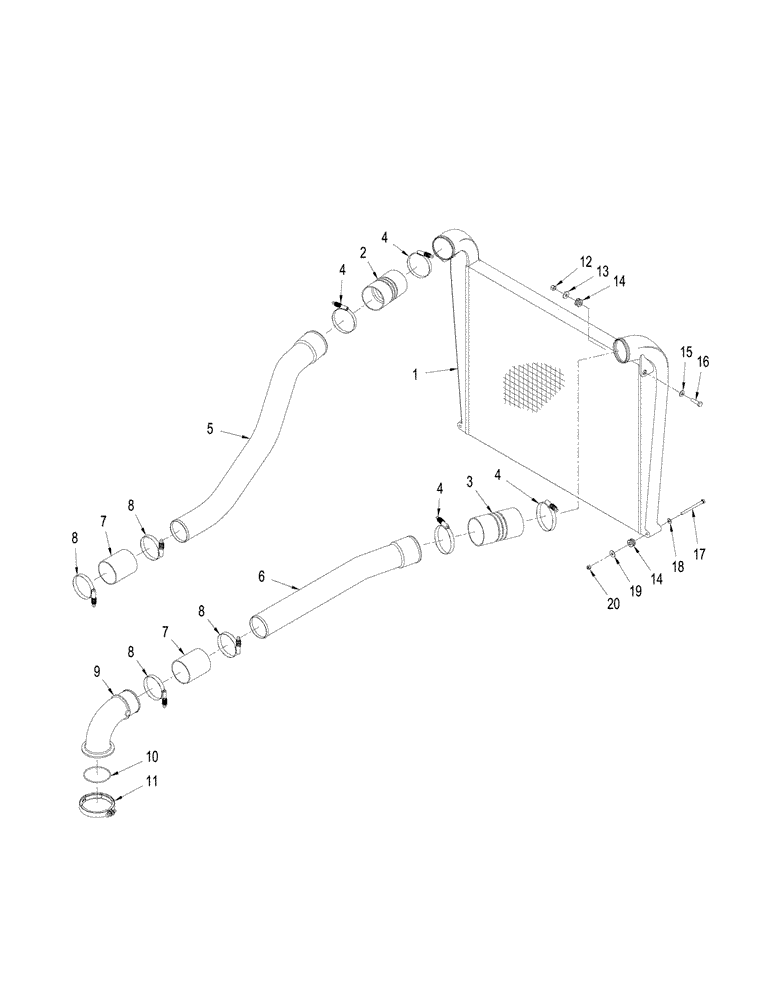

Запчасти Case IH STX430 (02-10) - AIR COOLER MOUNTING, STX & STEIGER 380 / 430 (02) - ENGINE

1

87306420

AFTERCOOLER

Charged Air, 19.6 FPI

1шт.

2

251400A1

BELLOWS

Tube, LH

1шт.

3

87306140

BELLOWS

Tube, RH

1шт.

4

L124635

HOSE CLAMP

4шт.

5

87303966

AIR INTAKE TUBE,3.50" OD

Charged Air, LH

1шт.

6

87439767

AIR INTAKE TUBE,88.9-101.6 mm OD x 774.7, 48.1 mm L

Charged Air, RH

1шт.

7

87340760

INTAKE AIR HOSE,88.90 mm ID x 110.00

Connector

2шт.

8

87599619

CLAMP,90.5mm - 98.3mm

Hose

4шт.

9

87304473

ELBOW

90

1шт.

10

238-6240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

1шт.

11

87304529

SPECIAL CLAMP,125mm - 129mm

T-Bolt Constant Torque

1шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

13

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

14

434177A1

ISOLATOR

4шт.

15

496-41041

WASHER,13/32" x 1 1/8" x .134"

2шт.

16

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

17

827-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 10.9

2шт.

18

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

19

496-41034

WASHER,.344" x 1" x .098", HDN

2шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.
