Запчасти Case IH STX430 (06-21) - VALVE ASSEMBLY - POWER TAKE OFF (06) - POWER TRAIN

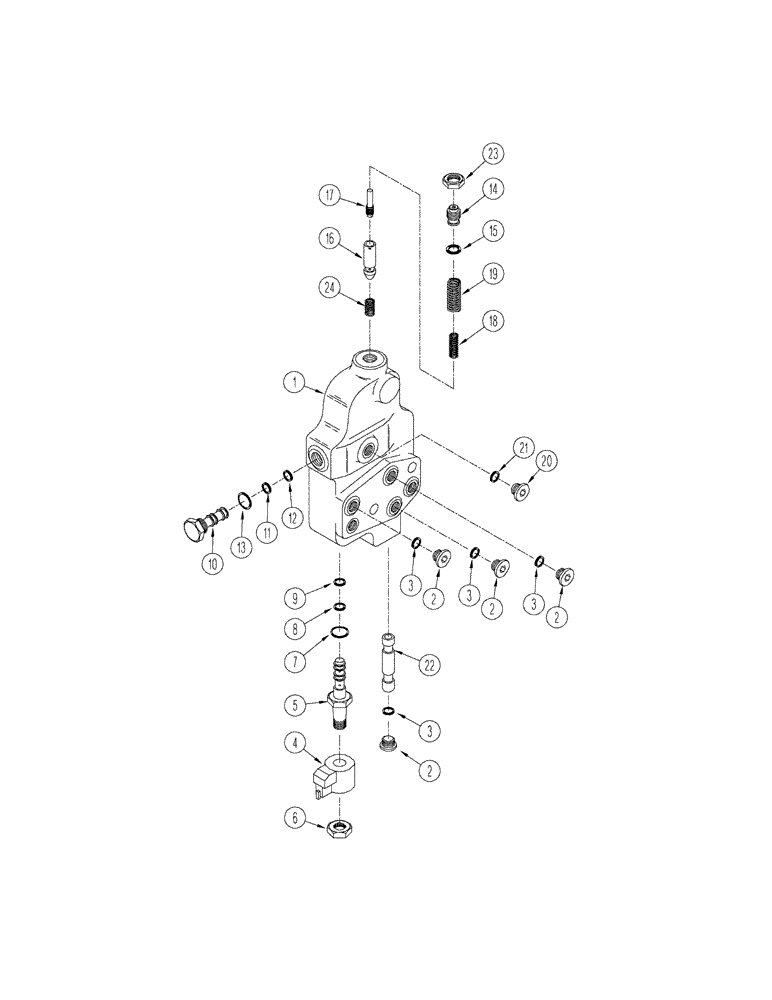

Схема запчастей Case IH STX430 - (06-21) - VALVE ASSEMBLY - POWER TAKE OFF (06) - POWER TRAIN
19
7
1
22
12
20
2
3
4
3
15
18
16
24
3
13
3
9
21
6
5
17
2
2
14
23
8
2
11
10

Артикул

Название

Примечание

Количество

87697993

VALVE

Power Takeoff, Inc. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

221578A1

PLUG,M18 x 1.5 ORB

Incl. 3

4шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

318822A1

SOLENOID VALVE

Incl. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

Coil

1шт.

5

NSS

NOT SOLD SEPARAT

Valve, Solenoid

1шт.

6

NSS

NOT SOLD SEPARAT

Nut

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

9

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

315514A1

PLUG

Inc. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

Plug

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

345794A1

PLUG

Inc. 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Plug

1шт.

15

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

16

87697995

SLEEVE

1шт.

17

319665A1

PISTON

1шт.

18

319661A1

SPRING

Inner

1шт.

19

319660A1

SPRING

Outer

1шт.

20

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl. 21

1шт.

21

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

22

320036A1

SPOOL

1шт.

23

322118A1

SPECIAL NUT

1шт.

24

319659A1

SPRING

1шт.

Выбрано товаров: 28
