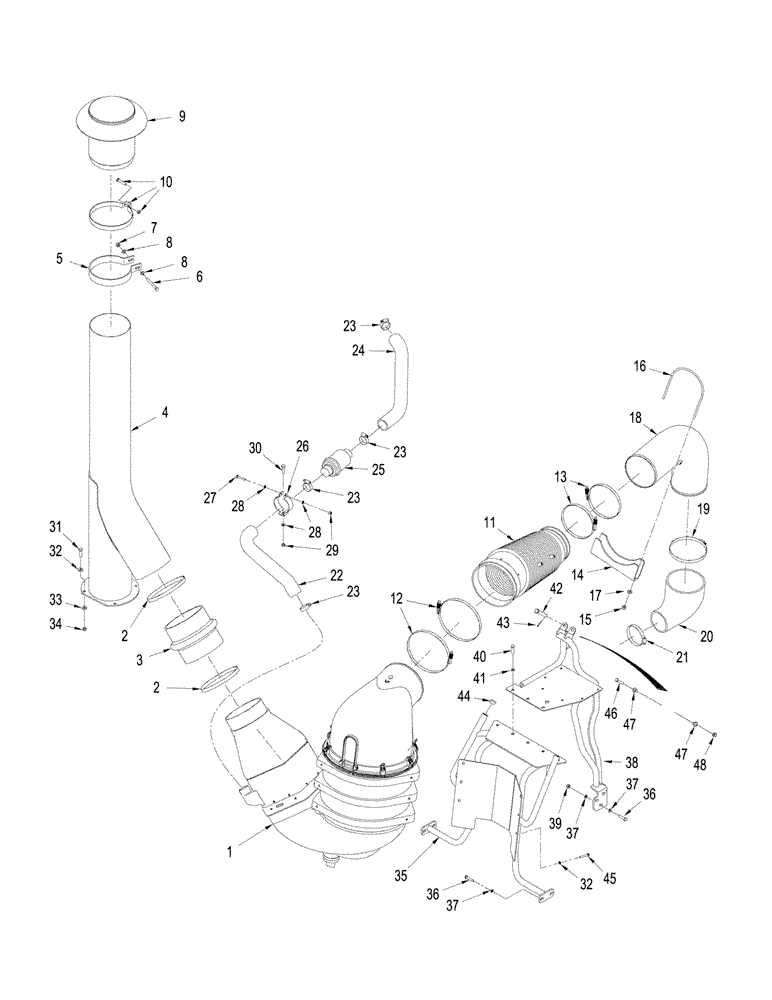

Запчасти Case IH STX430 (02-07) - AIR INDUCTION SYSTEM, STX & STEIGER 380 / 430 (02) - ENGINE

1

87444727

AIR CLEANER

See Figure: 02-09

1шт.

2

214-32144

HOSE CLAMP,8-1/4" - 9-1/8", HD Worm, W/ Liner

2шт.

3

87443802

HOSE

8"

1шт.

4

87673448

AIR INTAKE TUBE

1шт.

Wheel Tractor

1шт.

4

87673446

AIR INTAKE TUBE

1шт.

For Decelerator Switch, See Figure 09-21

1шт.

5

87443670

COLLAR CLAMP

1шт.

6

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

1шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

9

87443716

PRESCREENER ASSY.

Air Intake Cap, Inc. 10

1шт.

10

87443800

COLLAR CLAMP

Intake Pre-Screen

1шт.

11

87367573

AIR DUCT

Intake

1шт.

12

87443916

SPECIAL CLAMP,8.75" - 9.62", Worm Gear

2шт.

13

87437258

CLAMP,6.75" - 7.62", Worm Gear

2шт.

14

87309822

BRACKET, SUPPORTING

Intake

1шт.

15

231-1445

NUT,5/16"-18, GB

2шт.

16

87310919

U-BOLT

7"

1шт.

17

495-11034

WASHER,5/16", SAE

2шт.

18

87303963

AIR INTAKE TUBE,177.80 mm OD x 495.60, 361.50 mm L

1шт.

19

214-32128

HOSE CLAMP,7-1/4" - 8-1/8", HD Worm, W/ Liner

1шт.

20

87342642

AIR INTAKE TUBE

Rubber

1шт.

21

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

1шт.

22

87304386

HOSE,50.80 mm ID x 375.0 mm

Aspirator, Air Cleaner to Check Valve

1шт.

23

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

4шт.

24

87304384

HOSE,50.80 mm ID x 374.70 mm

Aspirator, Check Valve to Muffler

1шт.

25

87443913

VALVE

Check

1шт.

26

87300581

CLAMP

Check Valve

1шт.

27

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

1шт.

28

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

29

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

30

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

31

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

32

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

10шт.

33

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

34

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

35

87521399

SUPPORT

Hood, Rear

1шт.

36

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

37

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

10шт.

38

87389398

SUPPORT

Hood, Serial Range: -Z7F105709

1шт.

38

87589707

SUPPORT

Hood, Start Serial: Z7F105709

1шт.

39

829-1412

NUT,M12, Cl 10.9

3шт.

40

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

41

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

42

728-16100

CLEVIS PIN,M16 x 100

, Serial Range: -Z7F105709

1шт.

43

733-4032

COTTER PIN,M4 x 32

, Serial Range: -Z7F105709

1шт.

44

353-408

PLUG,Dome, .750" hole, Nylon

2шт.

45

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

6шт.

46

828-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

, Start Serial: Z7F105709

1шт.

47

87550203

GUIDE BUSHING

Latch Pin, Start Serial: Z7F105709

2шт.

48

829-1310

NUT,M10, Cl 10

, Start Serial: Z7F105709

2шт.
