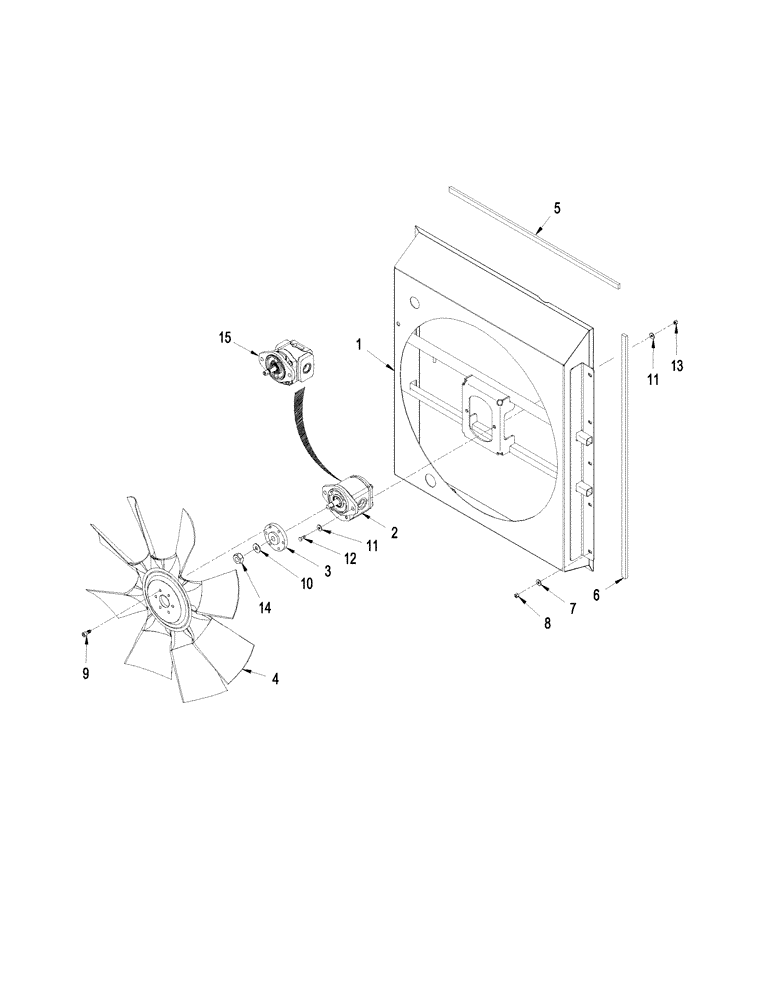

Запчасти Case IH STX425 (02-03[03]) - HYDRAULIC FAN DRIVE - MOUNTING (02) - ENGINE

1

429325A3

SHROUD

1шт.

2

87409411

HYDRAULIC MOTOR

Fan Drive, Haldex, 29cc, See Figure: 02-03 (01)

1шт.

If Replacing 87409411 Hydraulic Fan Motor Order 87578862 Hydraulic Fan Service Kit.

1шт.

87409411R

REMAN-HYD MOTOR

STX425, STX450, STX500 All 4WD TRACTOR (AFTER S/N JEE0099501)

1шт.

87409411C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

3

429329A1

HUB

1шт.

4

414577A1

FAN

32 in

1шт.

5

414616A1

SEAL

2шт.

6

414617A1

SEAL

2шт.

7

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

10шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

10шт.

9

863-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

6шт.

10

495-11066

WASHER,5/8", SAE

1шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

12

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

13

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

14

429-1110

NUT,5/8"-18, G8

1шт.

15

87356898

HYDRAULIC MOTOR

Fan Drive, Parker, If Used, See Figure: 02-03 (02)

1шт.

The Part will be used if the Haldex Fan Motor 87409411 has been upgraded with Parker Fan Motor 87356898 found in Hydraulic Fan Service Kit 87578862.

1шт.

87578862

KIT

Hydraulic Fan Service, Inc. 5, Also See Figure: 08-44 (02)

1шт.
