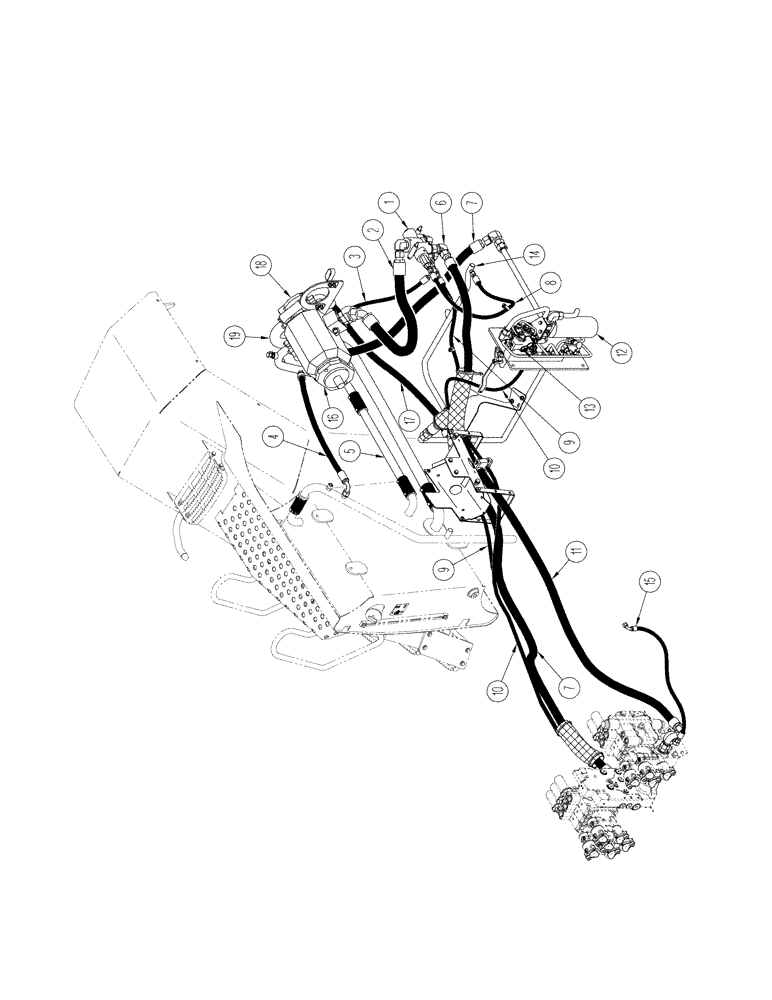

Запчасти Case IH STX425 (01-12) - PICTORIAL INDEX - CHARGE PUMP AND AUXILIARY REMOTE CIRCUIT WITH HIGH OUTPUT HYDRAULICS (00) - PICTORIAL INDEX

1

Valve, Priority, See Figure 08-28

1шт.

2

Hose, Priority Valve Supply, See Figures 08-24

1шт.

3

Hose, Pump Load Sense, See Figures 08-24

1шт.

4

Hose, Case Drain, See Figures 08-24

1шт.

5

Tube, Charge Pressure Supply, See Figures 08-24

1шт.

6

Hose, Return, See Figures 08-17, 08-18

1шт.

7

Hose, Auxiliary Remote Valve Supply, See Figures 08-17, 08-18

1шт.

8

Hose, Priority Valve Return, See Figure 08-24

1шт.

9

Hose, Auxiliary Remote Load Sense, See Figure 08-17, 08-18

1шт.

10

Hose, Gear Pump Pilot Pressure, Electronic Remotes, See Figure 08-18

1шт.

11

Hose, Auxiliary Remote Return, See Figure 08-17, 08-18

1шт.

12

Filter, Main Hydraulic, See Figure 08-04

1шт.

13

Valve, Regulator, See Figure 08-013

1шт.

14

Tube, Return, See Figure 08-05, 08-07

1шт.

15

Hose, Pilot Pressure Return To Rear Axle, See Figure 08-06, 08-10

1шт.

16

Pump, Piston, See Figure 08-26

1шт.

17

Hose, Charge Pump Outlet, See Figure 08-24

1шт.

18

Pump, Gear, See Figure 08-27

1шт.

19

Tube, Gear Pump Supply, See Figure 08-24

1шт.
