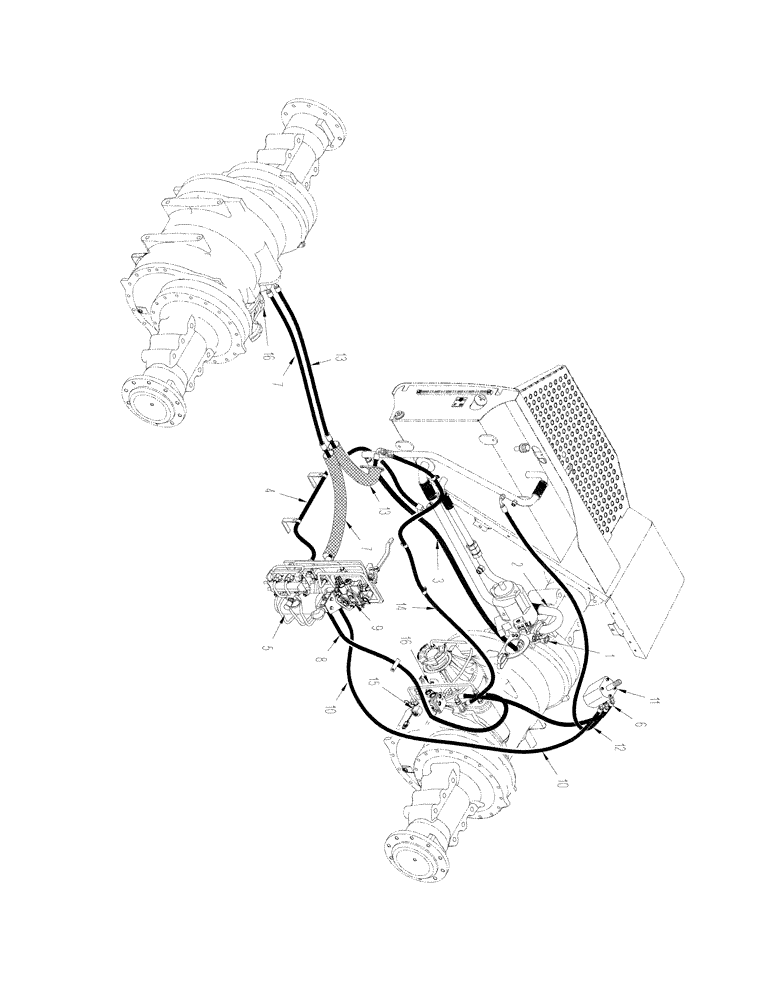

Запчасти Case IH STX425 (01-09[02]) - PICTORIAL INDEX - CHARGE PUMP AND BRAKE CIRCUIT, 500 SERIES AXLE, QUADTRAC TRACTOR, ASN JEE0102001 (00) - PICTORIAL INDEX

1

Pump, Gear, See Figure 08-27

1шт.

2

Tube, Gear Pump Supply From Tank, See Figure 08-20, 08-24

1шт.

3

Hose, Gear Pump To Charge Return Tube, See Figure 08-20, 08-24

1шт.

4

Hose, Tow Valve Supply, See Figure 07-10 (01), 07-11 (01)

1шт.

5

Filter, System Valve Assembly, See Figure 08-04

1шт.

6

Hose, Service Brake Line, See Figure 07-09

1шт.

7

Hose, Tow Valve Supply For Rear Axle Park Brake, See Figure 07-10 (01), 07-11 (01)

1шт.

8

Hose, Tow Valve Supply For Front Axle Park Brake, See Figure 07-10 (01), 07-11 (01)

1шт.

9

Valve, Regulator, See Figure 08-13

1шт.

10

Hose, Regulator Output To Brake Valve, See Figure 07-10 (01), 07-11 (01)

1шт.

11

Valve, Brake, See Figure 07-02

1шт.

12

Hose, Brake Valve Return To Tank, See Figure 07-10 (01), 07-11 (01)

1шт.

13

Hose, Service Brake To Rear Axle, See Figure 07-09

1шт.

14

Hose, Service Brake To Front Axle, See Figure 07-09

1шт.

15

Solenoid, Differential Lock, See Figure 08-43

1шт.

Used with Differential Lock Applications

1шт.

16

Tube, Differential Lock, See Figure 07-11 (01)

1шт.

Used with Differential Lock Applications

1шт.
