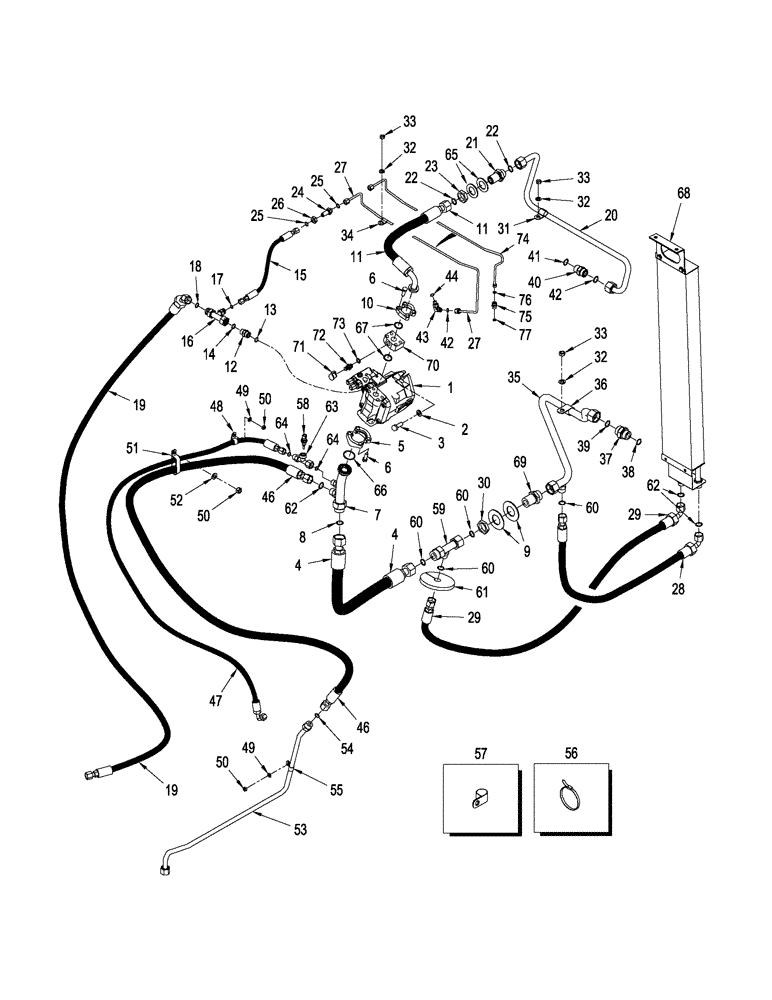

Запчасти Case IH STX425 (08-44[02]) - HYDRAULICS - FAN DRIVE CIRCUITRY (08) - HYDRAULICS

1

413152A1

PUMP

See Figure 08-44 (01)

1шт.

413152A1R

REMAN-HYD PUMP

STX425, STX450, STX500, All ASN JEE0099501

1шт.

413152A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

3

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

4

434126A1

HOSE ASSY.

686 mm (27 in)

1шт.

4

87424312

HOSE ASSY.

686 mm (27 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

5

A12301

CLAMP,Half

2шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

7

434526A1

TUBE

Inc. 8, 9

1шт.

8

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

9

431802A1

WASHER,40mm ID x 80mm OD x 3.8mm Thk

2шт.

10

A16961

FLANGE

2шт.

11

430383A1

HOSE ASSY.,19.05mm ID x 660mm L

660 mm (26 in)

1шт.

11

87424313

HOSE ASSY.

660 mm (26 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

12

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 13, 14

1шт.

13

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

414900A1

HOSE ASSY.

431 mm (17 in)

1шт.

15

87346290

HOSE

482 mm (19 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

16

442615A1

TUBE

Inc. 17,18

1шт.

17

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

430339A1

HOSE ASSY.

2622mm ( 103 in)

1шт.

19

87424316

HOSE ASSY.

2622 mm (103 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

20

429839A2

TUBE

Pressure

1шт.

20

87596017

HYD TUBE,14.23 mm ID x 19.05 mm OD

Pressure, If Used

1шт.

Used with Parker Hydraulic Fan Motor 87356898 and Included In Hydraulic Fan Service Kit 87578862.

1шт.

21

701-140

UNION,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

Inc. 22

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

23

701-1249

BHD LOCK NUT,1-3/16" - 12

1шт.

24

701-108

UNION,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS

Inc. 25

1шт.

25

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

26

701-1254

BHD LOCK NUT,9/16" - 18

1шт.

27

430313A1

TUBE

Case Drain

1шт.

28

434121A1

HOSE ASSY.

540 mm ( 21-1/4 in)

1шт.

28

87424319

HOSE ASSY.

540 mm (21-1/4 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

29

434122A1

HOSE ASSY.

692 mm ( 27 in)

1шт.

29

87424320

HOSE ASSY.

692 mm (27-7/16 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

30

701-908

BHD LOCK NUT,1-7/16" - 12

1шт.

31

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

2шт.

32

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

33

829-1410

NUT,M10 x 1.5, Cl 10.9

5шт.

34

515-2563

CLAMP,1/4", Insul, 1/2" Bolt

2шт.

35

431929A1

TUBE

Fan Return

1шт.

35

87596020

HYD TUBE,21.2 mm ID x 25.4 mm OD x 385, 335 mm L

Fan Return, If Used

1шт.

Used with Parker Hydraulic Fan Motor 87356898 and Included In Hydraulic Fan Service Kit 87578862.

1шт.

36

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

37

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 38, 39

1шт.

38

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

39

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

40

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Inc. 41, 42

1шт.

41

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

42

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

43

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Inc. 44, 45

1шт.

44

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

45

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

46

414898A1

HOSE ASSY.

1727 mm (68 in)

1шт.

46

87424317

HOSE ASSY.

1727 mm (68 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

47

434252A2

HOSE ASSY.

2159 mm (85 in)

1шт.

47

87346293

HOSE

2223 mm (87-1/2 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

48

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

6шт.

49

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

50

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

51

R54363

CLAMP

2шт.

52

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

53

414902A1

TUBE

Inc. 54

1шт.

54

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

55

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

56

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

57

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

(20.6 mm)

1шт.

57

515-22254

CLAMP,1", Insul, 5/16" Bolt

(25.4 mm)

1шт.

58

311620A1

SENSOR

1шт.

59

433891A1

TUBE

Inc. 60

1шт.

60

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

61

434257A1

SEAL

1шт.

62

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

63

434243A1

TUBE

Inc. 64

1шт.

64

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

65

431806A1

WASHER

2шт.

66

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

1шт.

67

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

68

433671A1

COOLER

1шт.

69

434004A1

VALVE, CHECK

1шт.

70

445675A1

BLOCK

Hydraulic

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 71 - 73

1шт.

71

H434163

DUST CAP

1шт.

72

NSS

NOT SOLD SEPARAT

Fitting, Diagnostic

1шт.

73

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

74

87596022

HYD TUBE,4.57 mm ID x 6.35 mm OD

Case Drain, If Used

1шт.

Used with Parker Hydraulic Fan Motor 87356898 and Included In Hydraulic Fan Service Kit 87578862.

1шт.

75

87530057

FITTING

Long, Inc. 76 & 77

1шт.

Used with Parker Hydraulic Fan Motor 87356898 and Included In Hydraulic Fan Service Kit 87578862.

1шт.

76

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Used with Parker Hydraulic Fan Motor 87356898 and Included In Hydraulic Fan Service Kit 87578862.

1шт.

77

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Used with Parker Hydraulic Fan Motor 87356898 and Included In Hydraulic Fan Service Kit 87578862.

1шт.

87578862

KIT

Hydraulic Fan Service, Inc. 20, 36, 74 - 77 Also See Figure: 02-03 (03)

1шт.
