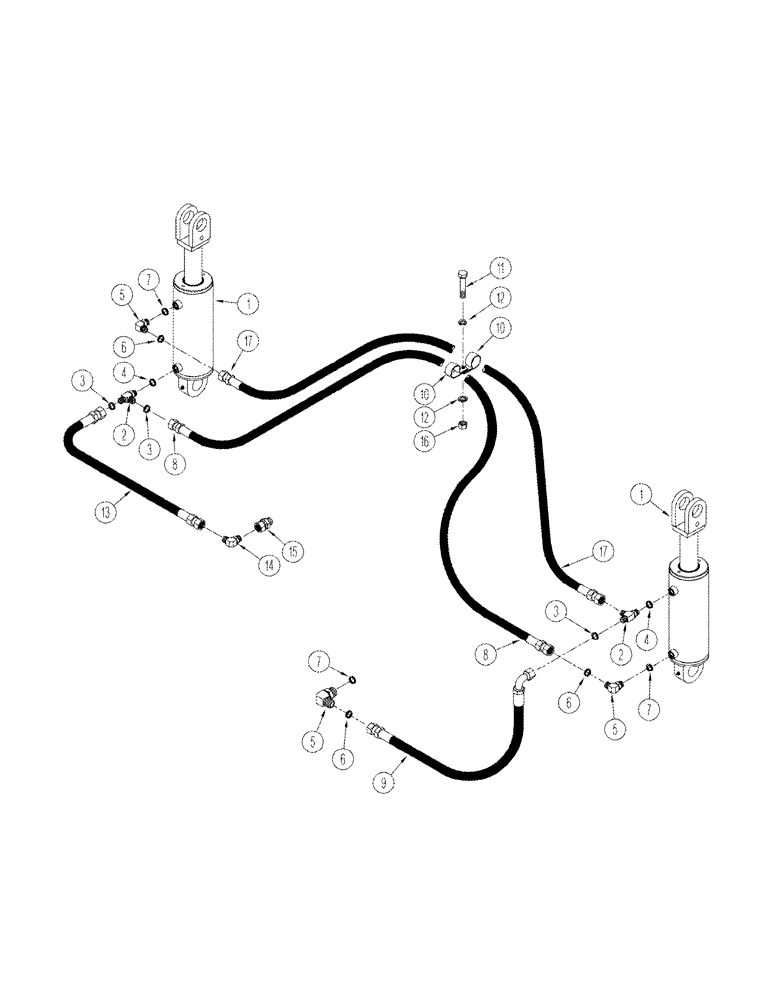

Запчасти Case IH STX425 (08-40) - THREE POINT HITCH HYDRAULICS - MANUAL HITCH, BSN JEE0102592 (08) - HYDRAULICS

1

403206A1

CYLINDER ASSY.

See Figure 08-42

2шт.

2

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 3, 4

2шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

4

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

5

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 6, 7

3шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

7

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

8

363126A1

HOSE ASSY.

1645 mm (65 in), Pressure

1шт.

9

359756A1

HOSE ASSY.

320 mm (12-1/2 in)

1шт.

10

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

4шт.

11

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

13

430747A1

HOSE ASSY.

670 mm (26 in)

1шт.

14

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

1шт.

15

1-7141

FITTING

1шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

17

394732A1

HOSE ASSY.

1410 mm (55-1/2 in), Return

1шт.
