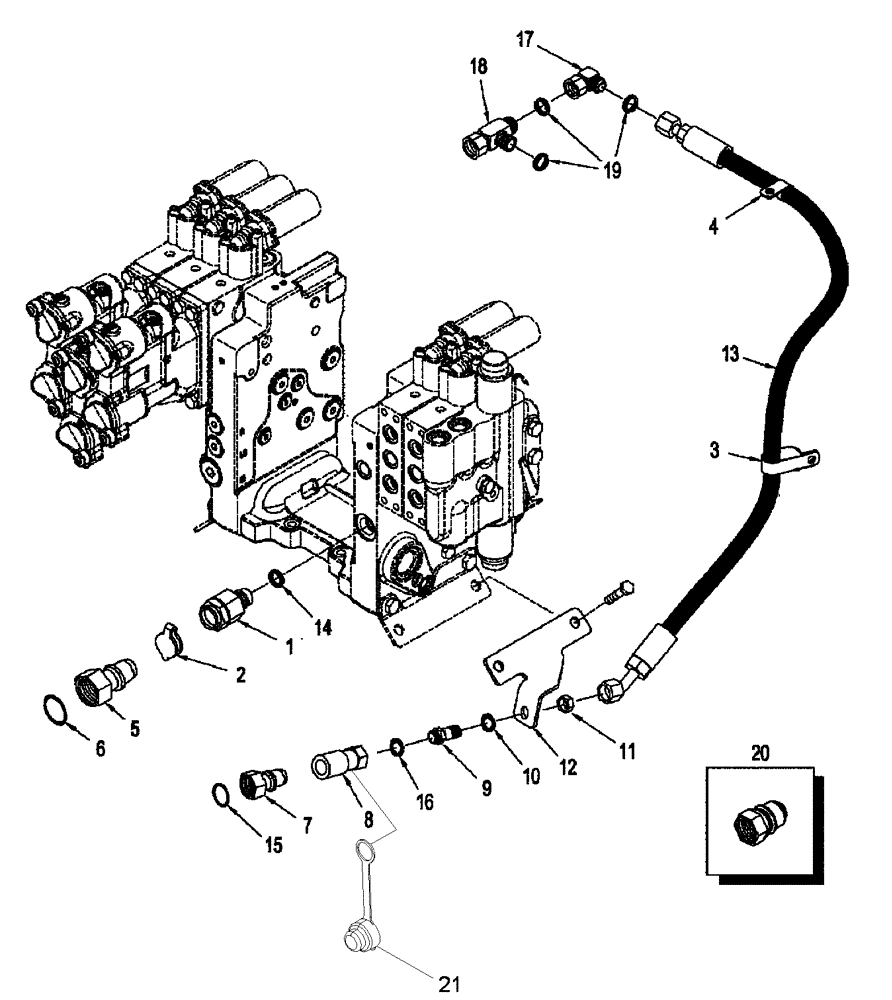

Запчасти Case IH STX425 (08-37) - MOTOR RETURN (08) - HYDRAULICS

1

298291A1

COUPLING, QUICK, FEM,Assembly, 3/4"

Hydr., 3/4 in, Auxiliary, Main Return

1шт.

1

445015A1

SEAL KIT

For Ref 1

1шт.

2

334216A1

CAP

Dust

1шт.

3

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

4

R54363

CLAMP

1шт.

5

347755A1

COUPLING,ISO 20, 3/4" x 1 1/16" - 12, Fem SAE ORB

Hydr., 3/4 in Male x 1-1/16 in Female orb, Inc. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

385358A1

QUICK MALE COUPLING,3/8"

Hydr., 1/2 in Male x 3/8 in Female orb, Inc. 15

1шт.

8

385357A1

COUPLING

Hydr., Female

1шт.

9

436249A1

FITTING

Fitting, 3/4 or x 13/16 fc sl, Inc. 10 & 16

1шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

701-903

NUT,13/16" - 16

Jam, M12

1шт.

12

442477A2

BRACKET

Motor Drain

1шт.

13

444060A1

HOSE ASSY.,12.7mm ID x 2171mm L

2171 mm (85 in)

1шт.

13

87424337

HOSE ASSY.

1651 mm (65 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

14

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1/2 fc sl, Incl. 19

1шт.

18

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1/2 fc sl, Inc. 19

1шт.

19

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

20

87335428

COUPLING

Implement Coupler, Steel, 1/2"-14 nptf

1шт.

20

87335430

COUPLING

Implement Coupler, Steel, 3/4"-16 orb

1шт.

20

87335431

FITTING

Implement Coupler, Steel, 7/8"-14 orb

1шт.

21

86539389

DUST CAP,29.2mm ID

1шт.

719517003

KIT

Motor Return / Power Beyond, Inc. 1 - 13, See Figure(s) : 08-14, 08-46

1шт.
