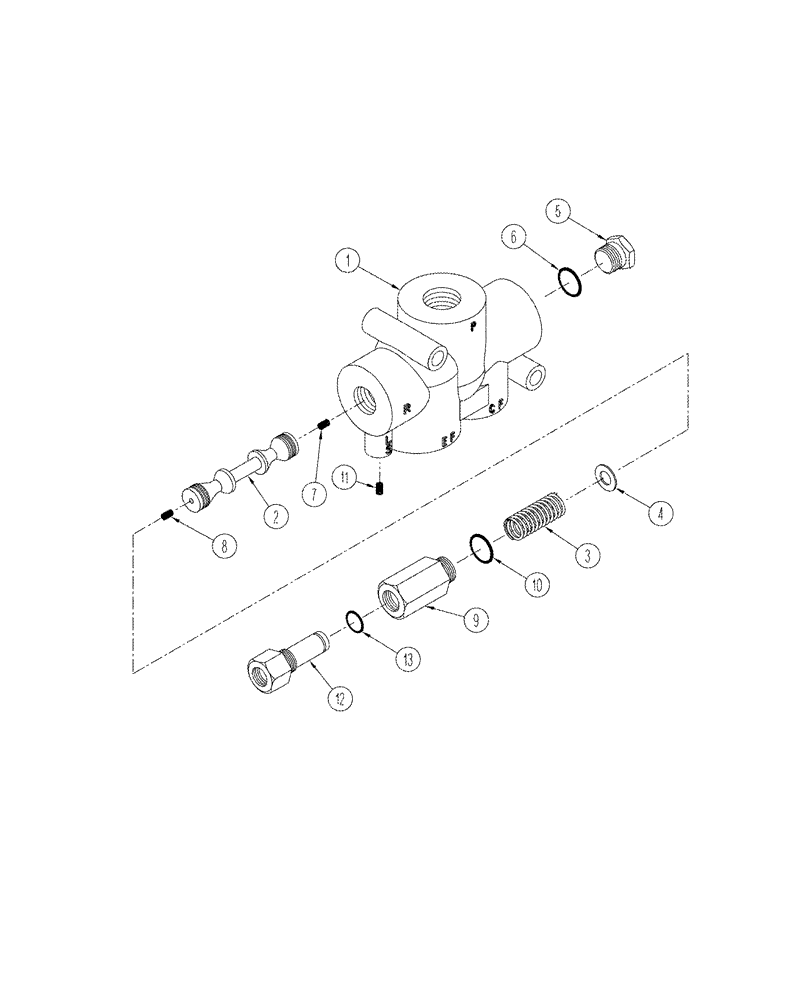

Запчасти Case IH STX425 (08-28) - HIGH OUTPUT HYDRAULICS - PRIORITY VALVE ASSEMBLY (08) - HYDRAULICS

337481A1

VALVE

Inc. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Piston

1шт.

3

NSS

NOT SOLD SEPARAT

Spring

1шт.

4

S302014

WASHER

1шт.

5

S302018

PLUG

Inc. 6

1шт.

6

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

O-Ring

1шт.

7

S300792

SCREW

Orifice

1шт.

8

S300791

SCREW

Orifice

1шт.

9

S302016

PLUG

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

Orifice

1шт.

12

370152A1

VALVE

Inc. 13

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring

1шт.
