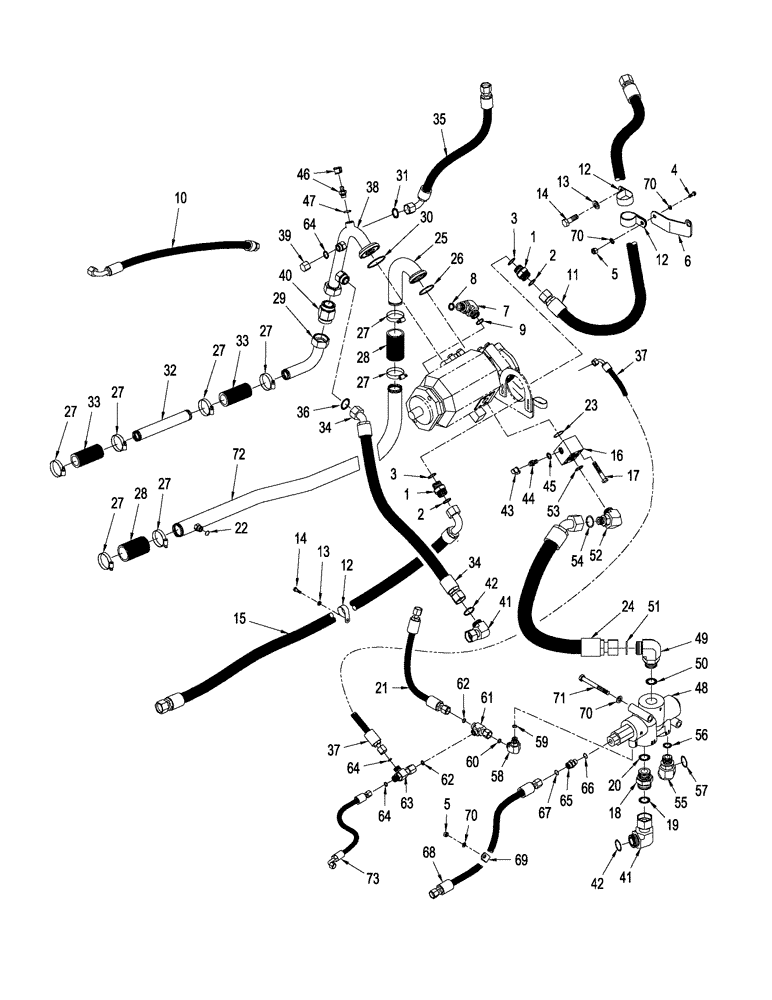

Запчасти Case IH STX425 (08-24) - HIGH OUTPUT HYDRAULICS - PUMP LUBRICATION CIRCUIT, BSN JEE0106701 (08) - HYDRAULICS

1

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Inc. 2, 3

2шт.

2

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

6

406576A1

BRACKET

1шт.

7

201-341

ELBOW,90 Degree, 1"-14 x 1 1/16"-12, Adj, ORFS

1 fc sl x 1-1/16 orb, Inc. 8, 9

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

327499A1

HOSE ASSY.

686 mm ( 26-1/2")

1шт.

With Advanced Farming Systems (AFS)

1шт.

10

363769A1

HOSE ASSY.

700 mm (27-1/2 in)

1шт.

With Power Shift Transmission

1шт.

10

437274A1S

HOSE ASSY.

700 mm (27-1/2 in)

1шт.

With Power Shift Transmission

1шт.

Arctic QUADTRAC Tractor Application

1шт.

11

412088A1

HOSE ASSY.

1663 mm (65 in)

1шт.

With Advanced Farming Systems (AFS)

1шт.

11

358860A1

HOSE ASSY.,25.4mm ID x 1625mm L

1625 mm (64 in)

1шт.

With Power Shift Transmission

1шт.

11

437271A1S

HOSE ASSY.

1625 mm (64 in)

1шт.

With Power Shift Transmission

1шт.

Arctic QUADTRAC Tractor Application

1шт.

12

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

3шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

14

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

15

412086A1

HOSE ASSY.

1шт.

With Advanced Farming Systems (AFS)

1шт.

15

335103A1

HOSE ASSY.,25.4mm ID x 1525mm L

1525 mm (60 in)

1шт.

With Power Shift Transmission

1шт.

15

437263A1S

HOSE ASSY.

1525 mm (60 in)

1шт.

With Power Shift Transmission

1шт.

Arctic QUADTRAC Tractor Application

1шт.

16

86992232

BLOCK

Pump

1шт.

17

461-35040

HEX SOC SCREW,1/2"-13 x 2 1/2"

4шт.

18

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1-7/16 fc sl x 33 Or, Inc. 19, 20

1шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

20

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

21

87418149

HOSE ASSY.

1416 mm (56 in), to Steering Control Unit / Load Sense

1шт.

21

87424323

HOSE ASSY.

1416 mm (56 in), to Steering Control Unit / Load Sense

1шт.

Arctic QUADTRAC Tractor Application

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1-1/2 ID x 1/16

1шт.

24

447177A1

HOSE ASSY.

622 mm ( 24-1/2 in)

1шт.

With Advanced Farming Systems (AFS)

1шт.

NOTE: If 412087A1 Hose is needed order 447177A1 Hose, 622mm (24-1/2 in), and 700-308 Elbow 90.

1шт.

24

446059A1

HOSE ASSY.,25.4mm ID x 568mm L

568 mm (22-3/8 in)

1шт.

NOTE: If 383351A1 Hose, 657mm (25-7/8 in), is needed order 446059A1 Hose, 568mm (22-3/8 in), and 700-308 Elbow 90.

1шт.

With Power Shift Transmission

1шт.

24

437285A1S

HOSE ASSY.

675 mm (26-1/2 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

25

405572A1

TUBE

1шт.

26

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

27

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

8шт.

28

31-2427

HOSE,2.00" ID x 6.00"

102 mm (4 in), Cut From 1-4568

2шт.

29

405578A1

TUBE

1шт.

With Advanced Farming Systems (AFS)

1шт.

29

413812A1

TUBE

1шт.

With Power Shift Transmission

1шт.

30

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

31

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

32

405713A2

TUBE

1шт.

With Advanced Farming Systems (AFS)

1шт.

32

413816A2

TUBE

1шт.

With Power Shift Transmission

1шт.

33

1-4571

HOSE

114 mm (4-1/2 in), Cut From 1-4482

2шт.

34

335104A2

HOSE ASSY.

925 mm (36 in)

1шт.

34

437264A1S

HOSE ASSY.

925 mm (36-13/32 in)

1шт.

With Power Shift Transmission

1шт.

Arctic QUADTRAC Tractor Application

1шт.

35

412085A1

HOSE ASSY.

826 mm (32-1/2 in)

1шт.

With Advanced Farming Systems (AFS)

1шт.

35

301409A1

HOSE ASSY.

885 mm (35 in)

1шт.

With Power Shift Transmission

1шт.

35

437253A1S

HOSE ASSY.

885 mm (35 in)

1шт.

With Power Shift Transmission

1шт.

Arctic QUADTRAC Tractor Application

1шт.

36

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

37

327471A1

HOSE

724 mm (28, Serial Range: in),-Compensator

1шт.

37

437257A1S

HOSE ASSY.

724 mm 928-1/2, Serial Range: in),-Compensator

1шт.

With Power Shift Transmission

1шт.

Arctic QUADTRAC Tractor Application

1шт.

38

405576A3

TUBE

Inc. 39, 64

1шт.

With Advanced Farming Systems (AFS)

1шт.

38

413810A3

TUBE

1шт.

With Power Shift Transmission

1шт.

39

701-900

CAP,11/16" - 16

1шт.

40

87411517

VALVE, CHECK

1-1/2

1шт.

41

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Inc. 42

2шт.

42

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 43 - 45

1шт.

43

H434163

DUST CAP

1шт.

44

NSS

NOT SOLD SEPARAT

Fitting, Diagnostic

1шт.

45

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

46

358968A1

FITTING

M18 orb x 1,5, Diagnostic, Inc. 47

1шт.

47

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

48

337481A1

VALVE

Priority, See Figure 08-28

1шт.

49

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 50, 51

1шт.

50

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

51

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

52

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 53, 54

1шт.

53

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

54

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

55

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

M20 fc sl x 2,7 orb, Inc. 56, 57

1шт.

56

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

57

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

58

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 59, 60

1шт.

59

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

60

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

61

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Inc. 62

1шт.

62

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

63

300209A1

VALVE

Shuttle

1шт.

64

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

65

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 66, 67

1шт.

66

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

67

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

68

397244A1

HOSE ASSY.

1180 mm (46 in)

1шт.

68

437292A1S

HOSE ASSY.

1105 mm (43-1/2 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

69

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

70

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

71

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

72

405574A1

TUBE

1шт.

With Advanced Farming Systems (AFS)

1шт.

72

413814A2

TUBE

1шт.

With Power Shift Transmission

1шт.

73

433213A2

HOSE ASSY.,9.53mm ID x 4267mm L

Priority Valve to Remote Manifold Inlet, 4242 mm (167")

1шт.
