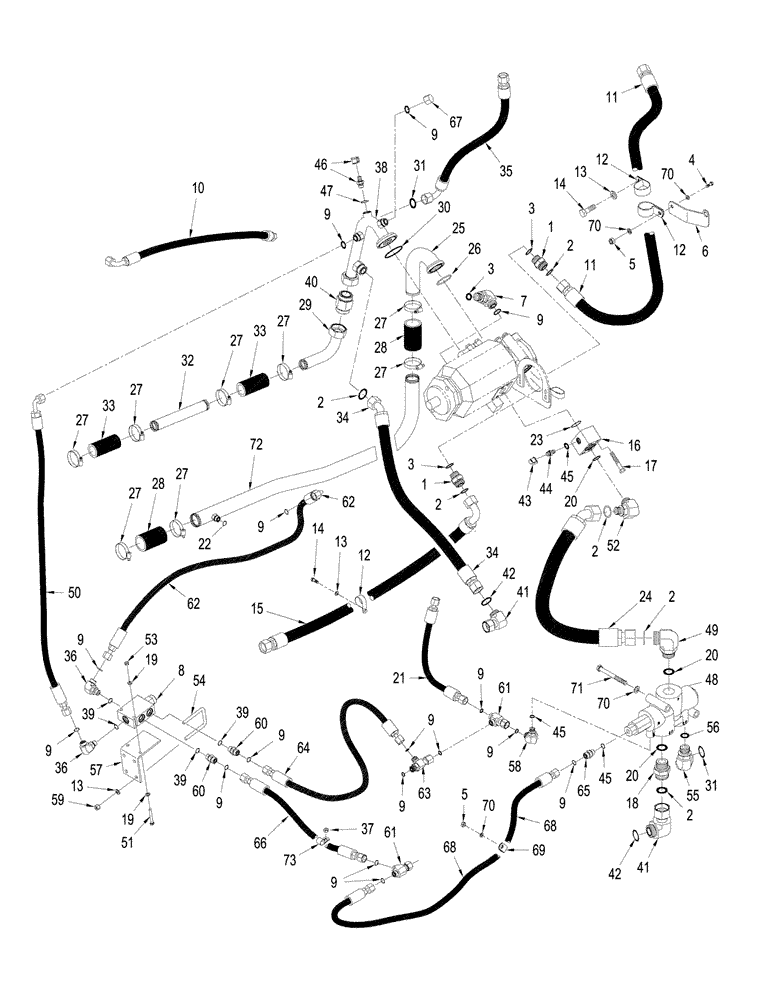

Запчасти Case IH STX425 (08-24[01]) - HIGH OUTPUT HYDRAULICS - PUMP LUBRICATION CIRCUIT, ASN JEE0106701 (08) - HYDRAULICS

1

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Inc. 2, 3

2шт.

2

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

6шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

3шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

6

406576A1

BRACKET

1шт.

7

201-341

ELBOW,90 Degree, 1"-14 x 1 1/16"-12, Adj, ORFS

1 fc sl x 1-1/16 orb, Inc. 3, 9

1шт.

8

87431772

PILOT VALVE

Destroke Pump

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

11шт.

10

327499A1

HOSE ASSY.

665 mm ( 26-1/2")

1шт.

With Manual Shift Transmission

1шт.

10

363769A1

HOSE ASSY.

700 mm (27-1/2 in)

1шт.

With Power Shift Transmission

1шт.

10

437274A1S

HOSE ASSY.

700 mm (27-1/2 in)

1шт.

With Power Shift Transmission

1шт.

Arctic QUADTRAC Tractor Application

1шт.

11

412088A1

HOSE ASSY.

1663 mm (65 in), to Right- Hand Front Filter

1шт.

With Manual Shift Transmission

1шт.

11

358860A1

HOSE ASSY.,25.4mm ID x 1625mm L

1625 mm (64 in), to Right-Hand Front Filter

1шт.

With Power Shift Transmission

1шт.

11

437271A1S

HOSE ASSY.

1625 mm (64 in), to Right-Hand Front Filter

1шт.

With Power Shift Transmission

1шт.

Arctic QUADTRAC Tractor Application

1шт.

12

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

3шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

14

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

15

412086A1

HOSE ASSY.

Charge Pump to Charge Return Tube

1шт.

With Manual Shift Transmission

1шт.

15

335103A1

HOSE ASSY.,25.4mm ID x 1525mm L

1525 mm (60 in), Charge Pump to Charge Return Tube

1шт.

With Power Shift Transmission

1шт.

15

437263A1S

HOSE ASSY.

1525 mm (60 in), Charge Pump to Charge Return Tube

1шт.

With Power Shift Transmission

1шт.

Arctic QUADTRAC Tractor Application

1шт.

16

86992232

BLOCK

Pump

1шт.

17

461-35040

HEX SOC SCREW,1/2"-13 x 2 1/2"

4шт.

18

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1-7/16 fc sl x 33 Or, Inc. 2, 20

1шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

20

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

3шт.

21

87418149

HOSE ASSY.

1416 mm (56 in), to Steering Control Unit / Load Sense

1шт.

21

87424323

HOSE ASSY.

1416 mm (56 in), to Steering Control Unit / Load Sense

1шт.

Arctic QUADTRAC Tractor Application

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1-1/2 ID x 1/16

1шт.

24

447177A1

HOSE ASSY.

622 mm ( 24-1/2 in)

1шт.

With Manual Shift Transmission

1шт.

NOTE: If 412087A1 Hose is needed order 447177A1 Hose, 622mm (24-1/2 in), and 700-308 Elbow 90.

1шт.

24

446059A1

HOSE ASSY.,25.4mm ID x 568mm L

568 mm (22-3/8 in)

1шт.

NOTE: If 383351A1 Hose, 657mm (25-7/8 in), is needed order 446059A1 Hose, 568mm (22-3/8 in), and 700-308 Elbow 90.

1шт.

With Power Shift Transmission

1шт.

24

437285A1S

HOSE ASSY.

675 mm (26-1/2 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

25

405572A1

TUBE

1шт.

26

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

27

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

8шт.

28

31-2427

HOSE,2.00" ID x 6.00"

102 mm (4 in), Cut From 1-4568

2шт.

29

405578A1

TUBE

1шт.

With Manual Shift Transmission

1шт.

29

413812A1

TUBE

1шт.

With Power Shift Transmission

1шт.

30

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

31

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

32

405713A2

TUBE

1шт.

With Manual Shift Transmission

1шт.

32

413816A2

TUBE

1шт.

With Power Shift Transmission

1шт.

33

1-4571

HOSE

114 mm (4-1/2 in), Cut From 1-4482

2шт.

34

335104A2

HOSE ASSY.

925 mm (36 in)

1шт.

34

437264A1S

HOSE ASSY.

925 mm (36-13/32 in)

1шт.

With Power Shift Transmission

1шт.

Arctic QUADTRAC Tractor Application

1шт.

35

412085A1

HOSE ASSY.

826 mm (32-1/2 in), Piston Pump Supply, from Steering Return Port

1шт.

With Manual Shift Transmission

1шт.

35

301409A1

HOSE ASSY.

885 mm (35 in)

1шт.

With Power Shift Transmission

1шт.

35

87326311

SPACER

885 mm (35 in)

1шт.

With Power Shift Transmission

1шт.

Arctic QUADTRAC Tractor Application

1шт.

36

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. 9, 39

2шт.

37

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

38

405576A3

TUBE

Piston Pump Supply, Inc. 9, 67

1шт.

With Manual Shift Transmission

1шт.

38

87303782

TUBE,38.10 mm OD

Piston Pump Supply, Inc. 9, 67

1шт.

With Power Shift Transmission

1шт.

39

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

40

87545498

CHECK VALVE

1-1/2, 50 psi - Inc. item #40A

1шт.

40a

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

For item # 40

2шт.

41

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Inc. 42

2шт.

42

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 43 - 45

1шт.

43

H434163

DUST CAP

1шт.

44

NSS

NOT SOLD SEPARAT

Fitting, Diagnostic

1шт.

45

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

46

358968A1

FITTING

M18 orb x 1,5, Diagnostic, Inc. 47

1шт.

47

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

48

337481A1

VALVE

Priority, See Figure 08-28

1шт.

49

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 2, 20

1шт.

50

87441927

HOSE ASSY.

622mm (24-1/2 in)

1шт.

50

87346305

HOSE

622mm (24-1/2 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

51

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

52

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 2, 20

1шт.

53

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

54

396490A1

U-BOLT

BOLT "U" M8

2шт.

55

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

M20 fc sl x 2,7 orb, Inc. 56, 31

1шт.

56

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

57

87434200

BRACKET

Valve

1шт.

58

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 9, 45

1шт.

59

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

60

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 9, 39

2шт.

61

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Inc. 9

2шт.

62

87434311

HOSE ASSY.

535mm (21-11/16 in), Destroke Outlet to Piston Pump Compensator

1шт.

62

87346310

HOSE

535mm (21-11/16 in), Destroke Outlet to Piston Pump Compensator

1шт.

Arctic QUADTRAC Tractor Application

1шт.

63

300209A1

VALVE

Shuttle

1шт.

64

87304198

HOSE ASSY.

610mm (24 in), to Destroke Valve Sense Port

1шт.

64

87346304

HOSE

610mm (24 in), to Destroke Valve Sense Port

1шт.

Arctic QUADTRAC Tractor Application

1шт.

65

201-125

HYD CONNECTOR,11/16"-16 ORFS x 7/16"-20 ORB

Incl. 9, 45

1шт.

66

87303880

HOSE ASSY.

508mm (20 in), to Destroke Valve Drain Port

1шт.

66

87346308

HOSE

508mm (20 in), to Destroke Valve Drain Port

1шт.

Arctic QUADTRAC Tractor Application

1шт.

67

701-900

CAP,11/16" - 16

Cap

1шт.

68

87304199

HOSE ASSY.

812 mm (32 in), Tank Return

1шт.

68

87346300

HOSE

1105 mm (43-1/2 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

69

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

70

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

71

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

72

405574A1

TUBE

1шт.

With Manual Shift Transmission

1шт.

72

413814A2

TUBE

1шт.

With Power Shift Transmission

1шт.

73

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

2шт.
