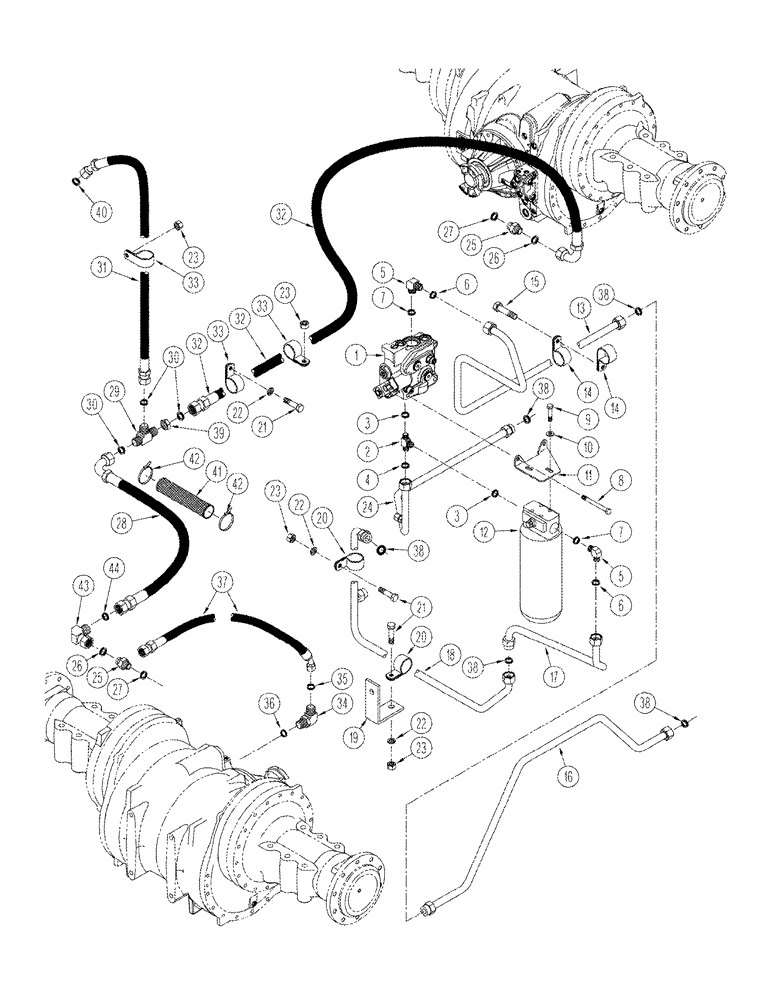

Запчасти Case IH STX425 (08-10) - 500 SERIES AXLE HYDRAULICS - LUBRICATION AND COOLING CIRCUIT, BSN JEE0102001, QUADTRAC TRACTOR (08) - HYDRAULICS

1

411104A2

VALVE

Regulator, See Figure 08-13

1шт.

2

328232A1

TEE

1шт.

3

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

5

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 6, 7

2шт.

6

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

7

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

8

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

3шт.

9

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

10

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

11

413322A1

BRACKET

1шт.

12

86991559

FILTER ASSY

See Figure 08-04

1шт.

13

416712A1

TUBE

1шт.

14

R15257

CLAMP

2шт.

15

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

1шт.

16

416701A1

TUBE

1шт.

17

416699A1

TUBE

1шт.

18

416708A1

TUBE

1шт.

19

417270A1

BRACKET

2шт.

20

515-22254

CLAMP,1", Insul, 5/16" Bolt

3шт.

21

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

24

416703A1

TUBE

1шт.

25

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. 26, 27

2шт.

26

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

27

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

28

375662A1

HOSE ASSY.

2125 mm (84 in)

1шт.

29

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Inc. 30

1шт.

30

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

31

352111A2

HOSE ASSY.

984 mm (37 in)

1шт.

32

375665A3

HOSE ASSY.

2381 mm (94 in)

1шт.

33

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

3шт.

34

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 35, 36

1шт.

35

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

36

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

37

437144A1

HOSE ASSY.

1733 mm (68 in)

1шт.

38

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

5шт.

39

701-903

NUT,13/16" - 16

1шт.

40

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

41

S120426

TUBE

1шт.

42

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

43

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 44

1шт.

44

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
