Запчасти Case IH STX425 (08-08[01]) - 500 SERIES AXLE HYDRAULICS - AIR AND LUBRICATION CIRCUIT, ASN JEE0102001, WHEEL TRACTOR (08) - HYDRAULICS

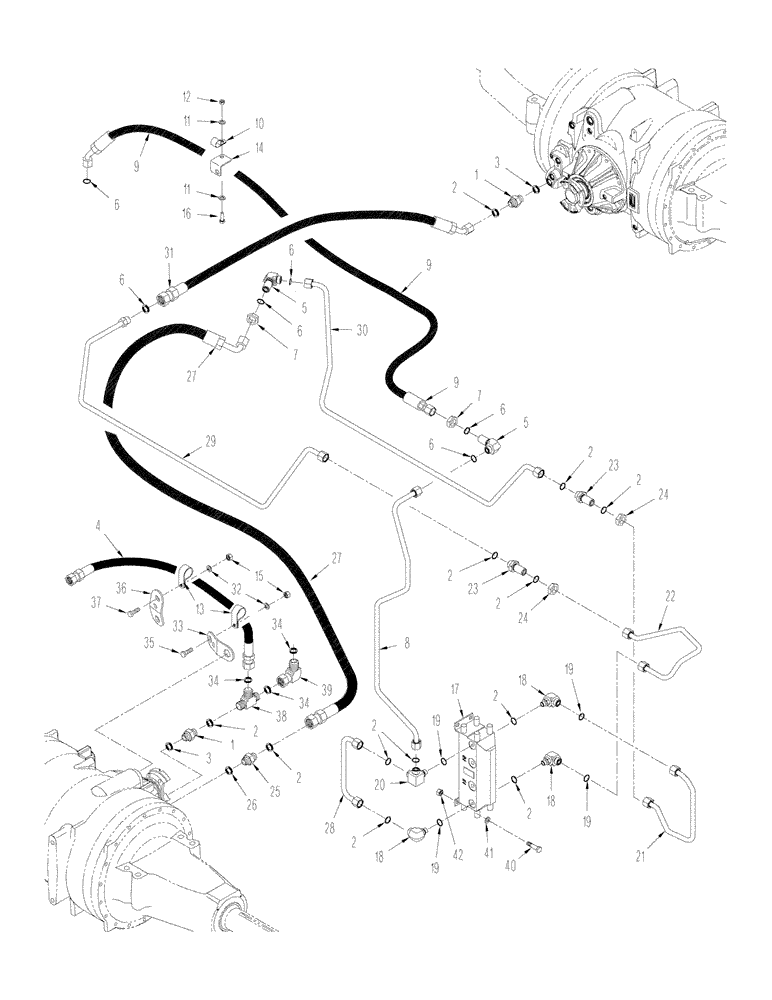

Схема запчастей Case IH STX425 - (08-08[01]) - 500 SERIES AXLE HYDRAULICS - AIR AND LUBRICATION CIRCUIT, ASN JEE0102001, WHEEL TRACTOR (08) - HYDRAULICS
2
14
16
6
20
36
11
1
3
21
19
13
25
35
39
34
6
32
12
2
9
42
11
34
6
23
2
23
7
24
9
2
19
38
40
6
27
2
37
2
7
5
5
31
24
2
33
8
19
34
28
6
15
6
2
2
27
29
18
18
4
19
22
18
3
26
10
30
2
1
9
17
2
41

Артикул

Название

Примечание

Количество

1

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 2, 3

2шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

12шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

436864A1

HOSE ASSY.

2019 mm (79 in)

1шт.

5

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 6, 7

2шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

7

701-903

NUT,13/16" - 16

1шт.

8

449821A2

TUBE

1шт.

9

86992953

HOSE ASSY.

1715 mm (67-1/2 in)

1шт.

10

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

3шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

13

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

3шт.

14

416102A1

SUPPORT

Bracket

1шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

7шт.

16

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

17

434727A1

MOTOR-PUMP

Axle Air / Lube

2шт.

18

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 2, 19

3шт.

19

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

3шт.

20

450905A1

TEE

Special, 1/2 or x fc sl, Inc. 2, 19

1шт.

21

449817A2

TUBE

1шт.

22

86992542

TUBE,12.70 mm OD

1шт.

23

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 2

2шт.

24

701-903

NUT,13/16" - 16

2шт.

25

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2, 26

1шт.

26

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

27

87400117

HOSE ASSY.,12.7mm ID x 2299mm L

2299 mm (90-1/2 in)

1шт.

Used On Applications Without PTO

1шт.

28

449794A1

TUBE

1шт.

29

449825A1

TUBE

1шт.

30

449823A1

TUBE

1шт.

31

86993937

HOSE ASSY.

1194 mm (47 in)

4шт.

32

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

33

417271A1

BRACKET

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

35

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

36

417272A1

BRACKET

1шт.

37

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

38

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

M12 x 13/16 fc sl, Inc. 34

1шт.

39

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 34

1шт.

40

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

41

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

42

829-1310

NUT,M10, Cl 10

4шт.
