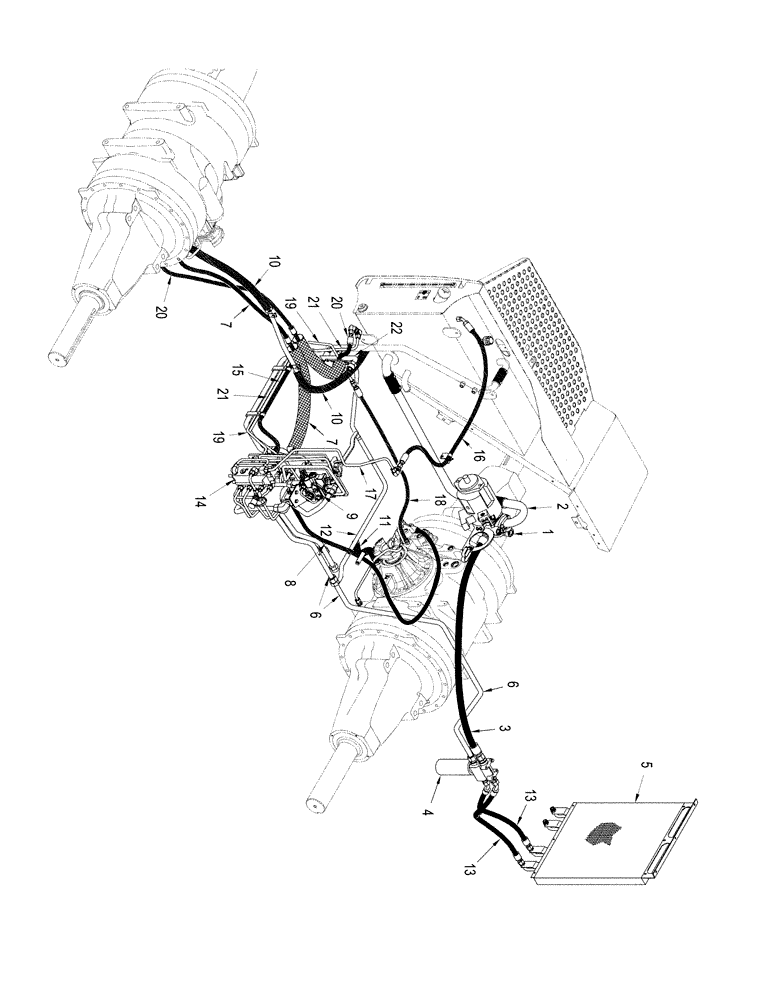

Запчасти Case IH STX425 (01-06[03]) - PICTORIAL INDEX - AXLE LUBRICATION CIRCUIT, 500 SERIES AXLE, WHEEL TRACTOR (00) - PICTORIAL INDEX

1

Pump, Gear, See Figure 08-27

1шт.

2

Tube, Gear Pump Supply, See Figure 08-20, 08-24

1шт.

3

Hose, Gear Pump To Filter, See Figure 08-20, 08-24

1шт.

4

Filter, Right-Hand, See Figure 08-03

1шт.

5

Cooler, Hydraulic Oil, See Figure 08-02

1шт.

6

Tube, Filter To Regulator Valve, See Figure 08-08 (02)

1шт.

7

Hose, Regulator Supply To Rear Axle, See Figure 08-07 (02)

1шт.

8

Hose, Regulator Valve Supply To Front Axle, See Figure 08-07 (02)

1шт.

9

Valve, Regulator, See Figure 08-13

1шт.

10

Hose, Rear Axle Return To Tank, See Figure 08-07 (02)

1шт.

11

Hose, Front Axle Return to Tank, See Figure 08-07 (02)

1шт.

12

Tube, Return, See Figure 08-07 (02)

1шт.

13

Hose, Filter To Cooler, See Figure 08-01

1шт.

14

Pump, Axle Air / Lube, See Figure 08-07 (02)

1шт.

15

Hose, Regulator Valve Return To Tank, See Figure 08-07 (02)

1шт.

16

Hose, Air Supply, See Figure 08-08 (01)

1шт.

17

Tube, Air Supply, See Figure 08-08 (01)

1шт.

18

Hose, Front Axle Air / Lube Supply, See Figure 08-08 (01)

1шт.

19

Tube, Front Axle Air / Lube Supply, See Figure 08-08 (01)

1шт.

20

Hose, Rear Axle Air / Lube Supply, See Figure 08-08 (01)

1шт.

21

Tube, Rear Axle Air / Lube Supply, See Figure 08-08 (01)

1шт.

22

Tube, Charge Return to Filter, See Figure 08-08 (01)

1шт.
