Артикул
Название
Примечание
Количество
86985668
FRONT AXLE
HD W/Diff Lock
1шт.
86985668R
REMAN-FRONT AXLE w/D
HD W/Diff Lock
1шт.
86985668C
CORE-FRT AXLE W/DIFF
Return Number
1шт.
86985669
REAR AXLE
HD W/Diff Lock
1шт.
86985669R
REMAN-RR AXLE W/DI
HD W/Diff Lock
1шт.
86985669C
CORE-REAR AXLE W/DI
Return Number
1шт.
361386A1
AXLE, FRONT
QT Axle W/Diff Lock, Serial Range: -JEE0106701
1шт.
87423305
FRONT AXLE
QT Axle W/Diff Lock, Start Serial: JEE0106701
1шт.
87423305R
REMAN-AXLE
QT Axle W/Diff Lock
1шт.
87423305C
CORE-FRT AXLE w/DL
Return Number
1шт.
361387A1
AXLE, REAR
QT Axle W/Diff Lock, Serial Range: -JEE0106701
1шт.
87423306
REAR AXLE
QT Axle W/Diff Lock, Start Serial: JEE0106701
1шт.
87423306R
REMAN-REAR AXLE 4WD
QT W/Diff Lock
1шт.
87423306C
CORE-REAR AXLE W/DI
Return Number
1шт.

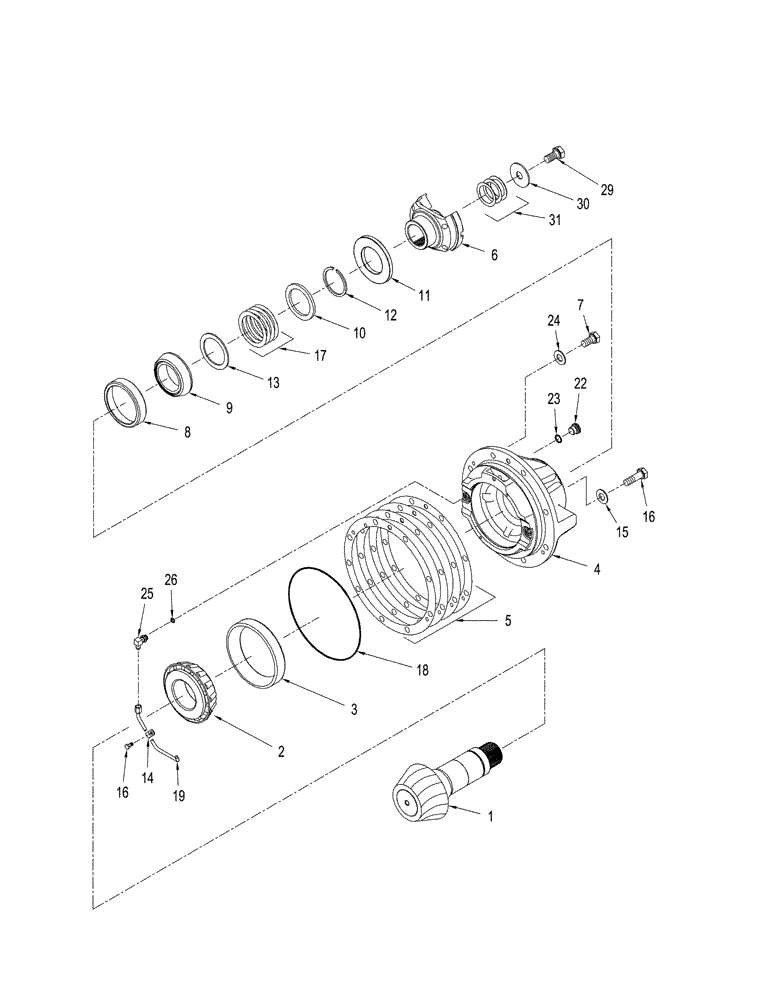

352212A2
GEAR SET
Pinion Shaft and Gears, Inc. 1, See Figure 06-77, 06-78
1шт.
1
NSS
NOT SOLD SEPARAT
Shaft, Pinion
1шт.
2
248118A1
TAPERED BEARING,88.9125 mm ID x 52.8625 mm
1шт.
3
248114A1
BEARING, CUP,200.01mm OD x 34.82mm W
1шт.
4
328422A5
COVER
1шт.
5
279714A4
SHIM,288mm ID x 363mm OD x 0.076mm Thk
1шт.
5
279715A4
SHIM,288mm ID x 363mm OD x 0.102mm Thk
1шт.
5
279716A4
SHIM,288mm ID x 363mm OD x 0.127mm Thk
1шт.
5
279717A4
SHIM,288mm ID x 363mm OD x 0.508mm Thk
1шт.
6
284185A1
YOKE
UNIVERSAL JOINT YOKE 8,5 C
1шт.
7
828-16055
BOLT,Hex, M16 x 2 x 55mm, Cl 10.9
8шт.
8
191440A1
BEARING CUP,140 mm OD x 28.4734 mm
1шт.
9
67190R91
BEARING ASSY,82.5627 mm ID x 36.6135 mm
1шт.
10
229515A1
RING, SNAP
RING SNAP M4
1шт.
11
87432424
OIL SEAL
1шт.
12
228968A2
SPACER
Thick
1шт.
13
191713A1
SPACER
Thin
1шт.
14
515-2279
CLAMP,5/16", Insul, 5/16" Bolt
(M7.9)
1шт.
15
95-31038
WASHER,5/16"
3/4 x 1-1/8 x 1/16
3шт.
16
628-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd
4шт.
17
191709A1
SHIM,0.076mm Thk
1шт.
17
191711A1
SHIM,0.101mm Thk
1шт.
17
191712A1
SHIM,0.130mm Thk
1шт.
17
220785A1
SHIM,84mm ID x 110mm OD x 0.5mm Thk
1шт.
18
238-5276
O-RING,0.139" Thk x 10.984" ID, -276, Cl 5, 75 Duro
1шт.
19
313377A1
PIPE
Lubrication
1шт.
20
221578A1
PLUG,M18 x 1.5 ORB
Not Illustrated, Includes 21
1шт.
STX Wheel Tractor
1шт.
21
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
22
221573A1
PLUG,Hex Soc, M12 x 1.5, ORB
M12 orb x 13, Incl. 23
1шт.
QUADTRAC Tractor
1шт.
23
637-63093
O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro
1шт.
24
896-12016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
8шт.
25
218-5284
ELBOW,90 Degree, 1/2"-20, 37 Degree x 9/16"-18, O-Ring
5/16 x 3/8, Inc. 26, Serial Range: -JEE0102001
1шт.
25
86985636
ELBOW
Orificed, 5/16 x 3/8, Inc. 26, Start Serial: JEE0102001
1шт.
26
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
27
9625178
PLUG,9/16" - 18 ORB
3/8 Or, Not Illustrated, Incl. 28
1шт.
STX Wheel Tractor
1шт.
28
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
29
828-24110
BOLT,Hex, M24 x 3 x 110mm, Cl 10.9
1шт.
30
228967A2
WASHER,25mm ID x 78mm OD x 10mm Thk
1шт.
31
178545A1
SHIM,25mm ID x 60mm OD x 0.076mm Thk
1шт.
31
178546A1
SHIM,25mm ID x 60mm OD x 0.101mm Thk
1шт.
31
178547A1
SHIM,25mm ID x 60mm OD x 0.130mm Thk
1шт.
31
220779A1
SHIM,25mm ID x 60mm OD x 0.5mm Thk
1шт.
Выбрано товаров: 59
