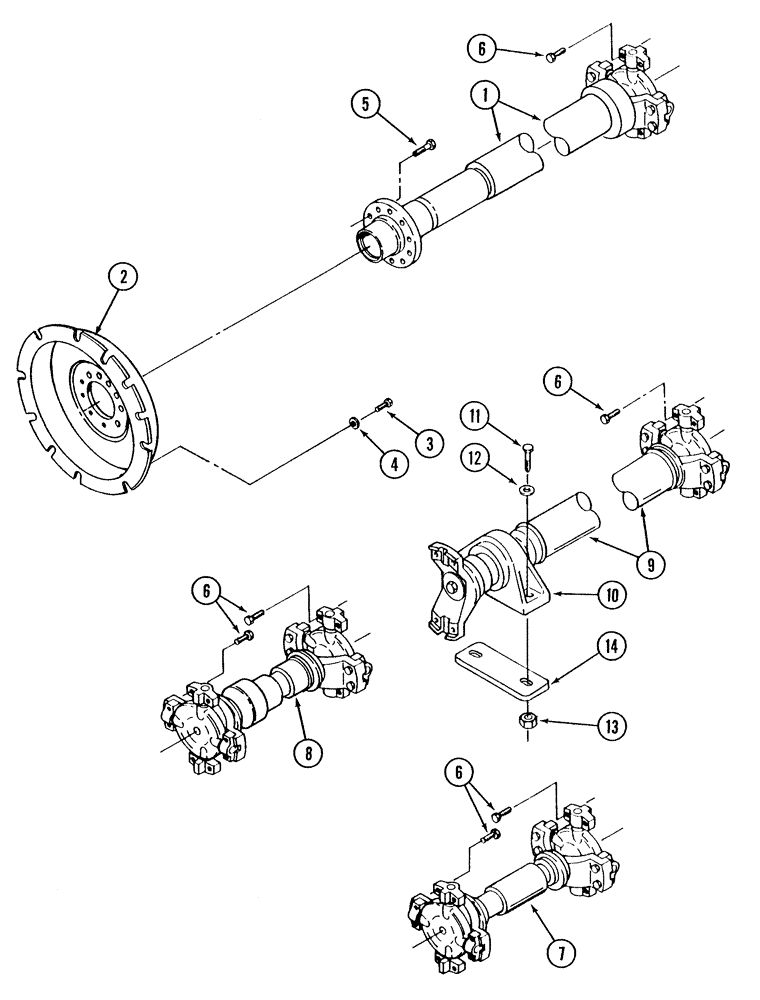

Запчасти Case IH STX425 (06-53) - DRIVE SHAFT - MOUNTING (06) - POWER TRAIN

1

402185A1

DRIVE SHAFT

Input, 8C, See Figure 06-54

1шт.

With 400 Series Axles

1шт.

With Manual Shift Transmission

1шт.

1

402190A1

DRIVE SHAFT

Input, 8,5C, See Figure 06-54

1шт.

With 500 Series Axles

1шт.

With Manual Shift Transmission

1шт.

1

402184A1

DRIVE SHAFT

Input, 8C, See Figuure 06-54

1шт.

With 400 Series Axles

1шт.

With Power Shift Transmission

1шт.

1

402189A1

DRIVE SHAFT

Input, 8C, see Figure 06-54

1шт.

With 500 Series Axles

1шт.

With Power Shift Transmission

1шт.

2

378758A2

DAMPER

Vibration

1шт.

3

80-1716

12 PT SCREW,Flg, 7/16" - 14 x 1", Gr 8

Gr 8

12шт.

4

496-81010

WASHER

11 x 21 x 2,5 mm

12шт.

5

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

10шт.

6

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

24шт.

With 400 Series Axles

1шт.

6

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

24шт.

With 500 Series Axles

1шт.

7

402186A1

DRIVE SHAFT

Front Axle, 8C, See Figure 06-54

1шт.

With 400 Series Axles

1шт.

7

402191A1

DRIVE SHAFT

Front Axle, 8,5C, See Figure 06-54

1шт.

With 500 Series Axles

1шт.

8

402187A1

DRIVE SHAFT

Articulation, 8C, See Figure 06-54

1шт.

With 400 Series Axles

1шт.

8

402192A1

DRIVE SHAFT

Articulation, 8,5C, See Figure 06-54

1шт.

With 500 Series Axles

1шт.

9

402188A1

DRIVE SHAFT

Rear Axle, 8C, See Figure 06-54

1шт.

With 400 Series Axles

1шт.

9

402193A1

DRIVE SHAFT

Rear Axle, 8,5C, See Figure 06-54

1шт.

With 500 Series Axles

1шт.

10

451767A1

BEARING CARRIER

Pillow Block, See Figure 06-54

1шт.

11

827-20250

BOLT,Hex, M20 x 2.5 x 250mm, Cl 10.9

2шт.

12

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm

2шт.

13

829-1420

NUT,M20, Cl 10

2шт.

14

406056A1

SPACER

1шт.
