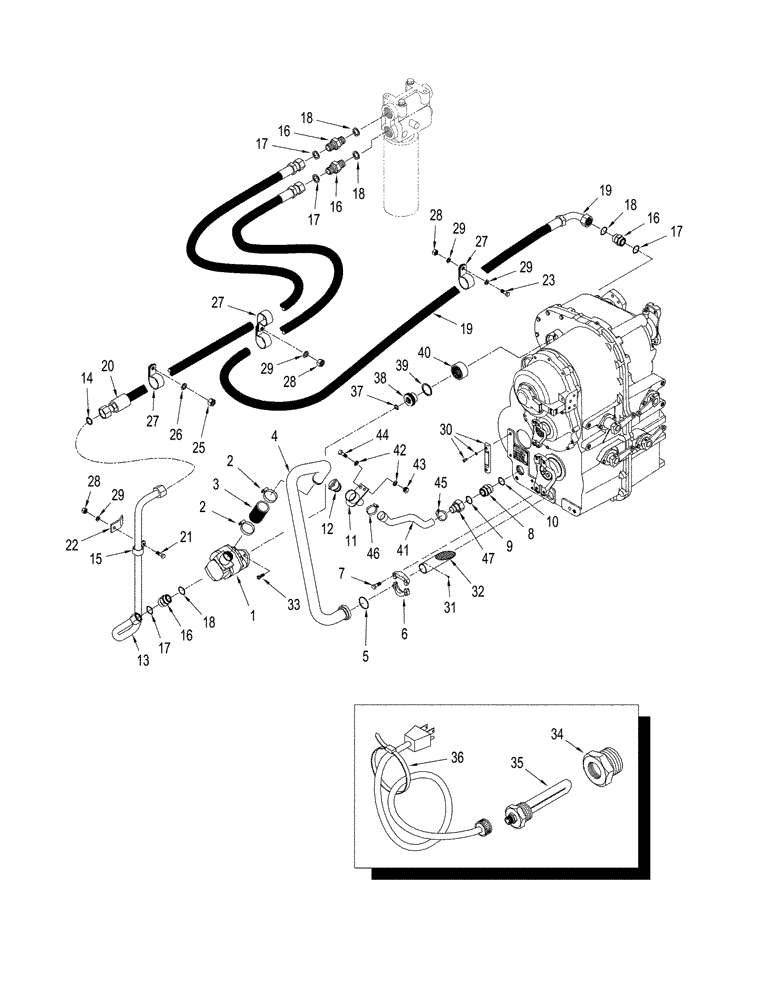

Запчасти Case IH STX425 (06-18) - TRANSMISSION - LUBRICATION, WITH MANUAL SHIFT TRANSMISSION (06) - POWER TRAIN

1

370546A1

PUMP

Oil

1шт.

1

84176413R

REMAN-HYD PUMP

Reman for New PN 370546A1

1шт.

1

84176413C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

2

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

2шт.

3

435454A1

HOSE,50.80 mm ID x 152.40 mm

Cut from Bulk

1шт.

4

418735A1

TUBE

1шт.

5

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

6

A14141

FLANGE

2шт.

7

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

8

700-133

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Inc. 9, 10

1шт.

9

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

10

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

11

414480A2

TUBE

Transmission Fill

1шт.

12

325737A1

CAP

1шт.

13

438240A1

TUBE

Inc. 14, 15

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

15

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

16

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 17, 18

4шт.

17

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

18

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

19

402010A1

HOSE ASSY.

1811 mm (71-5/16 in), Supply

1шт.

19

437255A1S

HOSE ASSY.

1811 mm (71-5/16 in), Supply, Arctic QUADTRAC Tractor Application

1шт.

20

441327A1

HOSE ASSY.,25.4mm ID x 2159mm L

2565 mm (101 in), Outlet

1шт.

20

437254A1S

HOSE ASSY.

2665 mm (101 in), Outlet, Arctic QUADTRAC Tractor Application

1шт.

21

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

Incl. 31, 32

2шт.

22

416102A1

SUPPORT

1шт.

23

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

24

324089A1

PLATE ASSY.

2шт.

25

829-1310

NUT,M10, Cl 10

2шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

27

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

8шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

30

L116247

GAUGE

Inc. Hardware

1шт.

31

S14701960

BALL,3.968mm OD

1шт.

32

370551A1

TUBE

1шт.

33

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

186135A1

KIT

Transmission Heater, Inc. 32 - 34

1шт.

34

367930A1

ADAPTER,M42 x 2 NPT

1шт.

35

385486A1

HEATER ASSY.

With Cord

1шт.

36

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

5шт.

37

427516A1

RING, SNAP

RING SNAP

1шт.

38

427523A1

ADAPTER

1шт.

39

800-2150

SNAP RING,M50, Int

1шт.

40

427521A1

COUPLING

1шт.

41

419491A3

HOSE

1шт.

42

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

43

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

44

827-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9

M10 x 35; 10.9

2шт.

45

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

46

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.

47

429193A1

TUBE

1шт.
