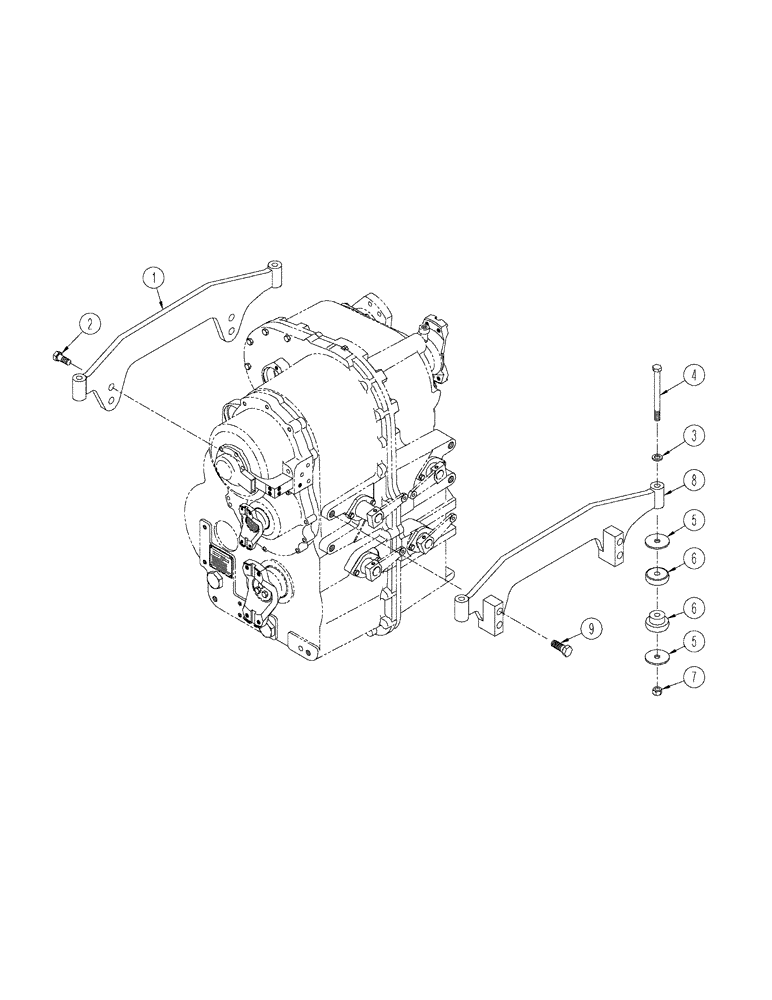

Запчасти Case IH STX425 (06-16) - TRANSMISSION MOUNTING, MANUAL SHIFT TRANSMISSION (06) - POWER TRAIN

300942A1

TRANSMISSION

Manual, 12 SPD

1шт.

7C Yoke

1шт.

300943A1

TRANSMISSION

Manual, 12 SPD

1шт.

8C Yoke

1шт.

300944A1

TRANSMISSION

Manual, 12 SPD

1шт.

8.5C Yoke

1шт.

300945A1

TRANSMISSION

Manual, 24 SPD

1шт.

7C Yoke

1шт.

300946A1

TRANSMISSION

Manual, 24 SPD

1шт.

8C Yoke

1шт.

300947A1

TRANSMISSION

Manual, 24 SPD

1шт.

8.5C Yoke

1шт.

1

388851A1

PLATE

Mounting

1шт.

2

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

8шт.

3

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

4шт.

4

828-22190

BOLT,Hex, M22 x 2.5 x 190mm, Cl 10.9

4шт.

5

379611A1

WASHER

8шт.

6

340967A1

RUBBER MOUNTING

4шт.

7

832-10422

NUT,M22 x 2.5, Cl 8

4шт.

8

397581A1

PLATE

Mounting

1шт.

9

827-20120

BOLT,Hex, M20 x 2.5 x 120mm, Cl 10.9

4шт.
