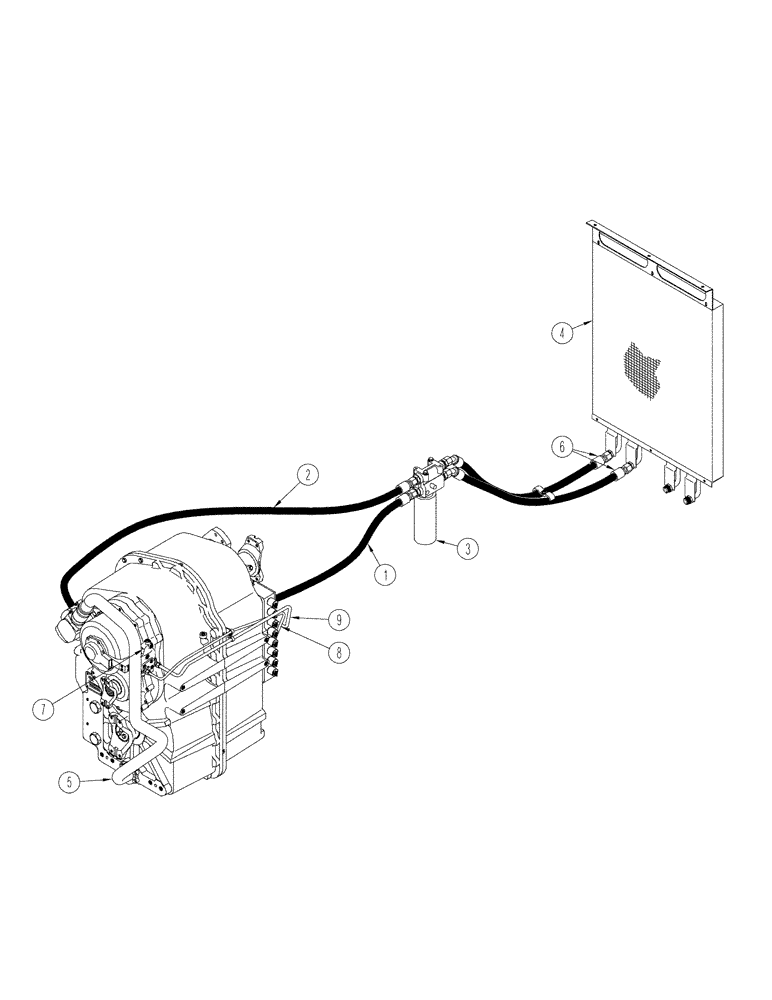

Запчасти Case IH STX425 (01-02) - PICTORIAL INDEX - POWER SHIFT TRANSMISSION AND PTO CLUTCH LUBE (00) - PICTORIAL INDEX

1

Hose, Transmission Regulator Valve Supply, See Figure 06-19

1шт.

2

Hose, Pump To Filter, See Figure 06-19

1шт.

3

Filter, Left Hand, See Figure 08-04

1шт.

4

Cooler, Hydraulic Oil, See Figure 08-02

1шт.

5

Tube, Transmission Pump Supply, See Figure 06-19

1шт.

6

Hose, Cooler Supply And Outlet, See Figure 08-01

1шт.

7

Valve Assembly, PTO Control, See Figure 06-52

1шт.

8

Tube, PTO Valve Pressure Supply, See Figure 06-21

1шт.

9

Tube, PTO Valve Lube Supply, See Figure 06-21

1шт.
