Запчасти Case IH STX380 (88.090.01) - DIA KIT, DECELERATOR - 2006 RETRO (88) - ACCESSORIES

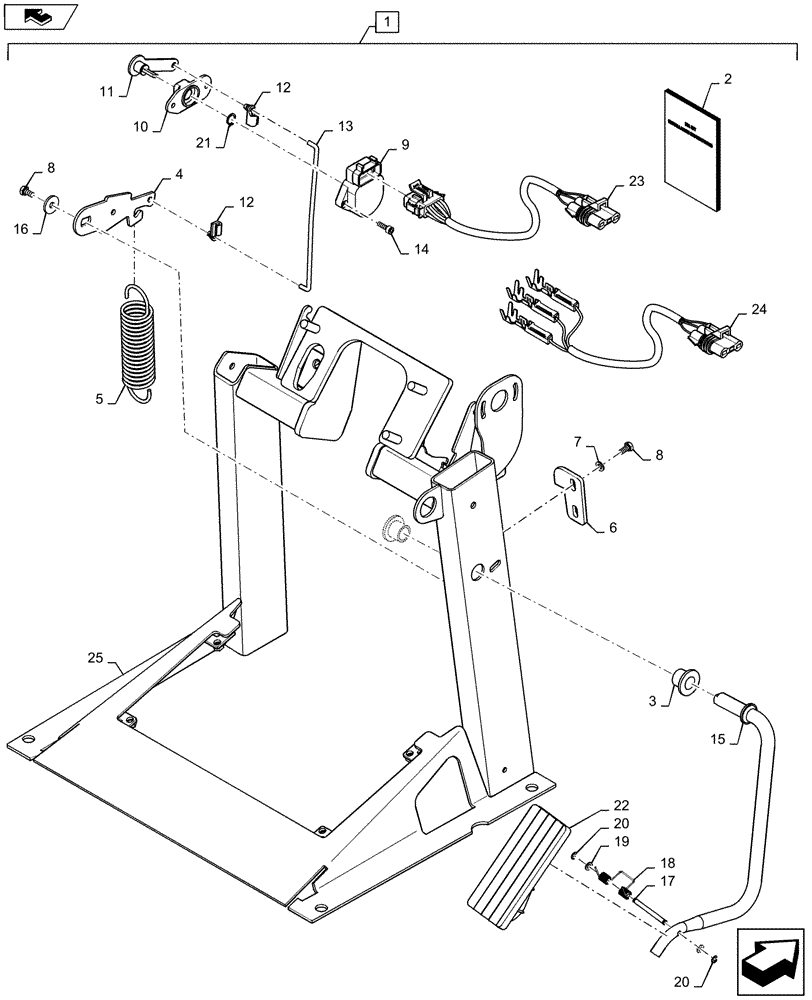

Схема запчастей Case IH STX380 - (88.090.01) - DIA KIT, DECELERATOR - 2006 RETRO (88) - ACCESSORIES
20
7
2
21
8
17
18
24
12
25
1
11
19
22
10
13
home
23
3
15
5
12
8
16
14
4
6
9
20

Артикул

Название

Примечание

Количество

1

710279006

KIT

Decelerator - 2006 Retro, Incl 2 - 25

1шт.

2

87656246

INSTRUCTION

Decel Pedal 2006, Installation Kit

1шт.

3

300891A1

FLANGED BEARING

Bearing

2шт.

4

248844A1

LEVER

1шт.

5

278211A1

SPRING

Extension

1шт.

6

281115A1

BRACKET

Decel Stop

1шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

8

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

3шт.

9

259012A1

POTENTIOMETER,2500 Ohm

1шт.

10

258524A2

BUSHING

Adapter

1шт.

11

313273A2

PIN

Potentiometer

1шт.

12

60-2404T1

RETAINER

2шт.

13

281125A1

ROD

Potentiometer

1шт.

14

864-5016

HEX SOC SCREW,M5 x 16mm, Cl 8.8

2шт.

15

328353A2

ROD

Decelerator

1шт.

16

396-41028

WASHER,.281" x 7/8" x .098", HDN

1шт.

17

255291A1

PIN,5mm OD x 56mm L

Throttle Pad

1шт.

18

256776A1

SPRING

Foot Throttle

1шт.

19

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

20

800-435

CIRCLIP,M5

Ring, External Retaining

2шт.

21

800-1112

SNAP RING,M12, Ext

Retain External Reg Pin

1шт.

22

297853A2

PEDAL

Foot Throttle

1шт.

23

87545500

HARNESS

Decel Pedal Option

1шт.

24

87571658

HARNESS

Decel Pedal Option, 2006 Retro

1шт.

25

87517381

STEERING ASSY

Mount

1шт.

Выбрано товаров: 25
